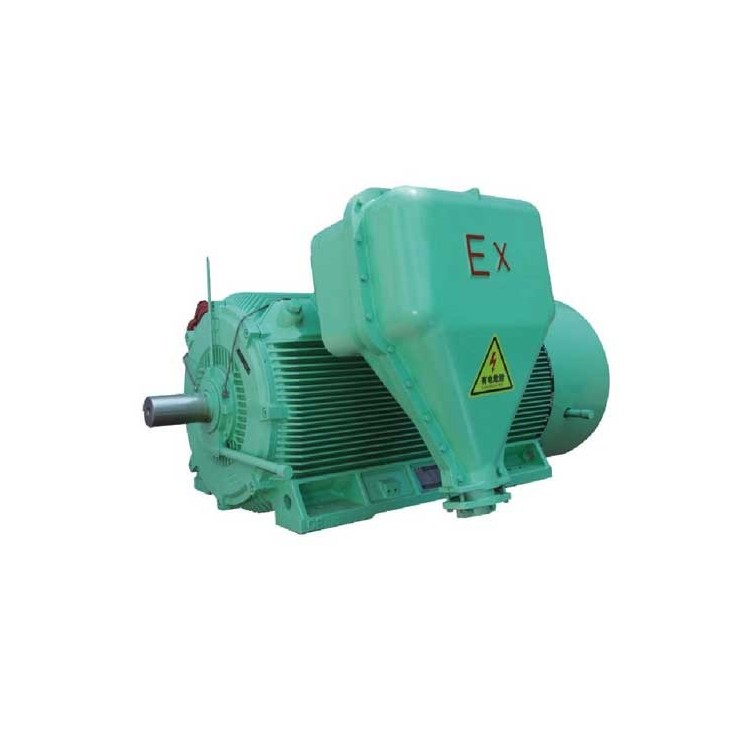

Product Description
　　

1. Base Model No.: 355-710
2. Power Range: 185kW to 2240kW
3. Voltage: 3,000V to 11,000V
Frequency: 50Hz, 60Hz
5. Pole Number: 2P-12P
6. Heat Rating: 155°F
7. Temperature Rise Limit: 80K (B Class), 105K (F Class) (highest power rating for each seat number and pole number)
8. Vibration Speed: 2.3 mm/s
9. Efficiency: Level 1 energy efficiency. Compliant with GB30254-2013 "Energy Efficiency Limit Values and Energy Efficiency Grades for High-Voltage Three-Phase Squirrel-Cage Induction Motors"

Energy Efficiency Level 1.
Cooling Method: IC411

Installation Method: IMB3 (also available in IMB35, IMV1)
12. Protection Level: IP55
13. Operating Mode: S1
14. Explosion Proof Level: Exd ⅡB T4 Gb
15. Environment: Temperature -20℃ to +40℃, Altitude not exceeding 1000m
16. Indoor (Standard Configuration)
Optional: Outdoor (W), Outdoor Medium Corrosion Resistance (WF1), Outdoor High Corrosion Resistance (WF2), Indoor Medium Corrosion Resistance

Corrosion (F1), Indoor Corrosion Resistance (F2), Wet Tropical (TH), Dry Tropical (TA), Outdoor Wet Tropical (THW)

Outdoor Dry Tropical (TAW)
