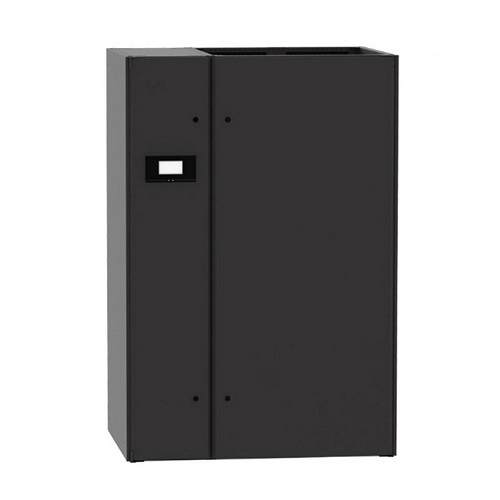

(60KW-120KW) Precision Air Conditioner | Constant Temperature and Humidity Air Conditioner is specifically designed for the high latent heat environment requirements of medium and large-scale machine rooms, data centers, sub-stations, and other electronic equipment, combining today's machine room air conditioning product
Multiple advantages, developed high-performance precision air conditioner. The unit features large air volume, small enthalpy difference, constant temperature and humidity, and continuous operation 365 days a year, 24 hours a day, with characteristics of high efficiency, energy-saving, stability, and long service life.
Can meet the environmental air conditioning needs of various industries.
| Technical Specifications | DM60 | DM70 | DM80 | DM90 | DM100 | DM110 | DM120 |
| Cooling Capacity | 60kW | 70kW | 80kW | 90kW | 100kW | 110KW | 120KW |
| Cooling Method | Air-cooled | ||||||
| Airflow Method | Top air supply; Bottom air supply | ||||||
| Power System | 380VAC，50~60Hz | ||||||
| Air Volume | 16650m3/h | 17240m3/h | 21000m3/h | 22600m3/h | 24800m3/h | 26400m3/h | 28000m3/h |
| Heating Quantity | 9kW | 12kW | 14KW | ||||
| Moisture Content | 10kg/h | ||||||
| Full Load Current | 61A | 67A | 77A | 82A | 87A | 92A | 97A |
| Communication Interface | RS485，ModBus-RTU | ||||||
| Protection Features | Overvoltage, undervoltage, phase loss, phase reversal | ||||||
| Protection Grade | IP20 | ||||||
| Installation Method | Vertical Installation | ||||||
| Engine assembly weight | 690kg | 730kg | 770kg | 808kg | 810kg | 830kg | 850kg |
| Unit Size (Height x Width x Depth) | 1975*1830*995（mm） | 1975*2230*995（mm） | |||||
| Operating Environment | 0℃~40℃，30%RH~80%RH | ||||||
| Altitude | ＜1000m, reduced rate for over 1000m | ||||||
