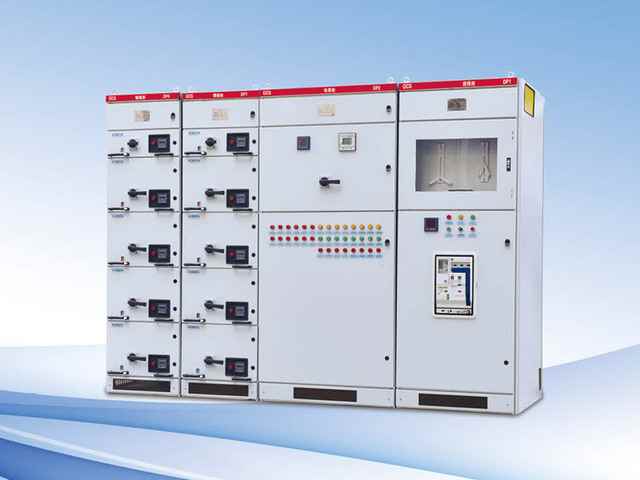

GCS Low-Voltage Extractable Switchgear | Distribution Panels for Power Plants, Oil, Chemicals, Metallurgy, Textile, High-Rise Buildings, etc. Industry Power Systems. Suitable for locations with high automation, such as large power plants and petrochemical systems, requiring computer interface.
Low-voltage complete distribution equipment for distribution, centralized control of motors, and reactive power compensation in power and supply systems with a three-phase AC frequency of 50 (60) Hz, rated working voltage of 380V-400V1, (660V), and rated current of 4000A or less.

GCS Low-Voltage Extractable Switchgear | Distribution Box Performance Specifications:

◆ The design of the equipment conforms to the following standards
IEC 439-1 Low-voltage switchgear and controlgear
◆GB7251
Low-voltage complete switchgear equipment:
◆ ZBK360001 Low-voltage Extraction Type Complete Switchgear Equipment.

GCS Low-Voltage Extractable Switchgear | Distribution PanelPrimary Structure：

◆The main frame is constructed with 8MF type open steel sections, featuring mounting holes with modules of 20mm and 100mm on the two sides of the section, and a central hole with a diameter of 9.2mm for flexible and convenient installation inside.
◆The main frame assembly design includes two types: a fully assembled structure and a welded structure for part of the I-side frame and beams, allowing users to choose.
The functional compartments of the device are isolated from each other, with the compartments divided into functional unit rooms, busbar rooms, and cable rooms. The functions of each room are relatively independent.

◆The horizontal main busbar is arranged in a flat placement behind the cabinet, enhancing its resistance to electromagnetic forces. This is a fundamental measure to ensure the main circuit of the device has high short-circuit strength capability.
The cable compartment design allows for easy up and down cable entry and exit.
◆ Dimensions of Universal Cabinet (mm)
