Our company's electromagnetic heater utilizes the Dutch BEGA electromagnetic induction technology to convert 50-60HZ AC voltage into DC voltage, which is then converted into a high-frequency voltage of 13-18KHZ by the controller. The rapidly changing current through the coil generates a rapidly changing magnetic field. When the magnetic field within the magnetic lines passes through a ferromagnetic core, it produces numerous tiny eddy currents, causing the iron to heat up rapidly, thereby achieving the heating purpose! The ZH series electromagnetic heater employs advanced chip micro-processing technology, offering a robust and durable design that ensures safe and reliable continuous operation. Microcomputer control technology is applied throughout the heating control process, enabling functions such as soft start, soft stop, automatic adjustment of output power, automatic detection program, self-check for heating device operation faults, and diagnosis and protection for abnormal operating conditions. The heating temperature can be pre-set and displayed, significantly reducing production costs. The special design provides higher efficiency with lower energy consumption, saving energy.

Product Advantages:

1. Fast heating speed, preheating time reduced by 2/3 under the same conditions.

2. Actual energy-saving effect can reach over 40%.

3. Continuous operation capability, high output power, and efficiency.

4. The heating process is safe and reliable, with no open flame, no pollution, environmental friendly, and no hidden safety hazards.

5. The exterior temperature of the equipment heating section has been reduced to a level where it is safe to touch, significantly improving the working environment.

6. Digital fault alarm display for easy identification of the cause of the fault and quick resolution.

7. Temperature display controls the heating process.

Performance Overview:

Voltage and Power Characteristics: 210V-260V

2. Thermal efficiency ≥ 5%

3. Utilizes industrial-grade components, subjected to high-temperature aging tests, ensuring reliable operation in a 24/7 industrial environment at 50°C.

4. Features complete electrical isolation and soft start/stop heating mode, easy to connect with thermostats.

5. Multiple coils operate simultaneously on the same heated object without interference.

6. Features short-circuit and open-circuit protection for the heating coil.

7. High-reliability half-bridge series resonant circuit

8. The control panel features three indicator lights: the green and red lights indicate operation, while the yellow light signals a fault.

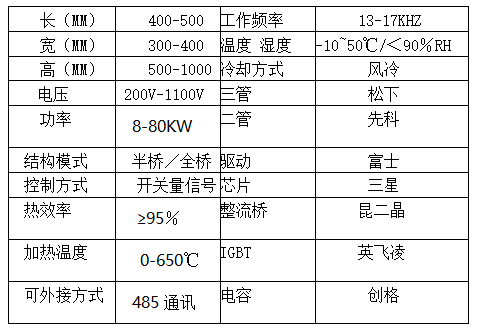

Technical Specifications:
