Detailed Description:
I. Introduction

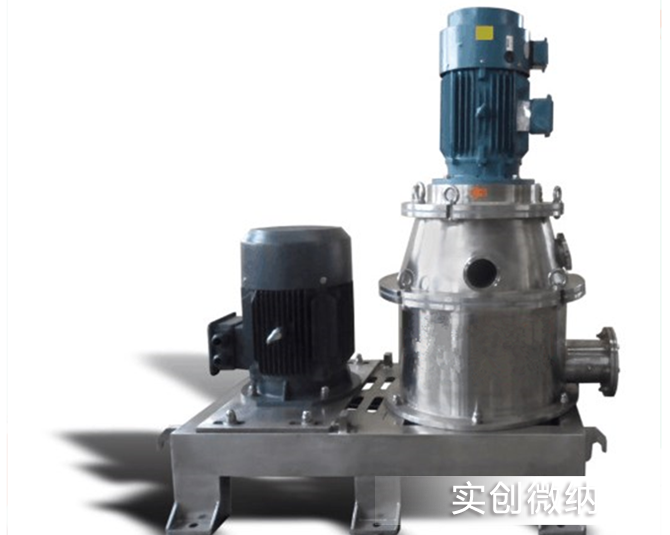

Our companyImpact MillExceedingly finePulverization processingMaterials with Mohs hardness below 5, suitable for processing herbs with roots, stems, and leaves. The machine consists of a feeding system and a high-precision turbine.Grading MachineComprised of adjustable-speed drives replacing traditional sieves, cyclone collectors, dust collectors, high-pressure fans, and electrical control systems, the equipment features low energy consumption, high yield, and fine particle size, with less noise than Raymond mills; compared with otherCrusherComparison: Low energy consumption, easy maintenance; the main engine core components are made of alloy materials, suitable for ultra-fine processing of Chinese herbal medicine (roots, stems, leaves).
II. Features
The particle size is finer than that of ordinary mechanical grinding, equipped with an internal high-efficiency turbine classifier. It offers a narrow particle size distribution, high grading accuracy, and the absence of large particles. The particle size is adjustable between 100 and 2000 mesh.
2. Utilizes air-cooled design, with high air volume during system operation and crushing temperatures below 45°C. Suitable for processing materials with high oil content and adhesiveness, while ensuring the natural properties and quality of the materials.
3. Unique flow field design and consistent gas-solid concentration control ensure short material residence time within the cavity, preventing material adhesion to the inner wall.
4. The design of this series of equipment fully complies with Class GMP standards.
5. Crushing hammer heads and liners are made using special technology and materials, ensuring a long service life.
6. Increased the dust collector filter area, utilizing hydrophobic and oil-repellent coated filter bags with electrostatic protection, effectively preventing dust adhesion.
7. The entire machine operates under full vacuum, enabling automatic slag removal and dust-free operation.
