Rake Grating Cleaning Machine

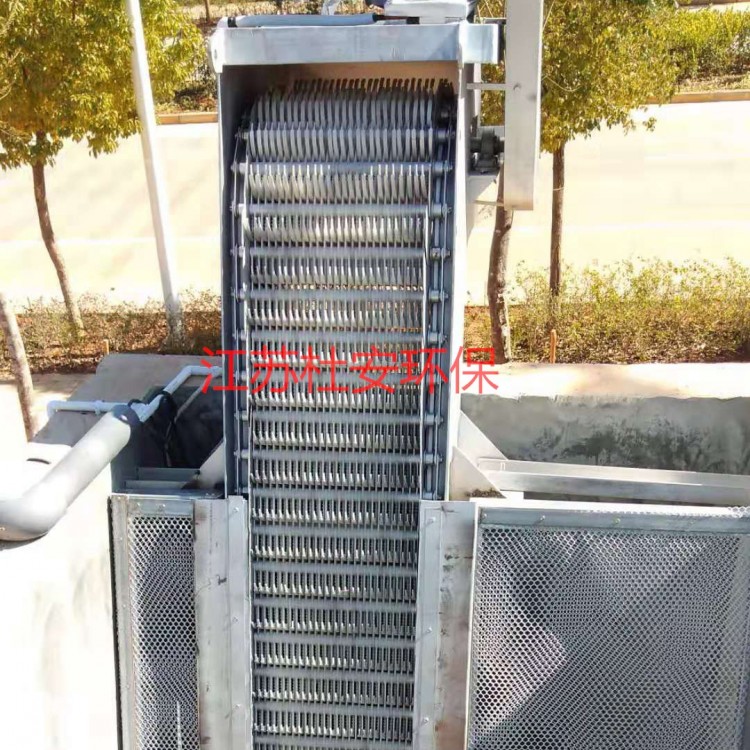

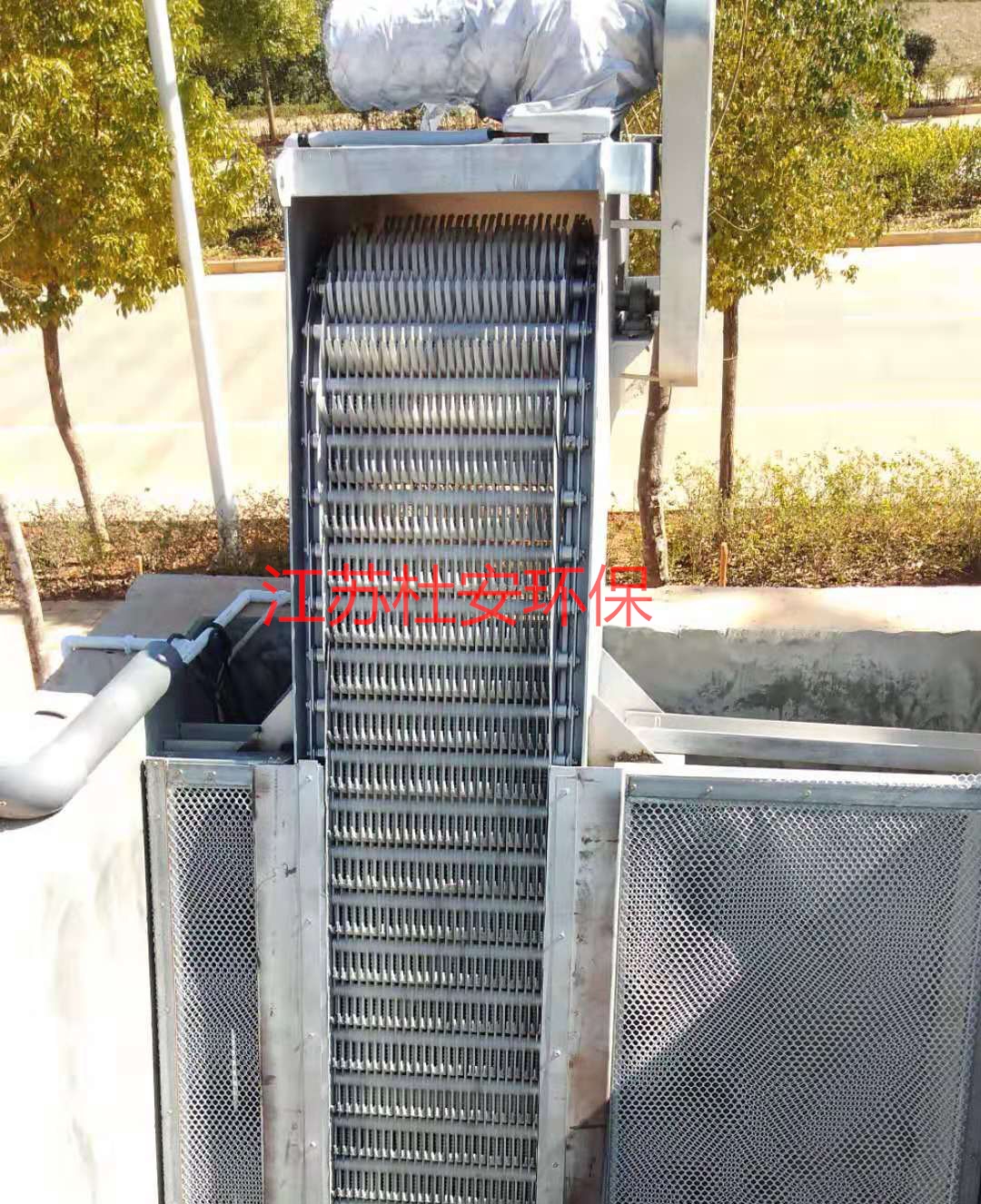

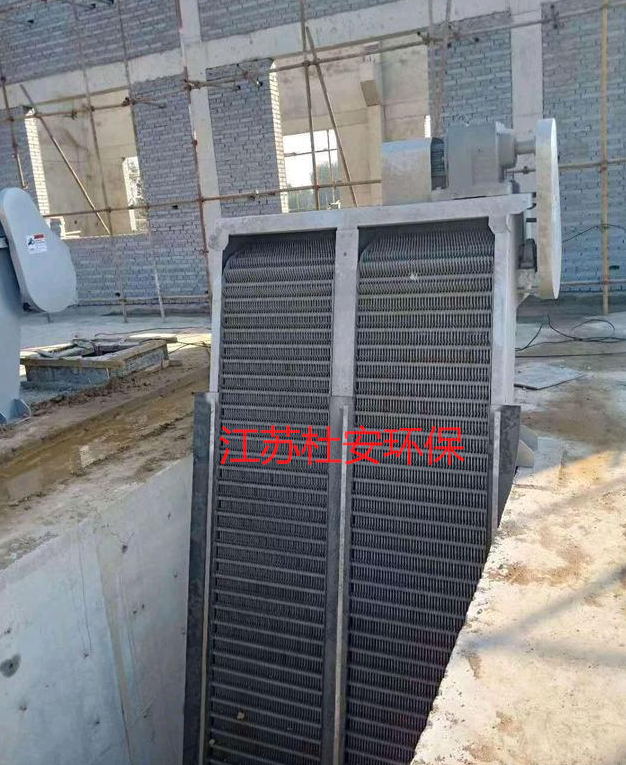

Duwan GSZH-1800 Grating Cleaning Machine
Grate Cleaning Machine - Rotating Main Structure and Working Principle：
Duwan Environmental ProtectionGSZH-1800TypeRotary格栅cleaning machine consists of a frame, a traction chain, a transmission system, and a toothed comb assembly.ACombination RakeBUnderwater guide wheel assembly, underwater auxiliary grille, bars, and other components.
1Main Structure
(1) The grille body features an integrated structure, assembled and debugged on a dedicated platform, and undergoes a trial run without any load.8Hours to factory shipment, ensuring assembly quality, and also simplifying on-site installation workload.
(2) This machine is equipped with an additional movable secondary grate in front of the main grate, which has the same spacing as the main grate. The debris from the movable secondary grate is collected by long rake teeth, effectively preventing debris from the wastewater from slipping through the bottom of the grates and the accumulation of dirt at the bottom.
(3) The chain features a custom-made wide-link stainless steel chain, with a safety factor of no less than6Equipped with a chain wheel tensioning adjustment device. When operating in the chain groove, it can effectively prevent debris from entangling in the groove without the need for additional debris resistance devices, thus avoiding blocking issues.
(4) The transmission mechanism is installed at the top of the frame, utilizing a horizontal helical pinion reducer, equipped with an over-torque protection device (shear pin), effectively preventing damage to the motor and reducer due to overload. Additionally, a protective cover is provided for easy assembly and disassembly.
(5) The cleaning rake teeth come in two forms: long rakes and short rakes. Long rakes are effective for removing large amounts of debris, while short rakes ensure a thorough and clean removal.
(6)The machine is equipped with an overload protection device that automatically shuts down and sounds an alarm in case of mechanical failure or overloading, ensuring a sensitive and reliable system operation.
Revolving齿耙Mechanical Grating Equipment Reliability and Durability
1Uptime of equipment is10000Over 24 hours.
2The overall lifespan of the unit is25More than 1 year.
3The equipment requires an annual maintenance check, with the reducer and bearings having a service life of not less than10Year, electrical equipment not less than3Year, service life of the protective layer is3Over one year.
Corrosion protection for mechanical格栅 equipmentMeasures
1Surface pickling is performed on the stainless steel components after machining.
2Corrosion protection for carbon steel uses zinc-rich primer, mica iron oxide intermediate coating, epoxy topcoat, with a total film thickness of at least 80 micrometers on the water surface.200μmSubmerged portion not less than250μm。
3Prior to packaging, process the machined surfaceGB/T4879Standard requirements include anti-rust treatment.
4During transportation and installation, any damage to the coating must be repaired strictly according to the painting process, ensuring the quality level is not lower than that of the original coating.
Rotary Mechanized Grating Electrical Control System：
The rotary grille cleaner's start and stop are controlled by a time relay or a level difference controller, with a manual control switch on-site. The control box is equipped with the following functions: Motor-protected circuit breakers, contactors, thermal overload relays, start/stop control buttons, start/stop indicator lights, changeover switches, emergency stop buttons, fault alarm indicator lights, with space reserved forPLCControl Interface.
（1） Control cabinet protection gradeIP55Outdoor type, for equipment power distribution and operation control.
（2） The control box is equipped with short-circuit, overcurrent, under-voltage, and overload protection devices.
（3） The remote control of the control box must meet the electrical interface requirements.
（4） The screw conveyor press is linked with the格栅debris separator.
（5） All electrical components areChint orSchneider products.
