TRVVPS

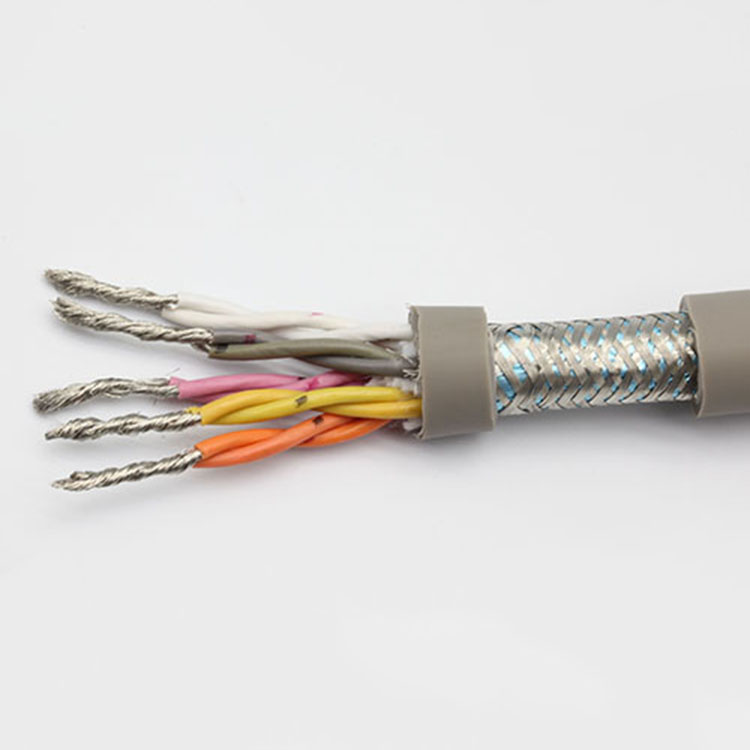

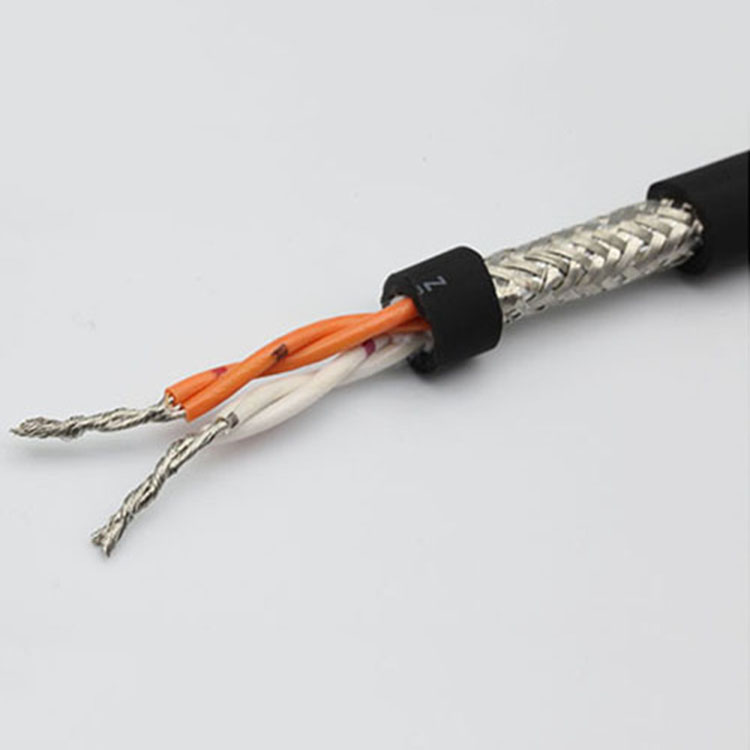

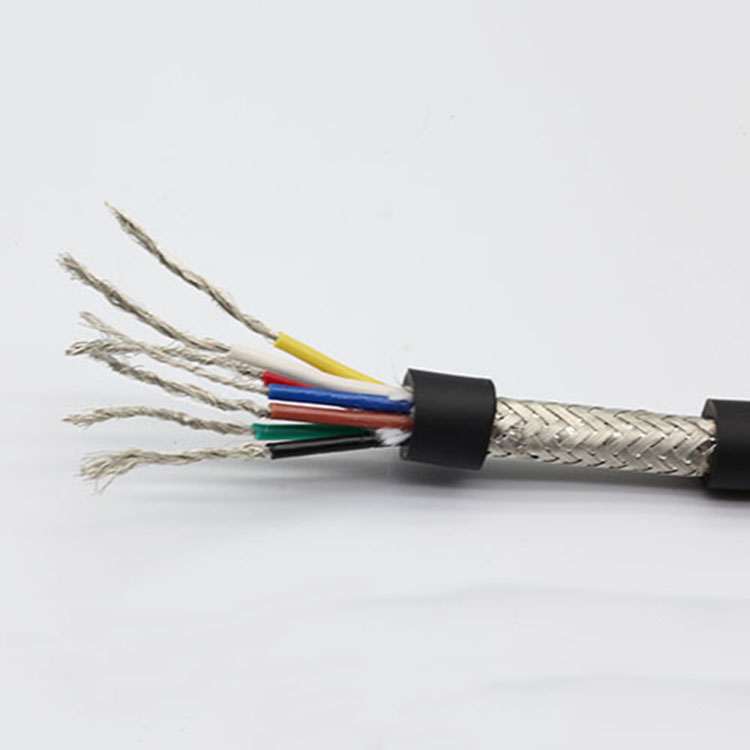

Copper-core PVC-insulated PVC-jacketed Twisted Shielded Drag Chain Soft Cable

Product Features:

Excellent insulating mechanical properties, vivid color options, superior performance, safe to use, and good conductivity.

Product Application:

Modern mechanical standard components in chain conveyors and logistics, control, and automation systems. Places requiring shielding include CNC machine tools, electronic equipment, metal stamping, woodworking and stone machinery, injection molding machines, mechanical (human) hands, construction machinery, heavy machinery factories, automotive manufacturing, and lifting and transportation equipment.

Product Model:

RVVSP: Multi-core copper wire conductor ≥ 0.5mm

Application Standard: GB 60227 IEC (RVV)

Cable Structure:

Conductor: Single copper wire conductor, compliant with GB/T3956, Type 1 solid-core conductor and Type 2 stranded conductor.

Multiple strands of fine copper wire twisted conductor, conforms to GB/T356, 5th type twisted conductor

Insulation: Polyvinyl Chloride (PVC) Insulation, Compliant with GB5023.1 and GB/T8815

Colors: Multiple colors available

Rated Voltage: ＜0.5mm: 300/300V

                  0.5-1.5mm：300/500V

                  ≥1.5mm：450/750V

Test Voltage: 1500V, 2000V, 2500V

Operating Temperature: -10°C to 70°C

Bend Radius:

RVVSP Cable: Fixed Installation: 4xD (Cable Outer Diameter) Mobile Installation: 6xD (Cable Outer Diameter)

Flexible cables are not just soft cables; they should also possess wear-resistant, tensile, and bend-resistant properties. The sheath material commonly used by manufacturers is PVC, along with elastomers like RTH and nitrile. Customizable options include cold-resistant, elastomers, waterproof PE, TPE, TPU, polyurethane, low-smoke halogen-free, flame-retardant, etc. Conductors can be made of oxygen-free copper wire, tin-plated wire, and ultra-fine five-category conductors. Flexible cables not only require specific sheath materials but also feature a cable core structure with a short-distance cabling design, utilizing fine oxygen-free copper wires for short-distance cabling, thereby enhancing the cable's tensile and bend resistance.

Dongguan Jin Xun Yuan Wire & Cable Co., Ltd. is a professional manufacturer and supplier of a wide range of cables, including TRVV, TRVVP, TRVVPS, RVV, RVVP, RVVPS, RV, BVR, BVV, BV, etc. Our company boasts a comprehensive service team, with departments such as Finance, Production, Marketing, Warehouse, and After-Sales Service, dedicated to providing you with timely and effective service needs!
