Mold Monitoring Protector

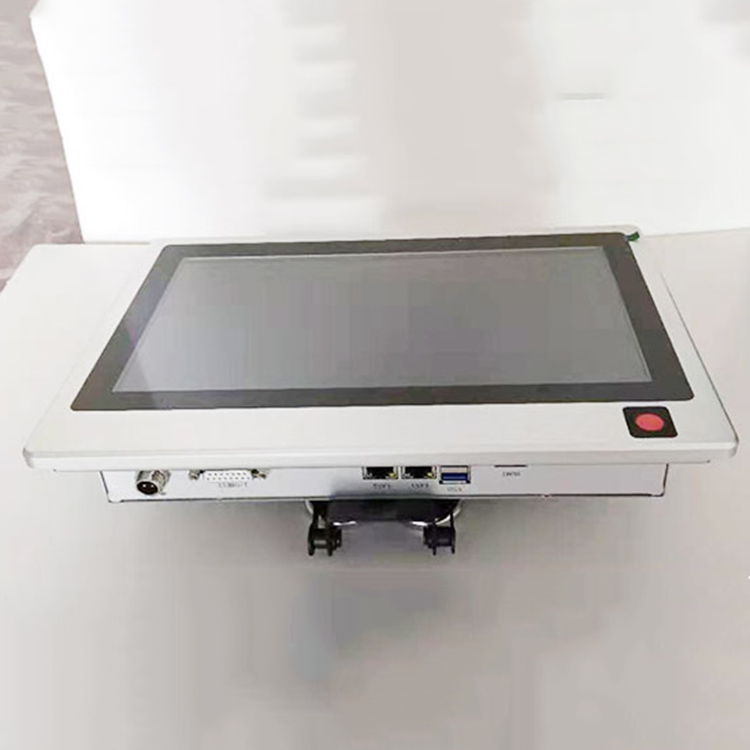

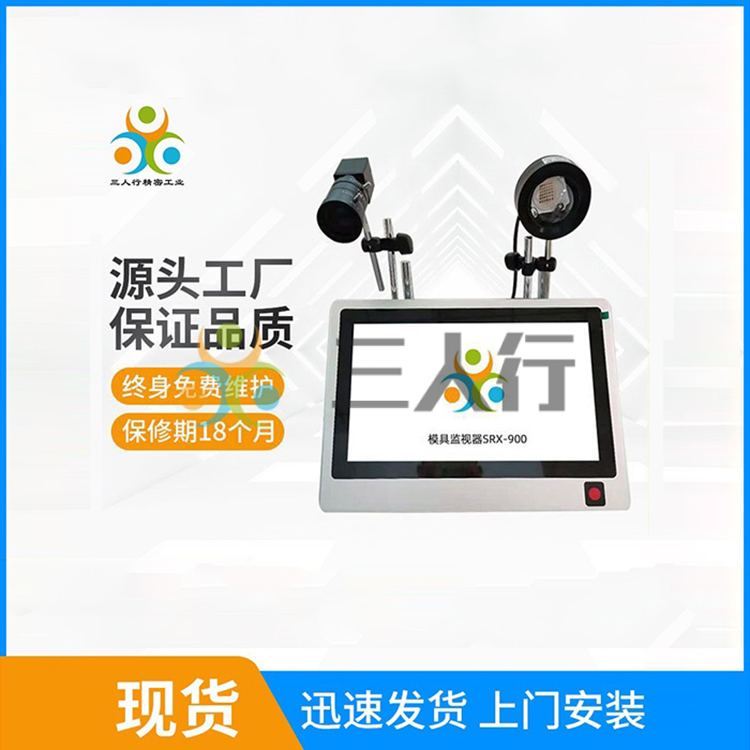

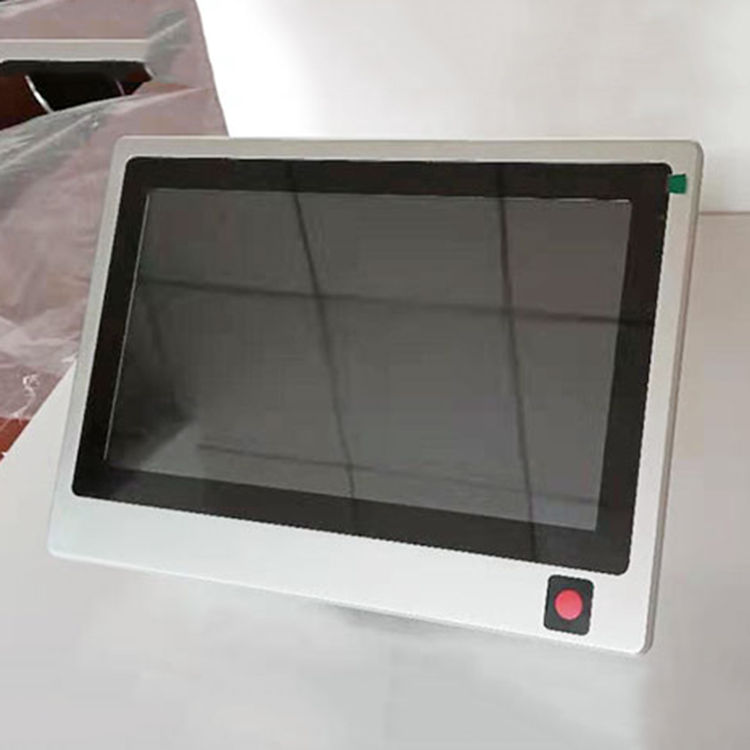

SRX-900 - Brand New Fourth Generation High-Definition Network Camera
Specifically designed for mold protection in the injection molding industry, featuring a control touch screen, infrared light source, industrial camera, and high-definition industrial camera, etc. The product monitors abnormal conditions inside the mold, and its functions include:
Resolution: 1920*1080 Processing Time: 0.01s
Power: 16W; Power Supply Voltage: 24V
Dimensions: 350*225*35 Screen Size: 12-inch
Weight: 1.25 Kg CPU: A15 Quad-Core Processor
Memory: 8GB SSD: 128GB
Camera: Gigabit COMS, 500W pixels Lens: Variable focal length 12-36MM
Infrared Light Source: Infrared light source, wavelength 950mm Magnetic Base: Adhesive force 110kg
Inspection Items:
1. Confirm mold cavity, mold core, and product residue prior to clamping
2. Slider position and pin ejection return position confirmation
3. Molding Insert Position and Omission Detection
4. Material Shortage and Frayed Edges Inspection
5. Prevent consecutive occurrences of defective products
6.穴孔产品是否有残留检测
7. Contactless detection, enhancing product reliability
8. High-resolution camera precision inspection, position detection accuracy 0.01MM, judgment processing time 0.01S
9. Supports monitoring areas of any shape and can be set with different areas as desired.
10. Equipped with infrared light source, unaffected by external light, reducing the false alarm rate of products.
11. Features WiFi remote monitoring capability
A single photo inspection captures the moment immediately after the mold is opened and before the product is ejected, to confirm the absence of serious defects and to check if the other half of the mold is stuck.
A second photo inspection is taken immediately after the product is ejected by the ejector pin, in front of the mold, to confirm the interior of the mold cavity for any product sticking or foreign matter left, verify if the inserts are properly placed, check the correct number of inserts, and ensure the ejector pin and slider are in place.
In the event of any abnormal situation, the mold monitor can accurately detect it and control the molding machine to stop clamping while issuing an abnormal alarm.
New SRX-900 mold monitor upgrade features:
1. We've upgraded to industrial cameras with Gigabit Ethernet interfaces, offering faster transmission speeds, greater distance capabilities, and enhanced anti-interference performance.
2. Utilizes a quad-core processor with ARM architecture for faster processing speed.
3. Utilize ISP image processing technology to optimize image processing algorithms, resulting in clearer images.
4. Utilizes SSD solid-state drives for enhanced stability.
5. Infrared light sources are controllable, which can extend the lifespan of infrared LEDs.
Persistent Advantages:
1. Built-in WIFI, online upgrade available.
2. Remote technical support available, efficient and cost-effective.
3. Can establish a local area network to achieve digital production management, upload data to the server, create a database, and ensure traceability of the production process.
New Product Highlights:
1. Features a new aesthetic design and touch operation, with a lightweight main unit, easy operation, and enhanced visual appeal.
2. Features magnetic adsorption for easy installation;
3. Equipped with Wi-Fi connection for remote monitoring and software upgrade guidance.
4. Utilizes cutting-edge hardware components and software architecture, offering fast processing speeds and low power consumption.
5. Enhanced with inlay pattern detection function and independent parameter settings, featuring high detection precision and stronger stability.
