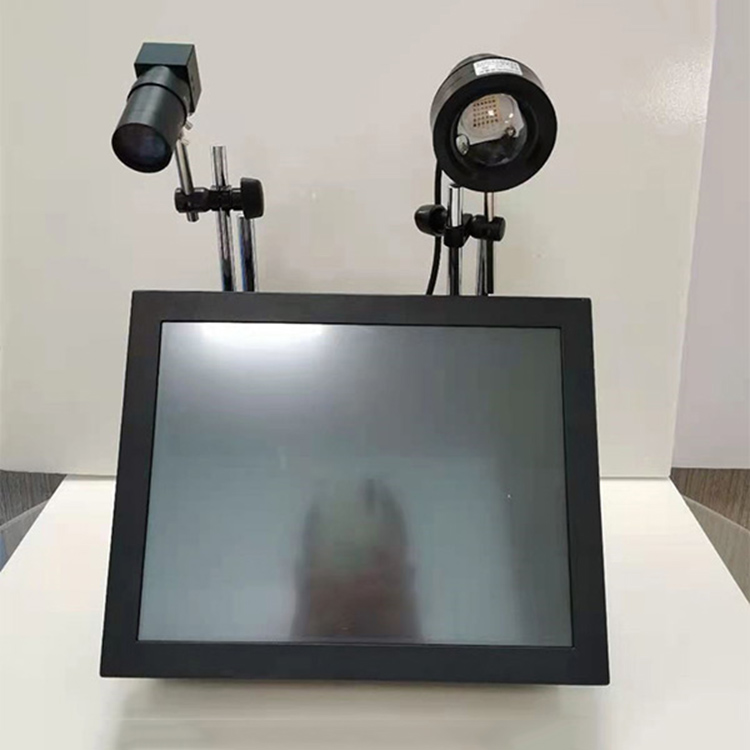

SRX-700 New Generation Ethernet Camera
Specifically designed for mold protection in the injection molding industry, this product features a control touch screen, infrared light source, industrial camera, and high-definition industrial camera, among other components. It monitors for abnormal conditions within the mold. The product's functions include:
Inspection Items:
1. Confirm mold cavity, mold core, and product residue before clamping
2. Slider Position, Pin Ejection Return Position Confirmation
3. Molding Insert Position and Omission Detection
4. Material Shortage and Frayed Edge Inspection
5. Prevent consecutive occurrence of defective products
6. Multi-hole product residual monitoring
7. Contactless detection, enhancing product reliability
8. High-resolution camera precision detection, position detection accuracy of 0.01MM, judgment processing time of 0.01S
9. Supports monitoring areas of any shape and can be set with different areas arbitrarily.
10. Equipped with infrared light source, unaffected by external light, reducing the false alarm rate of products.
11. Features WiFi-enabled remote monitoring capability
A single photo inspection captures the moment immediately after the mold is opened and the product is not ejected, to confirm that there are no serious defects or defects and to check if the other half of the mold is sticking.
Double photo inspection involves taking a photo before the product is ejected by the ejector pin, to confirm the interior of the mold, checking for any product sticking to the mold and foreign matter left behind, as well as ensuring the position of the ejector pin and slider.
Three photographs are taken after the insert is properly placed but before the mold is closed. They confirm that the inserts are in place and the count is normal. Any deviation is accurately detected by the mold monitor, which then prevents the mold from closing and triggers an alarm. Additionally, the system includes safety gate alarm cancellation and reset functions.
New SRX-700 Mold Monitor Upgrade Features:
1. Upgraded to industrial cameras with Gigabit Ethernet interfaces, offering faster transmission speeds, longer distances, and stronger anti-interference capabilities.
2. Features a quad-core processor with ARM architecture for faster processing speed.
3. Utilizing ISP image processing technology, optimize image processing algorithms for enhanced clarity.
4. Utilizes SSD solid-state drives for enhanced stability.
5. The infrared light source is controllable, which can extend the lifespan of the infrared LED.
Maintained advantages:
1. Utilizes the Luinx operating system, customized for optimal performance, ensuring a compact and stable system that won't crash during prolonged use.
2. Built-in WIFI, allows for online updates.
3. Remote technical support available, efficient and cost-effective.
4. Can establish a local area network for digital production management, upload data to the server, create a database, and achieve traceability of the production process.
New Product Highlights:
1. Features a new aesthetic design and touch operation, with a lightweight main unit, easy operation, and enhanced visual appeal.
2. Features magnetic adhesion for easy installation;
3. Features Wi-Fi connection for remote monitoring and software upgrade guidance.
4. Utilizes cutting-edge hardware components and software architecture for fast processing and low power consumption.
5. Enhanced with inlaid part mode, triple inspection features, and independent parameter settings, offering high precision detection.
