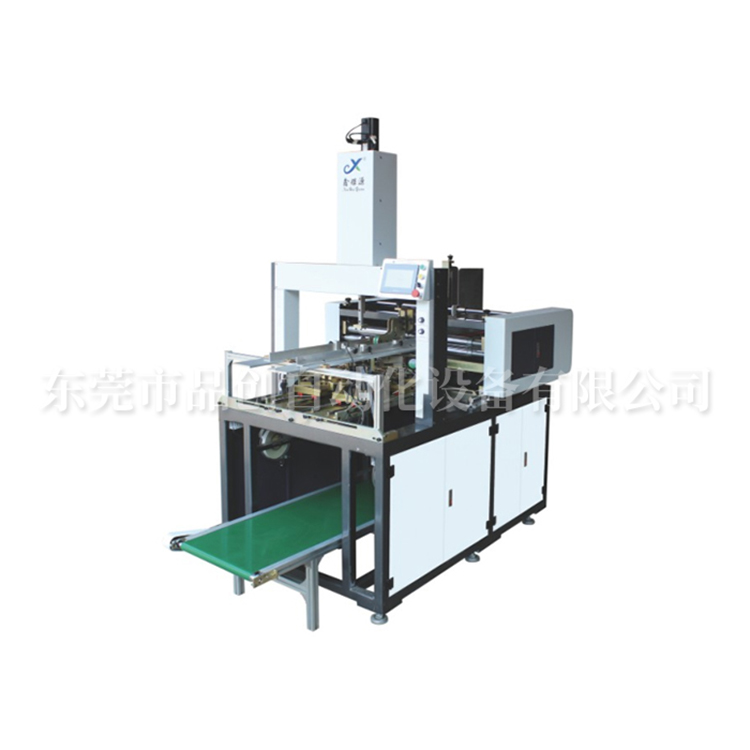

Product Features
1. The machine is powered by a servo motor and controlled by a PLC programmable logic controller.
2. Machine tuning is completed via a user-friendly interface with selection options, simple and easy to adjust.
3. All control components of this machine are of international high-end brands; featuring low failure rates and high precision.
4. The machine is equipped with a fault display alarm feature. Should any part malfunction, the alarm will sound, and the fault will be displayed on the screen.
5. The machine is equipped with a touch-sensitive emergency stop switch, which can be pressed to automatically stop in case of an emergency.
6. Can be paired with conveyors and intelligent positioning machines for production processes such as intelligent corner positioning and molding.
● Key Features
1. Utilizes PLC programmable control with a user-friendly interface.
2. Non-stop paperboard rapid stacking and conversion device
3. Mold changes are quick and simple, suitable for various specifications of products.
4. Hot melt tape is applied individually with a motorized conveyor, cut, and cornered, completing the corner bonding of the paper box in one go.
Application Scope
Jewelry boxes, gift boxes, shoe boxes, etc., are sealed and shaped at the four corners.
Technical Specifications
| Model | Model | XY-500 |
| Cardboard thickness | Greyboard Thickness | 0.8-4.0mm |
| Large cardboard boxes | Box Size Max | 450×450mm |
| Small paper box | Box Size Min | 45×45mm |
| Height | Height | 10-150mm |
| Gas Source Requirements | Air Supply | 0.6-0.8Mpa |
| Speed | Speed | 40-80PCS/min |
| Overall Power | Total Power | 3kw |
| Voltage | Voltage | 220v |
| Dimensions | Dimensions | L1700×W1200×H2250mm |
| Weight | Weight | 1300kg |
Due to continuous improvements in product design, the above technical specifications are for reference only. Any changes will not be notified separately.
