Product Features

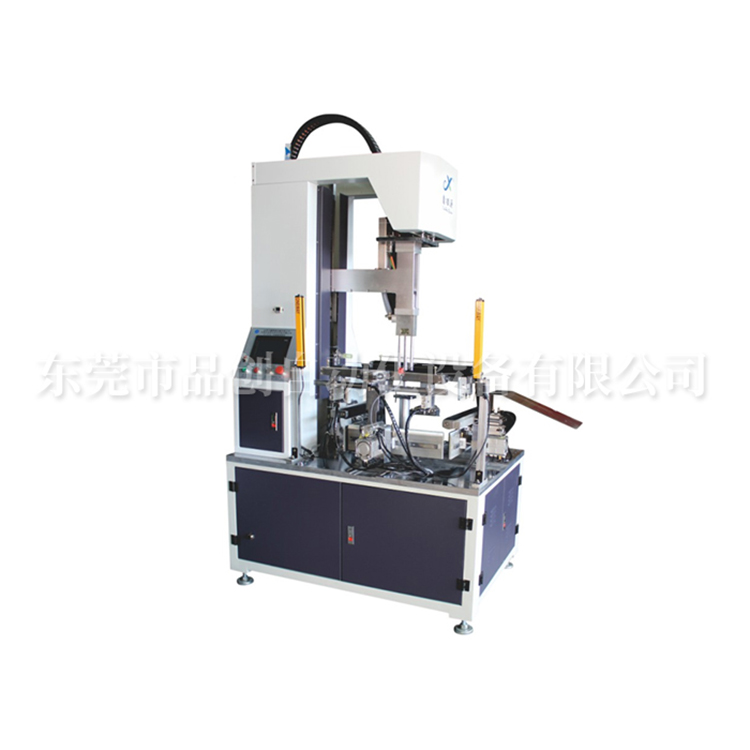

The XY-450B Automatic Hinge Lid Molding Machine is independently researched, developed, and produced by our company. It boasts stable performance and a wide range of applications.
This machine is an ideal automated design for processing high-quality gift boxes and sky-earth boxes. Workers manually position the inner box and face paper on the assembly line, then place the positioned paper box into the machine mold. The machine operates automatically, completing the edge wrapping, folding of ears, inward folding of the face paper, and bubble pressing in one go. It can produce 15-25 finished boxes per minute, significantly enhancing production efficiency and reducing costs.
● Performance
1. Driven by servo motors, the machine is equipped with PLC programmable control.
2. The machine debugging is completed through a user-friendly interface with selection options, simple and easy to adjust.
3. All control components of this unit are made with internationally renowned high-end brands; featuring low failure rates and high precision.
4. The machine is equipped with a fault display alarm feature, where any fault will be displayed on the screen.
5. The machine is equipped with a touch-sensitive emergency stop switch, which can be pressed to automatically stop in case of an emergency (double safety).
Technical Specifications
| Model | Model | XY-450B |
| Large processing dimensions | Max size | 500×450mm |
| Small processing dimensions | The minimum processing size | 45×45mm |
| Height | Height | 10-120mm |
| Gas Source Requirements | Air Supply | 0.6~0.8Mpa |
| Trimmed box speed | Box side wrapping speed | 10-14Pcs/min |
| Total Power | Total Power | 2.2Kw/220V |
| Speed | Speed | 15-22Pcs/min |
| Dimensions | Dimensions | 1200 × 900 ×2050mm |
| Overall Weight | Total Weight | 1100kg |
Due to the continuous improvement and evolution of product design, the above technical specifications are for reference only. Any changes will not be notified separately.
