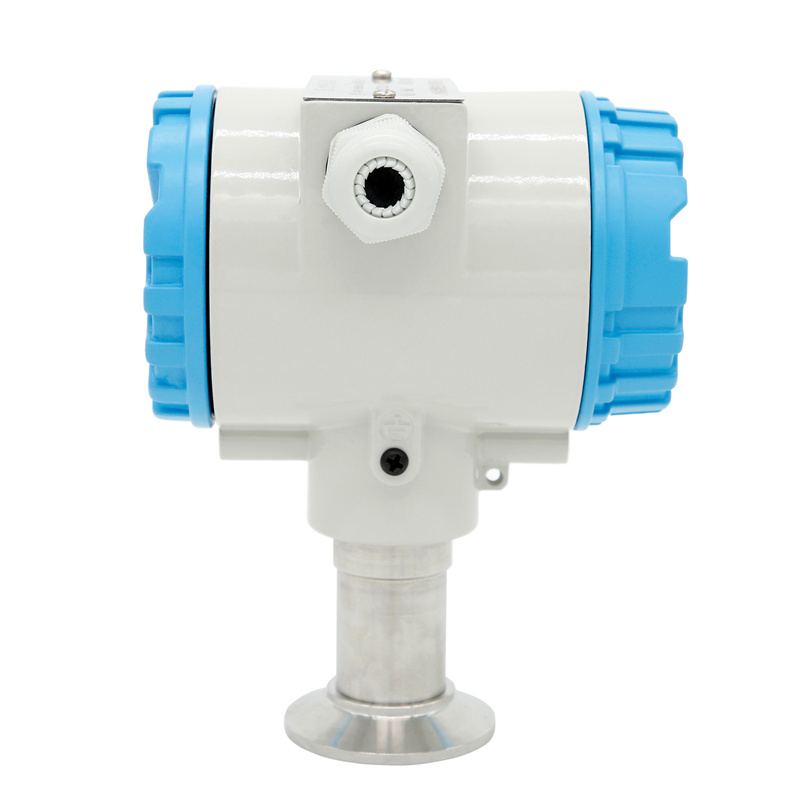

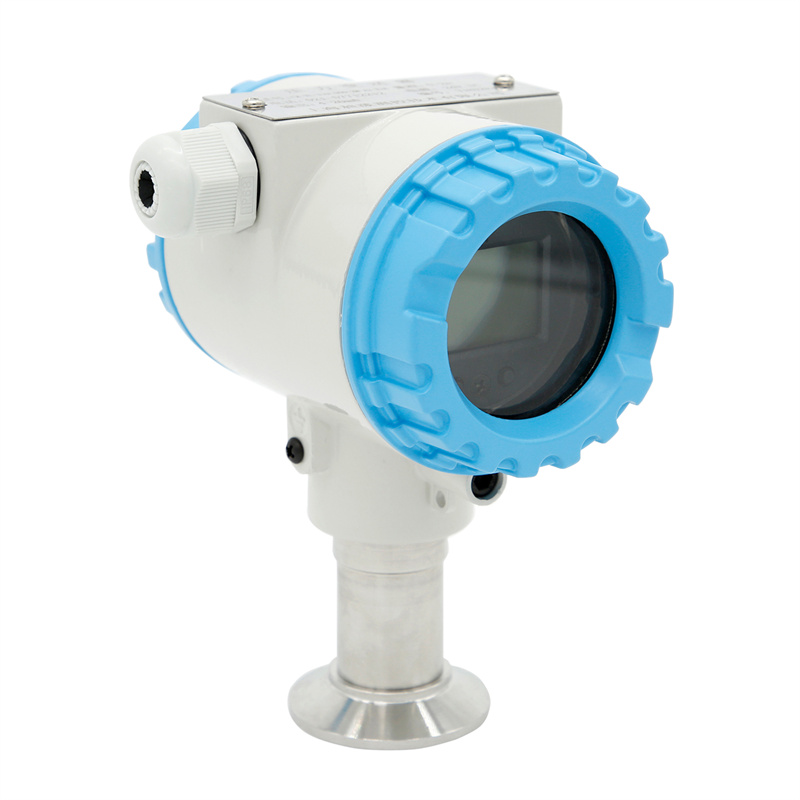

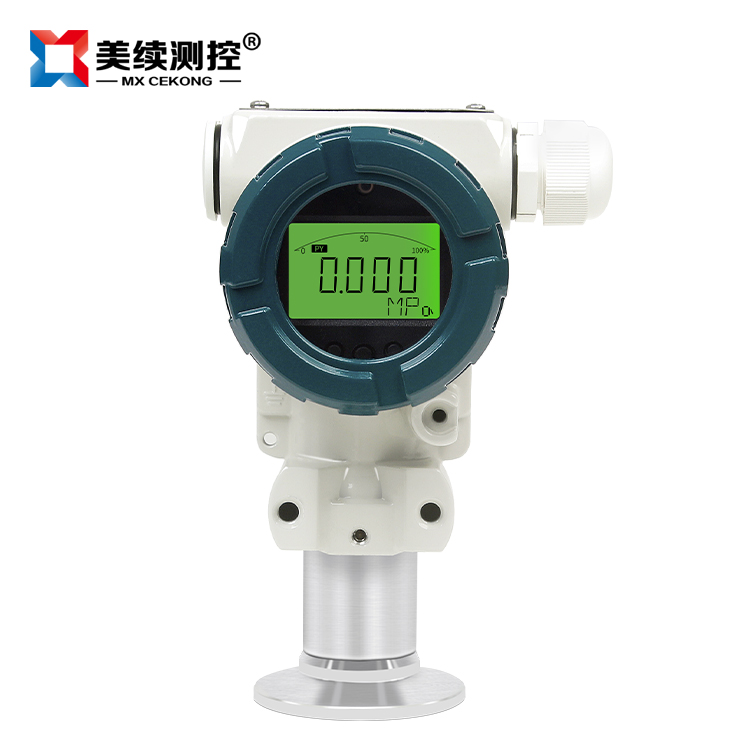

MX-YL-120-03 Series: This series is equipped with our independently developed and produced high-performance diffused silicon core package. The housing features a special explosion-proof shell, capable of being powered by an internal battery and an external 24VDC two-wire power supply.
Utilizing a resistive sensor core, the housing is made of stainless steel with an IP65+ protective rating. Applied to fluid pressure measurement and control in food and other automated fields. Features an LCD display, corrosion resistance, wide-temperature compensation, excellent linearity, reverse polarity protection, surge current and voltage protection, as well as anti-interference measures, offering a high level of protection. Improved and optimized on the MX-YL-120-02 digital pressure transmitter, it is widely used in the hygienic industry due to its superior performance.
Application Fields
Bottle Washing Machine - Washing, Drying, Filling, and Sealing Integrated Line, Automatic Material Feeding and Discharging System
CIP/SIP Cleaning and Sterilization Equipment, Automated Liquid Preparation System
Biological Products, Chemicals, Environmental Energy, Laboratory Equipment
Vacuum Sterilization Systems, Filtration, Fermentation, Extraction Systems
Food, Dairy, Juice Drinks, Beer, Eco-friendly
Pure water production, injection water, and pure steam generation systems
Product Features
Versatile output, simple assembly, easy replacement
High precision, high stability, reverse polarity protection, strong anti-electromagnetic interference ability
Sanitary operation conditions and compliance with AAA sanitation standards
Pressure measurement for thick, clog-prone media and fluid mixtures of solid and liquid
intrinsic safety explosion-proof, with LCD display
?Shell protection level: IP65, wide temperature compensation range, excellent linearity
Measurement within a pressure range of -100KPA to 0...1600bar
Multiple standard signal outputs available, easy to operate, and quick to reset.
Vibration and shock resistant, wide measurement range, capable of measuring absolute pressure, gauge pressure, and sealed reference pressure
