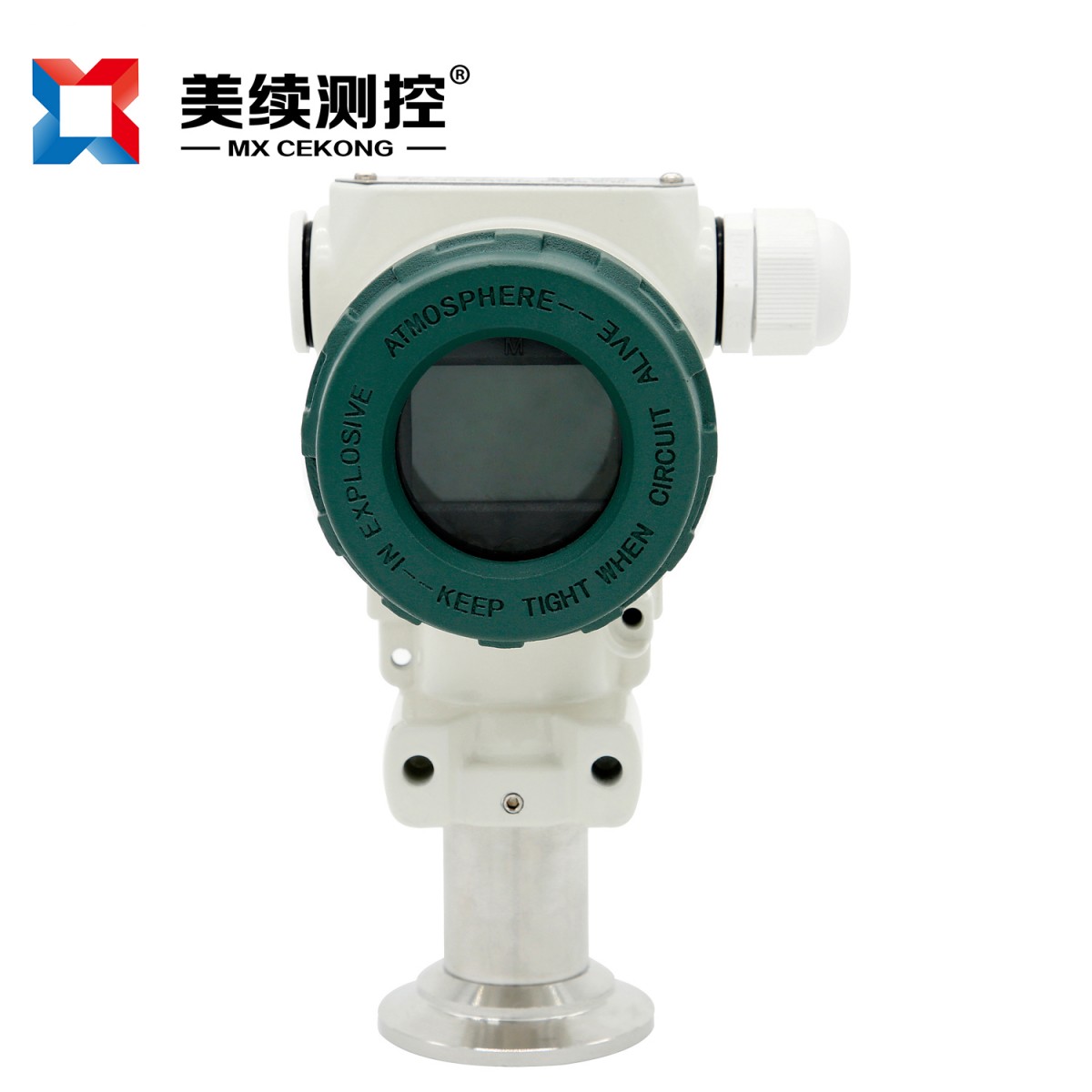

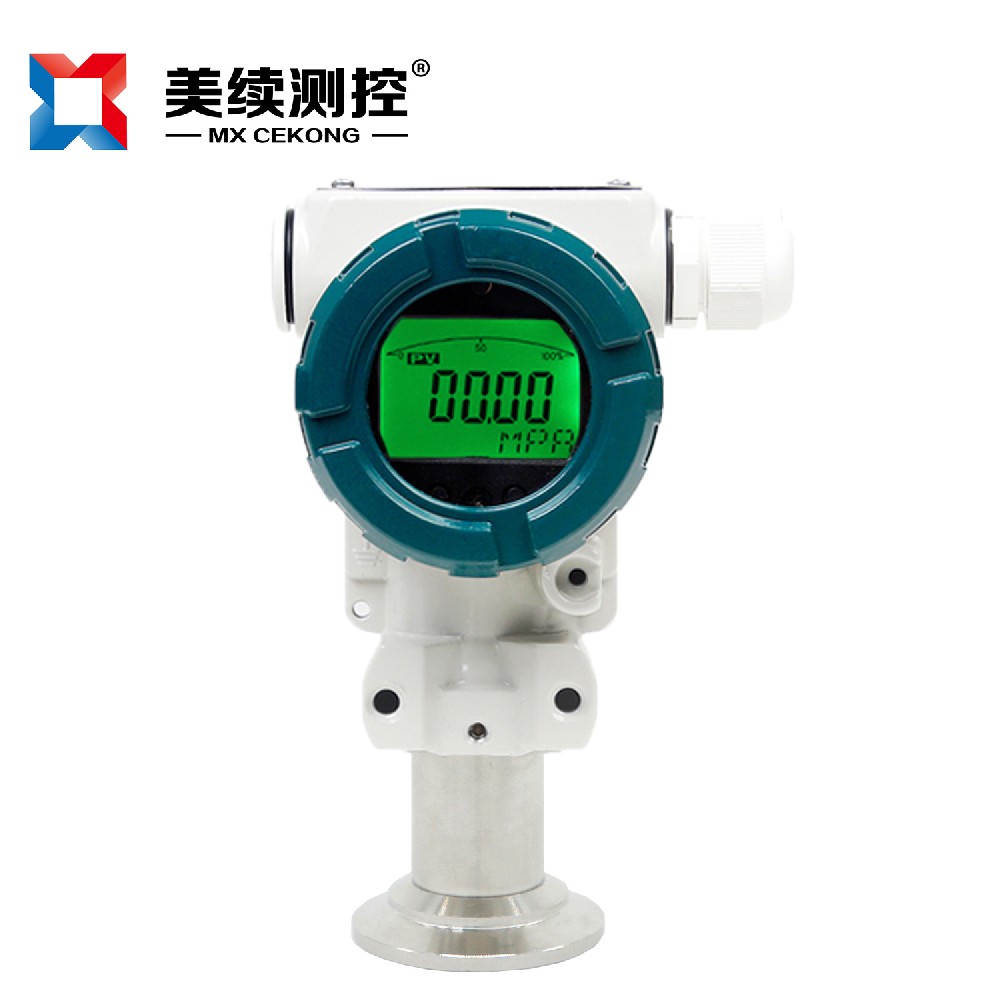

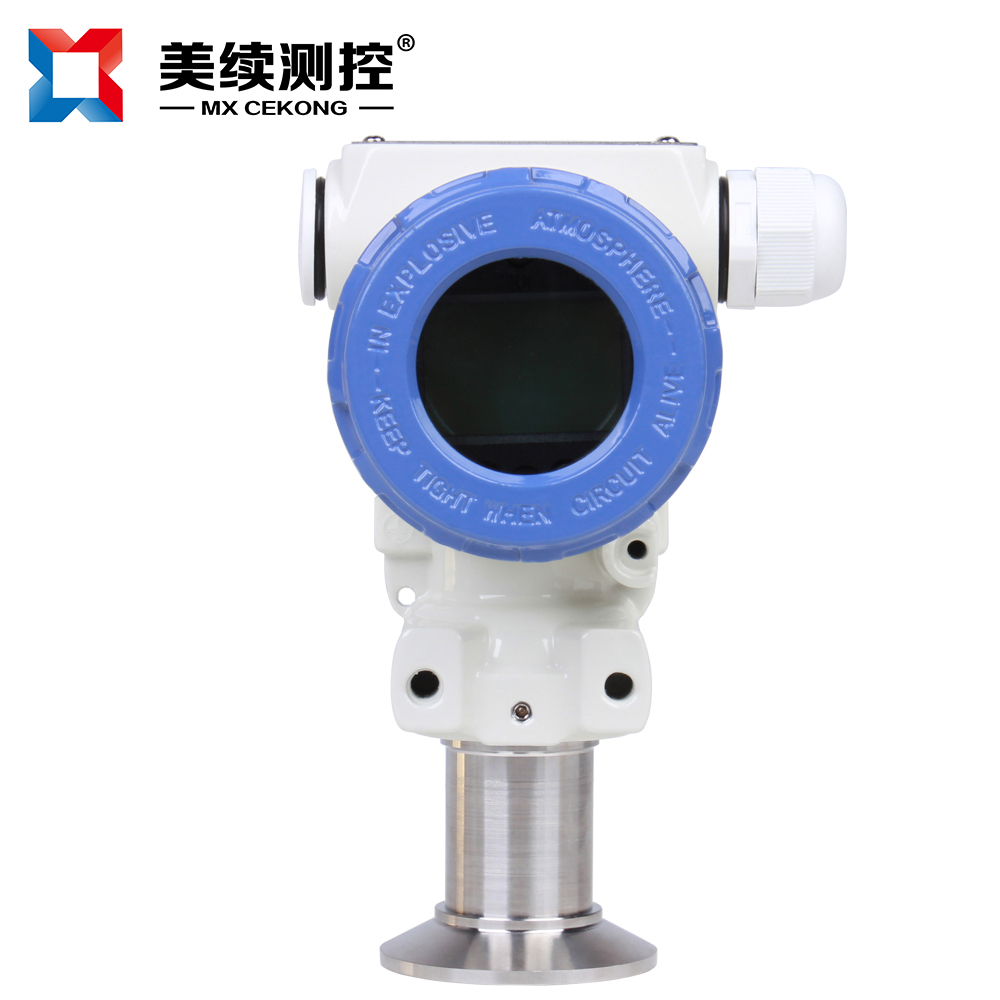

MX-YL-120-02 Series: This series is equipped with our independently developed and manufactured high-performance diffused silicon wafer encapsulation. The housing is a special explosion-proof shell, capable of being powered by an internal battery or an external 24VDC two-wire power supply.
Utilizes a resistive sensor core with a stainless steel housing, boasting an IP65+ protection rating. Suited for fluid pressure measurement and control in automated fields such as food industries. Features an optional LCD display, corrosion resistance, wide-temperature compensation, excellent linearity, reverse polarity protection, instant overcurrent and overvoltage protection, as well as anti-interference measures, with a high level of protection. Enjoying great popularity among consumers due to its excellent cost-performance ratio.
Application Fields
Bottle Washer - Washing, Drying, Filling and Sealing Integrated Line, Automatic Loading and Unloading System
CIP/SIP Cleaning and Sterilization Equipment, Automated Liquid Preparation System
Biological Products, Chemicals, Environmental Energy, Laboratory Equipment
Vacuum Sterilization Systems, Filtration, Fermentation, Extraction Systems
Food, Dairy, Juice Beverages, Beer, Eco-friendly
Pure water production,注射用水, pure steam generation system
Product Features
Diverse output formats, simple assembly, and easy replacement
High precision, high stability, polarity protection, strong anti-EMI capability
Compliant with hygiene requirements for operating conditions and AAA hygiene standards
Pressure measurement for thick, clog-prone media and fluid mixtures of solid and liquid
intrinsic safety explosion-proof, with LCD display
Shell protection level IP65, wide temperature compensation range, excellent linearity
Measurement within the pressure range of -100KPA to 0...1600bar
Multiple standard signal outputs available, easy to operate, and quick to reset
Vibration and shock resistance, wide measurement range, capable of measuring absolute pressure, gauge pressure, and sealed reference pressure
Technical Specifications
Reset Function Description:
Hold down the M key until "NO" appears at the bottom right of the screen. Press the S key to switch "NO" to "YES," then press M again to confirm.Wiring method
Ordering Guide
