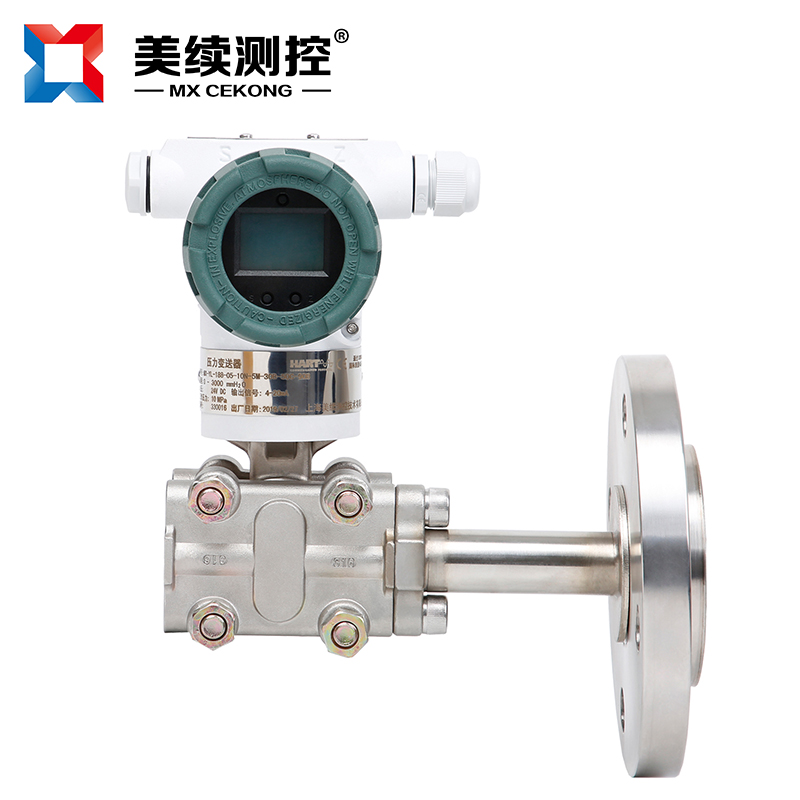

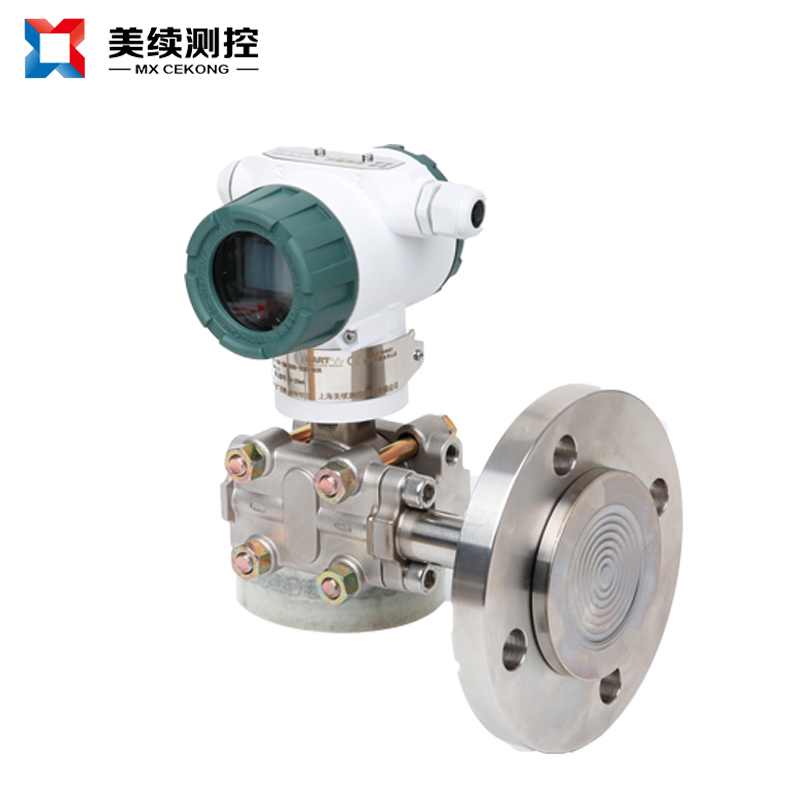

The MX-YL-188-05 Differential Pressure Transmitter is designed for fluid industry applications and can measure the pressure of liquids, steam, and gases. Utilizing globally renowned high-precision single-crystal silicon technology, it ensures the sensor's high stability and reliability.
This is a high-precision intelligent transmitter with external power supply and remote communication capabilities. It is designed for use in harsh environments such as outdoor and open areas, such as oil and gas transmission pipelines, heating systems, and other energy transportation facilities, for pressure monitoring. It enables wired remote signal transmission and also features HART protocol, compatible with hand-held operators, and universally applicable with international instruments. When paired with a wireless communication receiving module, the supervisory control and data acquisition (SCADA) system can directly monitor and collect data in real-time. The field unit is equipped with a high-definition LCD display, allowing staff to visually observe liquid levels. Additionally, the measurement range and calibration coefficients can be adjusted dynamically based on the density of the medium being measured.
Application Fields
Level Measurement and Control, Building Automation, Constant Pressure Water Supply
Petroleum, Environmental Protection, Petrochemical Industry
Hydraulic and Pneumatic Control Systems
Food Industry
Automatic Control and Detection System
Laboratory or Testing Equipment - Hydraulic Field
MVR Evaporator, Multi-effect Evaporator Equipment
Product Features
Utilizes world-leading isolation technology with strong anti-interference capabilities.
Utilizing state-of-the-art global high-precision silicon technology, featuring a unique dual-overload protective diaphragm design, one-way overpressure can reach up to 60 MPa.
High precision, accuracy better than 0.1% Precision up to 0.05%
High stability and reliability
Enhanced self-diagnosis and remote communication features
? Selectable HART protocol or RS485 communication protocol
High protection level, dustproof, waterproof, suitable for outdoor use
Standard Flange Dimensions (mm)
