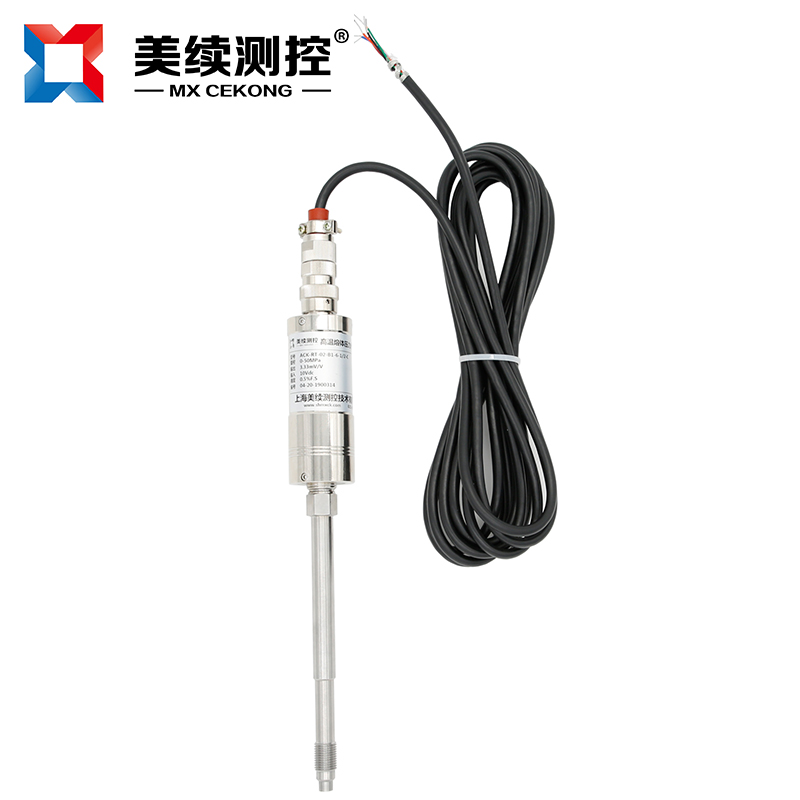

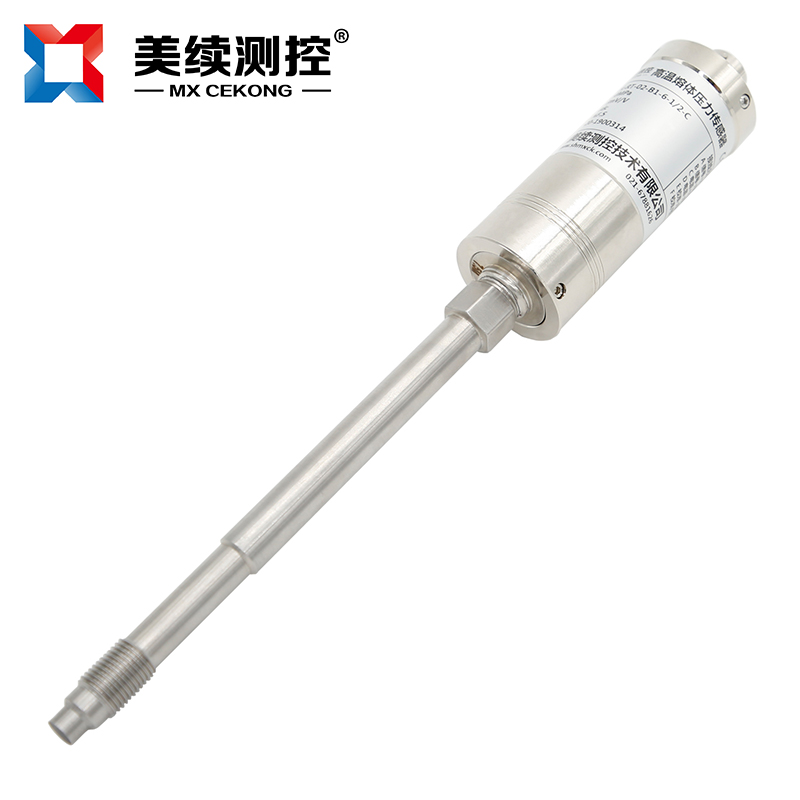

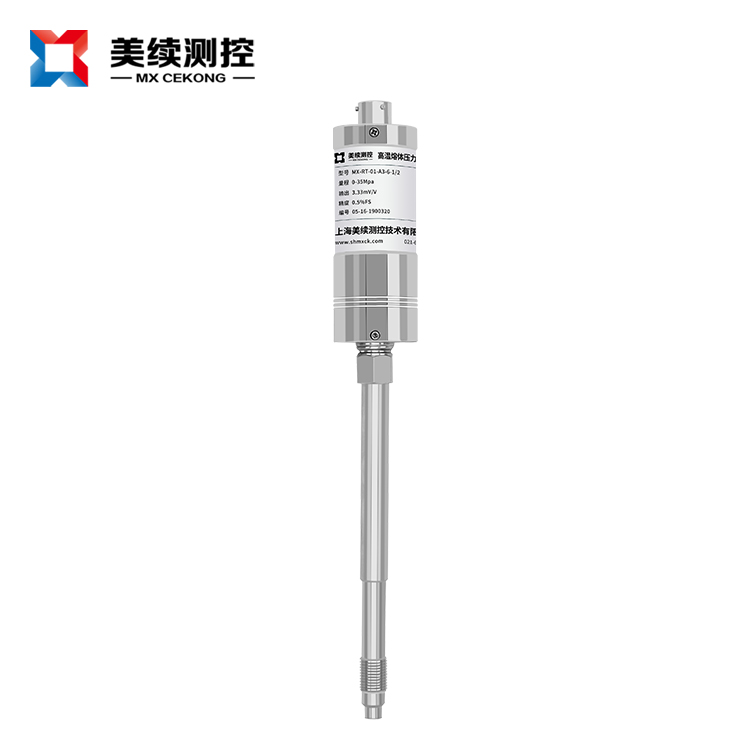

Ack-RT-02 Series Straight Rod High Precision High Temperature Melt Pressure Sensor/Transmitter, designed for the currentA U.S.-made and Italy-origin product, developed for the plastics, chemical fiber, and rubber products industries, is a perfect substitute for similar imported goods. The product features a pure stainless steel housing with a circuitry that boasts strong anti-interference capabilities, a rigid rod with a straight-threaded connection, and a special material and alloy elastomeric diaphragm that reduces temperature drift and enhances measurement accuracy. Its performance specifications meet those of world-class counterparts, and it has already captured a significant market share, being a staple in the plastics and chemical fiber industries.Representative of melt pressure sensors, equipped with temperature measuring thermocouples for simultaneous pressure and temperature measurement at the same point. Not only can it directly amplify signals into the PLC control system, but it also allows mv signals to enter our secondary instruments for simple automation control. With 80% internal calibration signals, easy installation, and high cost-performance ratio. Widely used in the monitoring of high-pressure temperatures in the chemical fiber and plastic extrusion industries.
Changes in installation position parallel to the diaphragm will not affect zero drift. If the installation position varies by more than 90° from the diaphragm surface, zero drift within a 0.5 kPa range can be corrected by zero adjustment, without affecting the measurement range.
Load characteristics
Power Supply: 12～45VDC or 14.5～45VDC (with passive isolator for enhanced noise immunity), typically 24VDC operating voltage.
Application Fields
Textile Filament Winding Equipment
Food Processing & Packaging Equipment
Plate extruder, profile extruder
Granulator recycling machines
Pressure Measurement and Control for Other High-Temperature Fluids
Plastic and rubber manufacturing equipment
Product Features
Internal 80% calibration signal
Excellent stability and repeatability
15-5PH Sheet Material
?Withstanding temperature of 450℃
Can substitute for equivalent U.S. imports
High precision, high stability
We also offer economy models in addition to the import type.
Vibration and shock resistance, wide measurement range, capable of measuring absolute pressure, gauge pressure, and sealed reference pressureDimensions
Figure 1: Single-function Standard Appearance Drawing
Figure 2: Standard Outline Drawing of Temperature and Pressure Dual-Function DesignTechnical Specifications
Ordering Guide
