Roofing Waterproofing Features
1. Wide temperature fluctuations, with high temperatures during the day and low temperatures at night, causing cyclic expansion and contraction which can lead to cracking in the structure.
2. Reinforced concrete structures may experience cracking and leakage in the floor due to uneven settlement of the foundation caused by compaction under additional stresses.
3. Alkali-aggregate reaction, reinforcement corrosion, chloride ion effects, and harmful侵蚀 occur only under wet conditions. The formation and progression of leakage cracks can adversely affect the load-bearing capacity and durability of the building structure.
Principles for Waterproof Reinforcement Construction Plan Design
1. Featuring an inverted waterproof design, it ensures effective waterproofing. The reactive membrane used, which reacts with concrete to form a sealing adhesive layer, provides a leak-proof seal, significantly enhancing safety and reliability.
2. The combination of flexibility and rigidity; the waterproofing layer must match the base layer's changing characteristics.
3. Outsourced waterproofing achieves a flexible, sealed effect: protecting the concrete structure's safety from water damage侵蚀.
4. Flexibility: Binary creep resistance, preventing rigid "cracking" and leakage.
5. Sealing: Effective sealing treatment has been applied to roof junction areas such as cracks, wall corner roots, and drainage pipes using matching junction waterproof sealant; preventing "water leakage" from causing the entire system to fail.
Floor Waterproofing and Insulation Construction Diagram

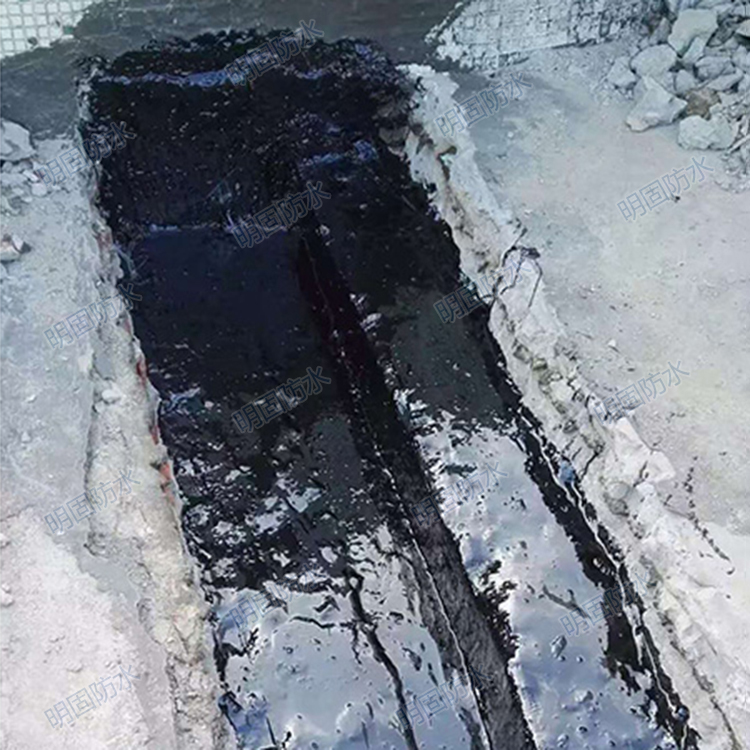

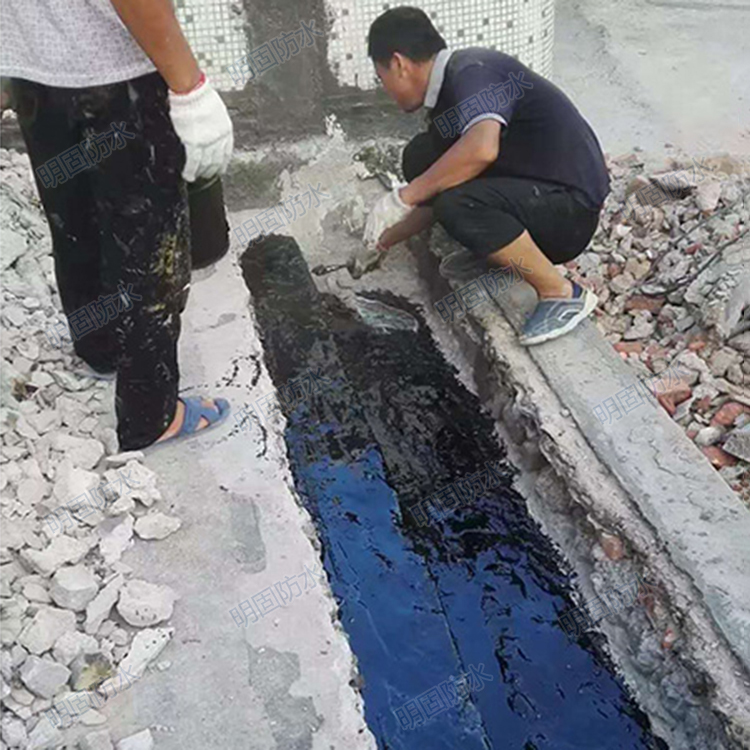

Floor slab structure cracks and leaks due to uneven settlement caused by compaction of the foundation under additional stress; cracks are reinforced with non-curing rubber waterproofing, which has excellent flexibility, suitable for base deformation, combating cracks through flexibility and complementing the substrate. It forms a flexible waterproof layer with strong adhesion through physical adsorption, eliminating stress caused by base changes, providing sufficient tensile crack resistance for the flexible waterproof layer, effectively resisting external stress damage.
