1． Design complies with the following specifications::
Cabinet meetsSEFA Relevant standards, and bySEFAProposed inspections for load-bearing, impact, chemical corrosion, and related aspects.
Note:Scientific Equipment and Furniture Association (SEFA) American Association of Scientific Laboratory Equipment and Furniture

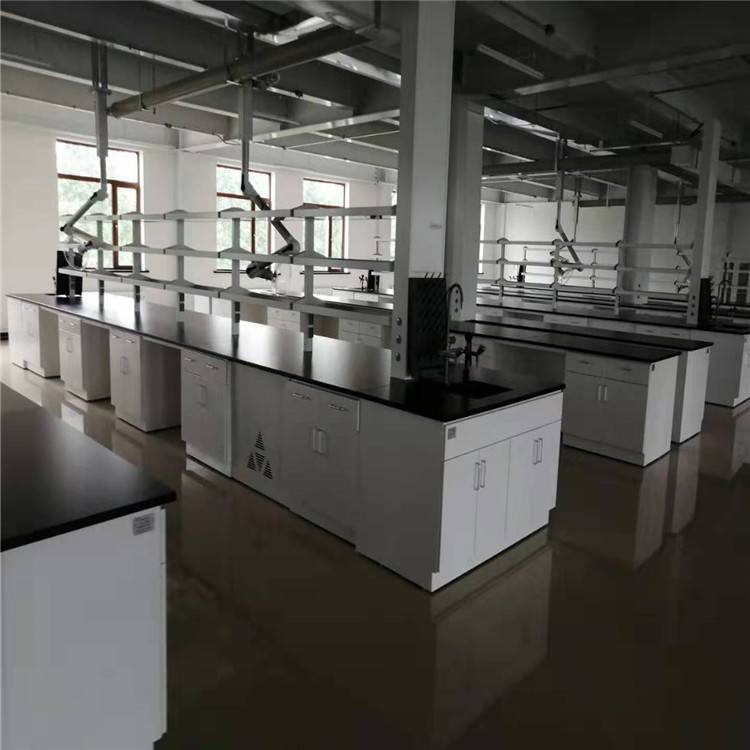

The basic cabinets are all made of full steel, pre-formed, and pre-opened structures. The intersection angle planes are smooth in both vertical and horizontal directions, without any overlapping or cracking. The door and drawer panels are on the same plane, and the interior of the panels contains sound-absorbing material.
The basic cabinet is an independent, detachable structure. The entire cabinet can be used individually or in combination.
The basic cabinet interior is easy to clean and maintain.
Drawer module sizes and quantities can be adjusted according to varying storage needs. Drawers can be removed without additional tools; the drawer panels are lined with sound-absorbing material. The top front panel is interlocked and overlaid with the rear panel to prevent dust from entering the cabinet.
Glass door cabinets can be glass replaced without damaging the original door structure.
Basic cabinet width450mmSingle door with a single drawer, no vertical支柱 in the center of the bottom cabinet.
Basic cabinet height: 800mmHeight is measured from seat height.
Pipes from the floor or walls, or service columns from the ceiling to the central console, are used to conceal water, electrical, and gas pipelines.
Accessories:
Kick plate100mmHigh, deep iron gray.
Handle304UType stainless steel.
2. Basic cabinet material
Basic cabinet body1.0mmHeavy galvanized steel plate, with the countertop selected based on the experimental content and the requirements of laboratory experts. Currently, chemical and physical board countertops.
Each component panel thickness meets or exceeds the following standards:
Drawer body and panel, cabinet frame, door lining panel, shelf, bracket, safety door, and slanted countertop:1.0mm
Paneling, back panel, component top and bottom panels, component structure panel, door panel, cabinet bottom back panel, vertical stiffener:1.0mm。
3. Hardware accessories
Handle: U-shaped 304 stainless steel handle.
Hinge:115-degree DTC hinge.
Shelf pin1.5mm thick stainless steel sheet formed by CNC punch press mold (standard without layer board, optional).
Porous holes: laser-cut, one-time molding
Adjustable Foot10mmGalvanized screws with a waterproof nylon circular grommet, easily adjustable.
4. Basins, drainpipes, and elbows
PPSink:Integrated casting, submersible installation on the surface, edge lower than the surface, connected with elbow.
Basin size: (500x400X300mm)。
Elbow40mmAnti-siphon, made of polypropylene material. Elbow is easy to remove and install.
5. Other Laboratory Accessories
Faucet is a countertop-mounted type with three cold water outlets.
The faucet has a chrome-plated finish.
Easily detach and install pipe mouth nozzles without separating from the internal piping.
The faucet can rotate.
The faucet handles are color-coded to indicate different uses.
