1． Design complies with the following specifications::
Cabinet meetsSEFA Relevant standards, and bySEFAProposed inspections for load-bearing, impact resistance, and chemical corrosion, etc.
Note:Scientific Equipment and Furniture Association (SEFA) U.S. Association for Scientific Laboratory Equipment and Furniture
All basic cabinets are made of full steel, pre-formed, and pre-opened structures. The intersection angle planes are smooth in both vertical and horizontal directions, without any overlapping or cracking. The door and drawer panels are on the same plane, and the interior of the panels is lined with sound-absorbing material.
The basic cabinet is an independent, detachable structure. The entire cabinet can be used individually or in combination.
The basic cabinet interior is easy to clean and maintain.
Drawer module sizes and quantities can be adjusted according to varying storage needs. Drawers can be disassembled without additional tools, featuring noise-reducing materials within the drawer panels; the top front and rear panels interlock and overlap to prevent dust from entering the cabinet.
Glass door cabinets can be glass-replaced without damaging the original door structure.
The basic cabinet width is450mmSingle door with a single drawer, no vertical支柱 in the middle of the bottom cabinet.
Base cabinet height: 800mmHeight is measured from seat height.

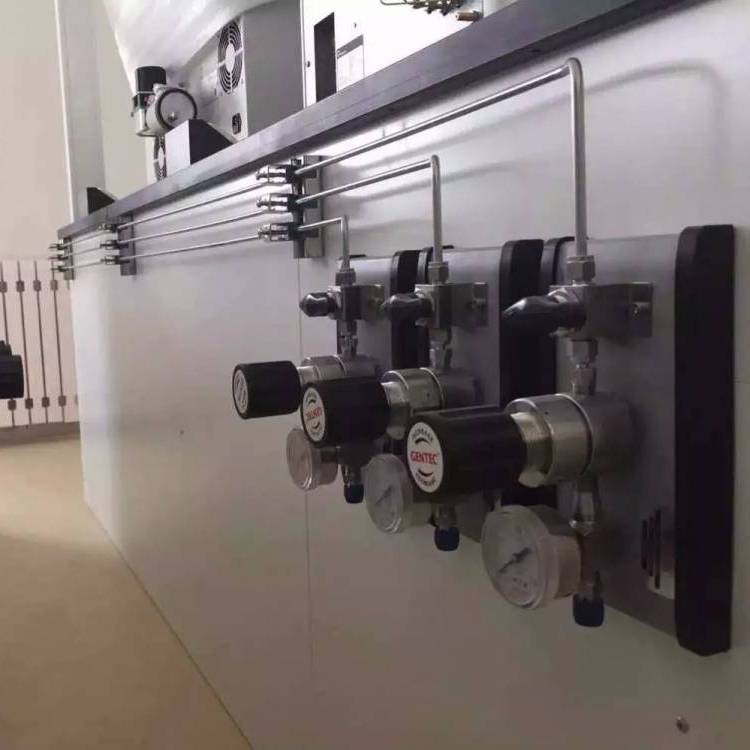

Holes or service columns from the ceiling to the central desk are used to conceal water, electricity, and gas piping, which are pre-drilled from the ground or walls.
Accessories:
Skirt boards100mmHigh, deep iron gray.
Pull Handle304UType stainless steel.
2. Basic cabinet material
Basic cabinet body1.0mmThick galvanized steel plate, with the countertop selection based on the experimental content and the requirements of laboratory experts. Currently using physical and chemical board countertops.
All panel thicknesses meet or exceed the following standards:
Drawer body and panels, cabinet frames, door lining, panels, brackets, safety doors, and slanting countertops:1.0mm
Panel, Rear Panel, Component Top and Bottom Plates, Component Structure Board, Outer Door Panel, Rear Panel of Bottom Cabinet, Vertical Liners:1.0mm。
3. Hardware accessories
Handle: U-shaped 304 stainless steel handle.
Hinge:115-degree DTC hinge.
Shelf销1.5mm thick stainless steel sheet formed by CNC punching mold (standard without sheet layer, optional).
Porous holes: laser-cut, one-piece molding
Adjustable Foot:10mmGalvanized screws with a waterproof nylon circular sleeve for easy adjustment.
4. Basins, drains, and elbows
PPSink:Integrated casting, submersible installation on the surface, edge lower than the surface, connected with elbow.
Bowl size: (500x400X300mm)。
Elbow40mmAnti-siphon, made of polypropylene material. Elbow is easy to remove and install.
5. Other Laboratory Accessories
Faucet is designed for countertop installation, featuring a triple-hole cold water faucet.
The faucet has a chrome-plated surface.
Easily disassemble and install pipe mouth nozzles without separating from the internal piping.
The faucet can rotate.
The faucet handles are color-coded for different purposes.
