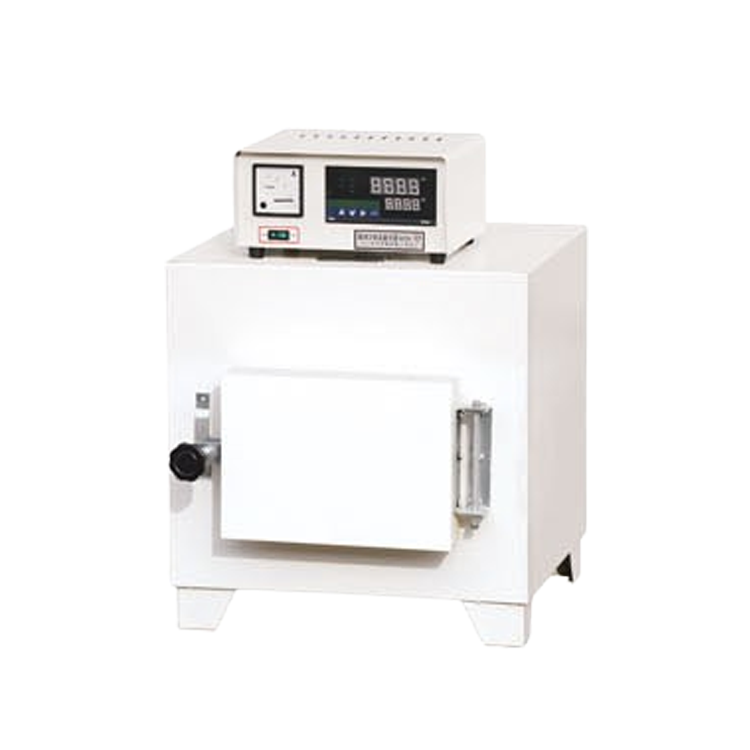

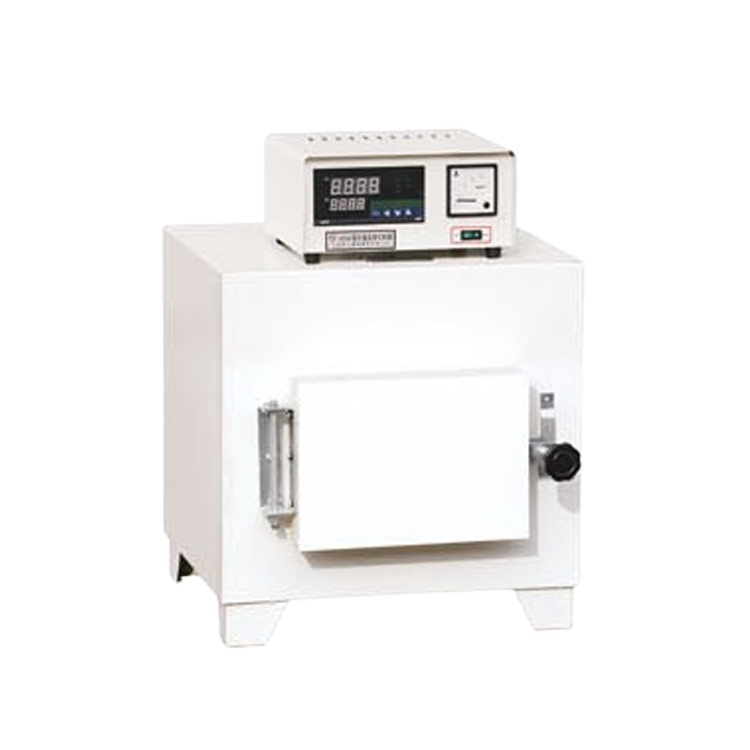

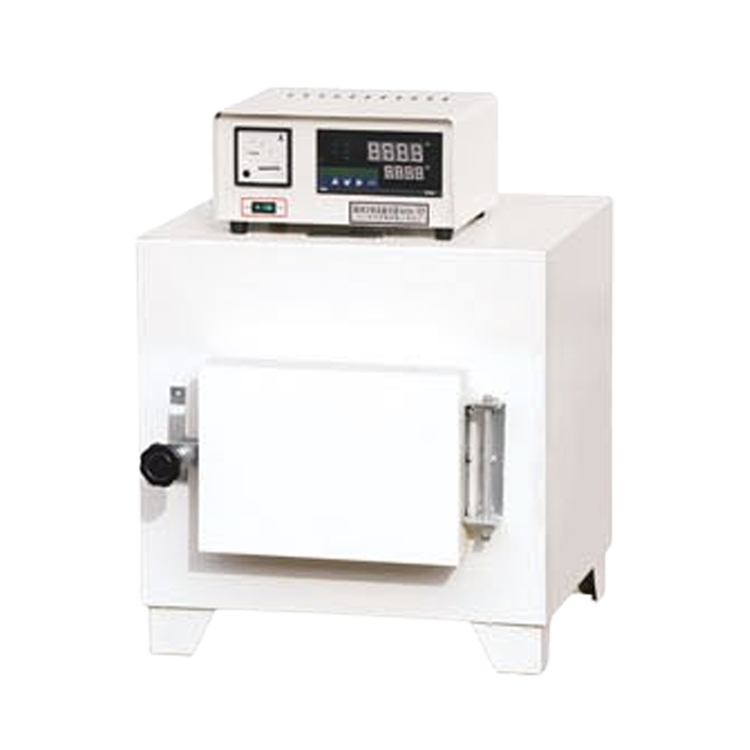

Product Description
Overview of Application: This series of resistance furnaces, with a periodic operation mode, is used for element analysis and determination, as well as for heating during heat treatments such as quenching, annealing, and tempering of general small steel parts, in laboratories, industrial and mining enterprises, and scientific research units.
Also suitable for medium-temperature heating in processes such as sintering, dissolution, and analysis of metals and ceramics.
Product Features
The shell is made of steel plate welding and electrostatically painted on the surface.
2. The studio features a sealed aluminum silicate furnace chamber, ensuring full utilization of heat.
3. PID Microcomputer Temperature Controller combined with Precision Sensors
4. Oven door features parallel side opening and top/bottom flat opening design
Model | GY-5-12 | |
Method | Four-sided heating | |
High operating temperature | 1200°c | |
Performance | Temperature Resolution | 1℃ |
Temperature fluctuation | ±1%℃ | |
Heating Method | Stage-wise heating up | |
Composition | Furnace body | Alumina Silicate |
Heater | Coil wire | |
Rated Power | 5KW | |
Outer packaging | Cold Rolled Steel Sheet | |
Controller | Temperature Control Method | Digital Tube Dual Row PID |
Program Mode | Optional accessories | |
Temperature Setting Method | Tap the four-button setup | |
Temperature Representation | Temperature Display: 4-digit upper display for measurement, 4-digit lower display for set temperature | |
Timer | 0-9999 (minutes) | |
Operation feature | Setpoint operation, timed operation, automatic shutdown | |
Additional Features | Bias Correction, Menu Keypad Lock, Power Failure Compensation, Power Failure Memory | |
Voltage | 220V | |
Specs | Sensor | K-type |
Internal dimensions (depth x width x height) | 300*200*120 | |
Dimensions (Depth x Width x Height) | 510*690*530 | |
Configurable options available | Exhaust outlet |
