Product Overview

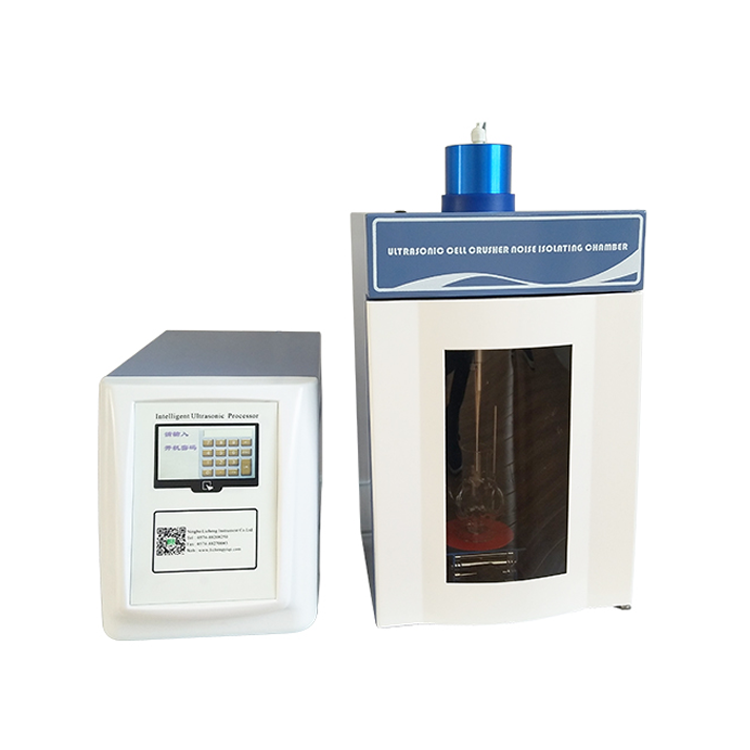

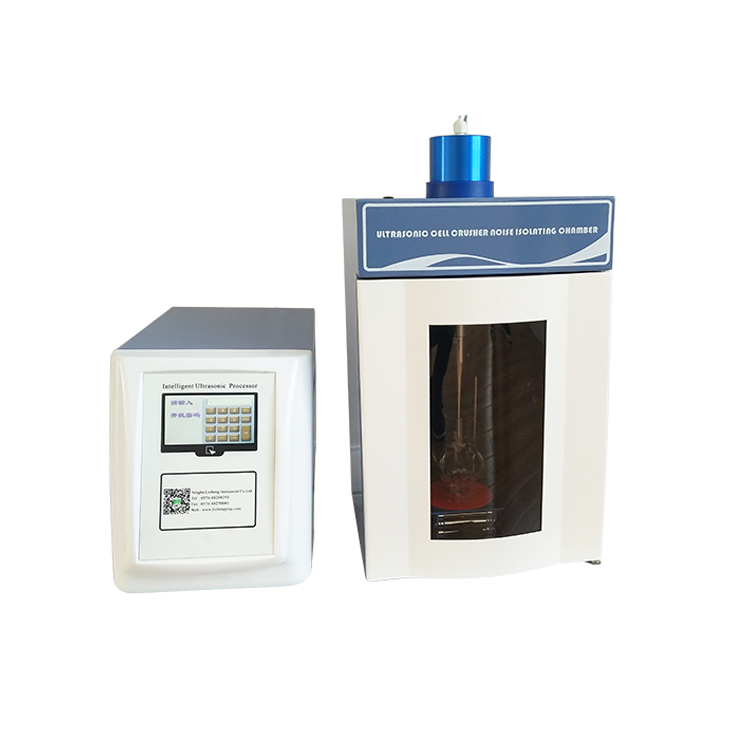

An ultrasonic cell disruptor (crusher) is a multifunctional and versatile instrument that utilizes strong ultrasound to produce cavitation effects in liquids for ultrasonic processing of materials. It is capable of breaking down various animal and plant cells, as well as viral cells. Additionally, it can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, etc. It is widely used in fields such as biochemical, microbiological, pharmaceutical, surface chemistry, physics, and zoology.
2. Product Specifications
| Model | GH88-IIN（LC-250Y） | GH96-IIN or (LC-150Y) |
| Frequency KHz | 20-25K Auto Tracking | 20-25K Auto Tracking |
| Watts | 5-250W Continuous Variable Output | 1-150W Continuous Variable |
| Random Amplitude Rod mm | Φ6 | Φ6 |
| Optional range rod in mm | Φ2、3、8、10 | Φ2、3、8 |
| Crushed Capacity ml | 0.2-300 (with corresponding probe) | 0.2-150 (with corresponding probe required) |
| Temperature Alarm Range | 0-100 ℃ | 0-100 ℃ |
| Instrument Protection Features | Over-temperature, Over-load, Over-time | Over-temperature, over-effort, over-time |
| Display Method | LCD Display | LCD Display |
3. Reference values for ultrasonic transducer selection in various specifications:
| Model: National Standard | British Standard | Frequency | Suggested power range reference values | Crushed Capacity Reference Value | |
| Φ2 | 1/12″ | 20-25KHz | min-150W | 0.2-5ml | |
| Φ3 | 1/8″ | 20-25KHz | min-250W | 3-10ml | |
| Φ6 | 1/4″ | 20-25KHz | 20-400W | 10-100ml | |
| Φ10 | 5/12″ | 20-25KHz | 100-600W | 30-300ml | |
| Φ12 | 1/2″ | 20-25KHz | 200-900W | 50-500ml | |
| Φ15 | 5/8″ | 20-25KHz 19.5-20.5KHz | 300-1000W | 100-600ml | |
| Φ20 | 4/5″ | 19.5-20.5KHz | 400-1100W | 100-1000ml | |
| Φ22 | 5/6″ | 19.5-20.5KHz | 400-1100W | 200-1000ml | |
| Φ25 | 1″ | 19.5-20.5KHz | 800-1500W | 500-1200ml | |
