Product Overview

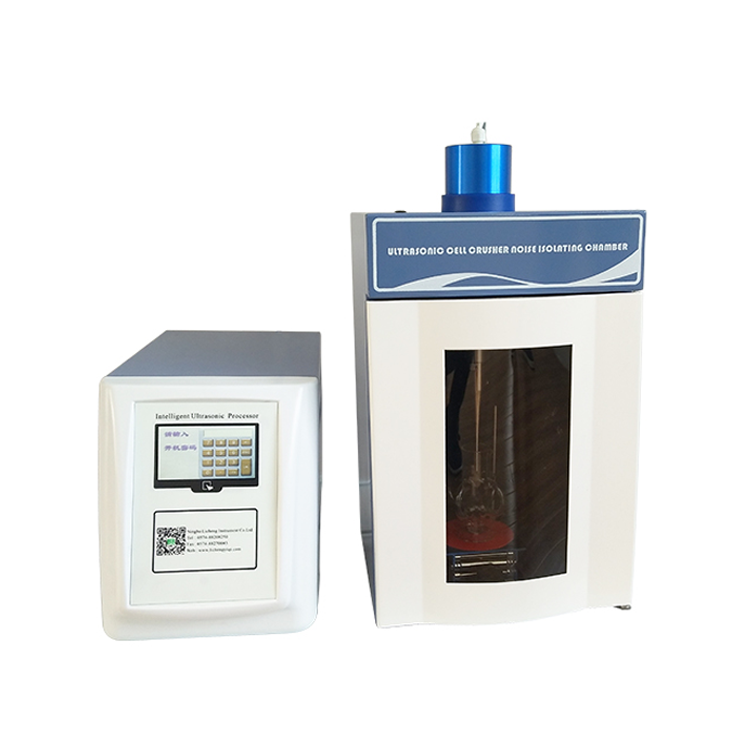

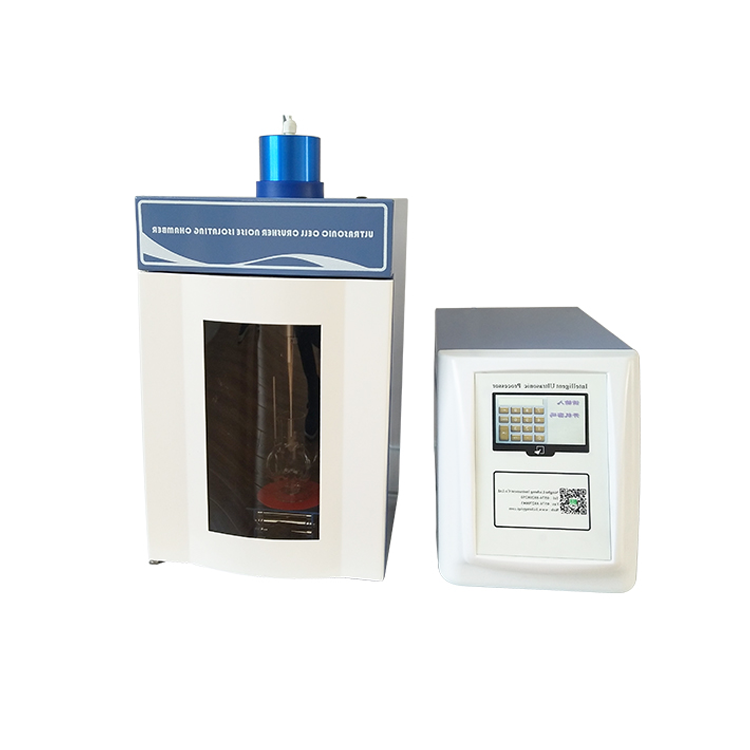

The Ultrasonic Cell Disruption Instrument (pulverizer) is a multifunctional and versatile device that uses strong ultrasound to generate cavitation effects in liquids for ultrasonic processing of materials. It is capable of breaking down various animal and plant cells, as well as viral cells. It can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, among others. It is widely used in fields such as biochemical, microbiological, pharmaceutical, surface, physics, and zoological sciences.
2. Product Specifications
| Model | GH88-IIN（LC-250Y） | GH96-IIN or (LC-150Y) |
| Frequency KHz | 20-25K Auto Track | 20-25K Auto-Tracking |
| Watts | 5-250W Continuous Variable | 1-150W Continuous Variable |
| Random Range Rod mm | Φ6 | Φ6 |
| Optional extension rod mm | Φ2、3、8、10 | Φ2、3、8 |
| Crushed Capacity ml | 0.2-300 (with corresponding probe) | 0.2-150 (with corresponding probe) |
| Temperature Alarm Range | 0-100 ℃ | 0-100 ℃ |
| Instrument Protection Function | Over-temperature, Over-effort, Over-time | Over-temperature, Over-performance, Over-time |
| Display Method | Liquid Crystal Display (LCD) | Liquid Crystal Display |
3. Reference values for ultrasonic transducer variable amplitude rods of various specifications:
| Model: National Standard | British System | Frequency | Recommended Power Range Reference Value | Refer to the crushing capacity reference value | |
| Φ2 | 1/12″ | 20-25KHz | min-150W | 0.2-5ml | |
| Φ3 | 1/8″ | 20-25KHz | min-250W | 3-10ml | |
| Φ6 | 1/4″ | 20-25KHz | 20-400W | 10-100ml | |
| Φ10 | 5/12″ | 20-25KHz | 100-600W | 30-300ml | |
| Φ12 | 1/2″ | 20-25KHz | 200-900W | 50-500ml | |
| Φ15 | 5/8″ | 20-25KHz 19.5-20.5KHz | 300-1000W | 100-600ml | |
| Φ20 | 4/5″ | 19.5-20.5KHz | 400-1100W | 100-1000ml | |
| Φ22 | 5/6″ | 19.5-20.5KHz | 400-1100W | 200-1000ml | |
| Φ25 | 1″ | 19.5-20.5KHz | 800-1500W | 500-1200ml | |
