Product Overview

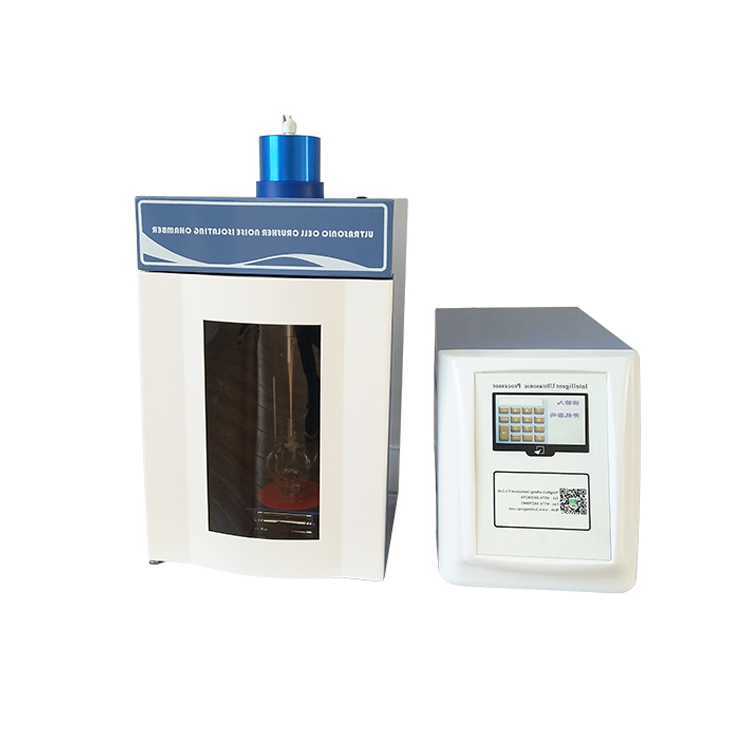

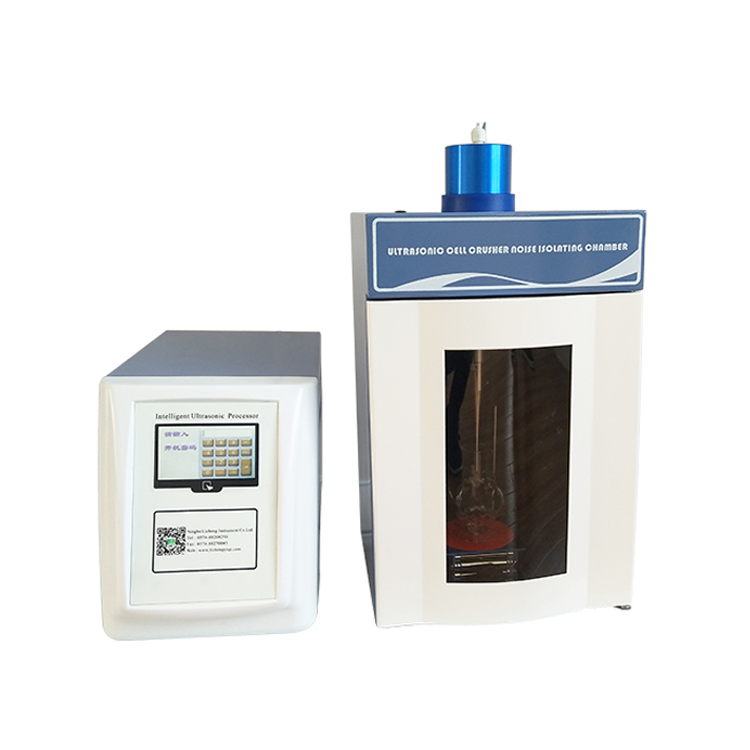

An ultrasonic cell disruptor (pulverizer) is a multifunctional and versatile instrument that uses strong ultrasound to generate cavitation effects in liquids, enabling ultrasonic treatment of materials. It is capable of breaking down various animal and plant cells, as well as virus cells, and can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions. It is widely used in fields such as biochemical engineering, microbiology, pharmaceutical chemistry, surface chemistry, physics, and zoology.
2. Product Specifications
| Model | GH92-IIDN | GH92-IIN(LC-650Y) |
| Frequency KHz | 20-25K Auto-Tracking | 20-25K Auto Track |
| Power W | 10-900W continuous adjustable | 10-650W Continuous Variable |
| Random range rod mm | Φ6 | Φ6 |
| Optional range rod mm | Φ2、3、8、10、12、15 | Φ2、3、8、10、12 |
| Crushed Capacity ml | 0.2-600 (with corresponding probe) | 0.2-500 (with corresponding probe) |
| Store data | 50 sets | 50 sets |
| Temperature Alarm Range | 0-100 ℃ | 0-100 ℃ |
| Instrument protection feature | Over-temperature, Over-performance, Over-time | Over-temperature, over-performance, over-time |
| Display Method | Liquid Crystal Display | LCD Display |
3. Reference values for ultrasonic transducer rod specifications selection:
| Model: National Standard | British Standard | Frequency | Suggested power range reference values | Refined Capacity Reference Value | |
| Φ2 | 1/12″ | 20-25KHz | min-150W | 0.2-5ml | |
| Φ3 | 1/8″ | 20-25KHz | min-250W | 3-10ml | |
| Φ6 | 1/4″ | 20-25KHz | 20-400W | 10-100ml | |
| Φ10 | 5/12″ | 20-25KHz | 100-600W | 30-300ml | |
| Φ12 | 1/2″ | 20-25KHz | 200-900W | 50-500ml | |
| Φ15 | 5/8″ | 20-25KHz 19.5-20.5KHz | 300-1000W | 100-600ml | |
| Φ20 | 4/5″ | 19.5-20.5KHz | 400-1100W | 100-1000ml | |
| Φ22 | 5/6″ | 19.5-20.5KHz | 400-1100W | 200-1000ml | |
| Φ25 | 1″ | 19.5-20.5KHz | 800-1500W | 500-1200ml | |
