Product Overview
An ultrasonic cell disruptor (crusher) is a multifunctional and versatile instrument that utilizes strong ultrasound to generate cavitation effects in liquids for ultrasonic processing of materials. It is capable of breaking down various animal and plant cells, as well as virus cells. It can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions. It is widely used in fields such as biochemical, microbiological, pharmaceutical, surface chemistry, physics, and zoology.
2. Product Features

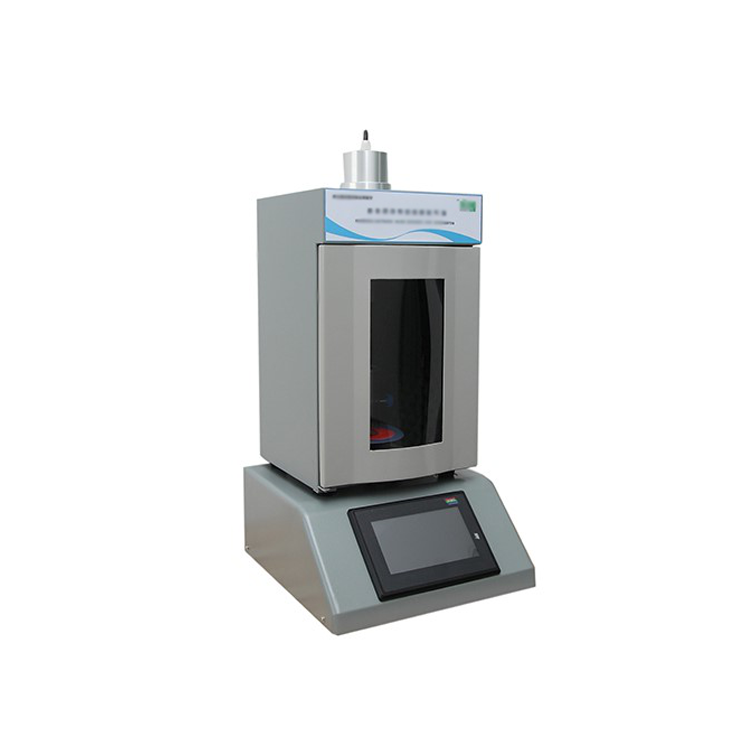

The aesthetically pleasing and reliable LCD temperature-controlled ultrasonic cell disruptor features a large-screen display and centralized central computer control. It allows for adjustable settings of ultrasonic, gap, total time, and power, with optional amplitude rod selection upon startup, sample temperature display, automatic frequency tracking, and fault automatic alarm. The instrument uses PWM controlled switch-mode power supply, with continuous power adjustment capability, and can store 50 sets of experimental parameters. All functions are displayed on the large screen.
3. Product Specifications
| Model | GH -650EW | GH -950EW |
| Frequency KHz | 20-25K Auto-Tracking | 20-25K Automatic Tracking |
| Watts | 5-650W adjustable | 10-950W adjustable |
| Random range rod mm | Φ6 | Φ6 or 10 |
| Optional range rod mm | Φ2、3、8、10、12 | Φ2、3、8、10、12、15 |
| Crushed Capacity ml | 0.2-500 (with corresponding probe required) | 0.2-600 (with corresponding probe required) |
| Input Method | Touch Control | Touch Control |
| Display Method | 7-inch TFT | 7-inch TFT |
| Display Content | Temperature, power, waveform, amplitude, pulse, and time—10 types of displays | Temperature, power, waveform, amplitude, pulse, and time—10 types of displays |
| Protective Device | Self-diagnostic function, automatic error correction, overload and over-temperature protection display, etc. | Self-diagnostic function, automatic error correction, overload and over-temperature protection display, etc. |
| Login Password Protection | Available | Available |
| Computer Networking Functionality | Optional | Optional |
| Soundproofing box | Optional features include lighting, sterilization, and automatic lifting functions. | Optional features include lighting, sterilization, and automatic lifting. |
| Other Features | Data storage for 20 sets, printing, ultrasonic gap/continuous functions | Data storage for 20 sets, printing, ultrasonic gap/continuous functions |
4Ultrasound transducer selection reference values for various specifications:
| Model: National Standard | British System | Frequency | Suggested power range reference value | Fragmentation capacity reference value | |
| Φ2 | 1/12″ | 20-25KHz | min-150W | 0.2-5ml | |
| Φ3 | 1/8″ | 20-25KHz | min-250W | 3-10ml | |
| Φ6 | 1/4″ | 20-25KHz | 20-400W | 10-100ml | |
| Φ10 | 5/12″ | 20-25KHz | 100-600W | 30-300ml | |
| Φ12 | 1/2″ | 20-25KHz | 200-900W | 50-500ml | |
| Φ15 | 5/8″ | 20-25KHz 19.5-20.5KHz | 300-1000W | 100-600ml | |
| Φ20 | 4/5″ | 19.5-20.5KHz | 400-1100W | 100-1000ml | |
| Φ22 | 5/6″ | 19.5-20.5KHz | 400-1100W | 200-1000ml | |
| Φ25 | 1″ | 19.5-20.5KHz | 800-1500W | 500-1200ml | |
