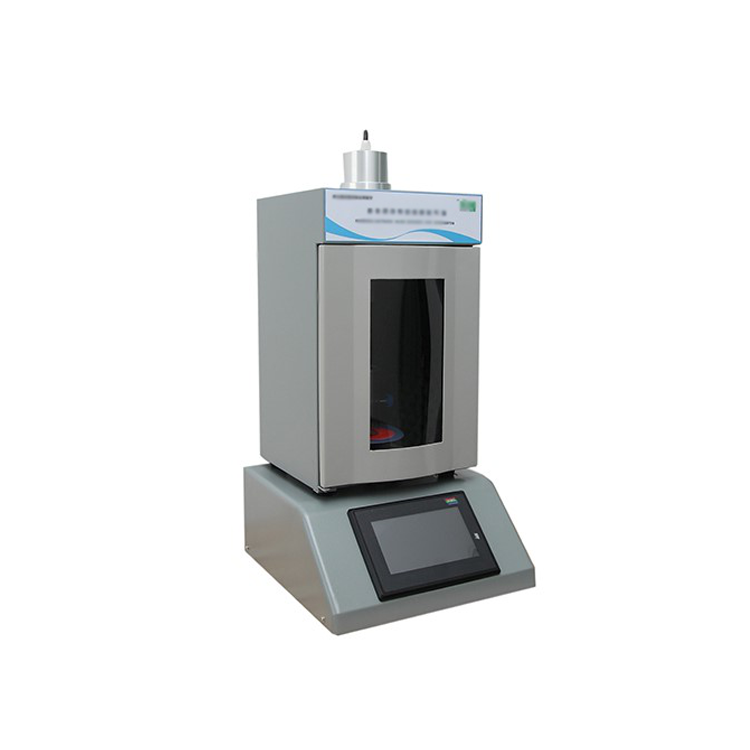

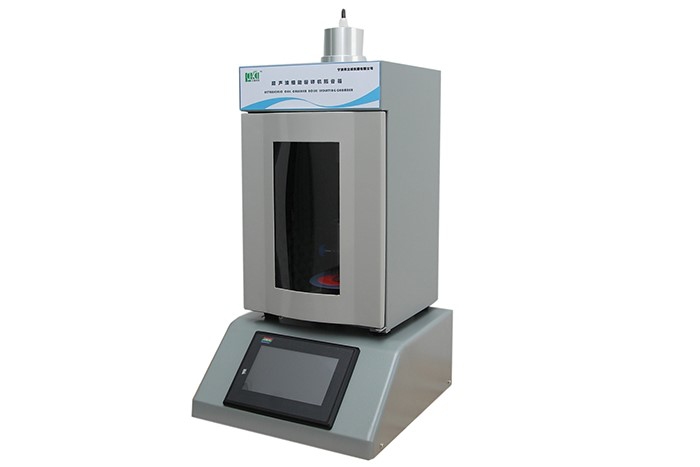

Product Overview
An ultrasonic cell disruptor (crusher) is a multifunctional and versatile instrument that utilizes strong ultrasound to generate cavitation effects in liquids for ultrasonic processing of materials. It is capable of breaking down various animal and plant cells, as well as virus cells. Additionally, it can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions. It is widely used in fields such as biochemical engineering, microbiology, pharmaceutical chemistry, surface chemistry, physics, and zoology.
2. Product Specifications
| Model | GH -1200E | GH -1800E |
| Frequency KHz | 19.5-20.5K Auto-tracking | 19.5-20.5K Auto Tracking |
| Watts | 20-1200W adjustable | 20-1800W adjustable |
| Random amplitude rod mm | Φ20 | Φ20 or 22 |
| Optional telescopic boom mm | Φ6、10、15、22、25 | Φ10、15、20、25、28 |
| Crushed Capacity ml | 10-1200 (with corresponding probe) | 50-1500 (with corresponding probe) |
| Input Method | Touch Control | Touch Control |
| Display Method | 7-inch TFT | 7-inch TFT |
| Display Content | Temperature, power, waveform, amplitude, pulse, and time—10 types of displays | Temperature, power, waveform, amplitude, pulse, and time, etc., 10 types of display |
| Protective Device | Self-diagnostic function, automatic error correction, overload and over-temperature protection display | Self-diagnostic function, automatic error correction, overload and over-temperature protection display, etc. |
| Login Password Protection | Available | Available |
| Computer Networking Function | Optional | Optional |
| Soundproofing box | Optional features include lighting, sterilization, and automatic lift functions. | Optional features include lighting, sterilization, and automatic lift functions. |
| Other Features | Data storage for 20 sets, printing, ultrasonic gap/continuous functions | Data storage for 20 sets, printing, ultrasonic gap/continuous functions |
3. Reference values for selecting ultrasonic various specifications of amplitude rods:
| Model: National Standard | British System | Frequency | Recommended Power Range Reference Value | Fragmentation Capacity Reference Value | |
| Φ2 | 1/12″ | 20-25KHz | min-150W | 0.2-5ml | |
| Φ3 | 1/8″ | 20-25KHz | min-250W | 3-10ml | |
| Φ6 | 1/4″ | 20-25KHz | 20-400W | 10-100ml | |
| Φ10 | 5/12″ | 20-25KHz | 100-600W | 30-300ml | |
| Φ12 | 1/2″ | 20-25KHz | 200-900W | 50-500ml | |
| Φ15 | 5/8″ | 20-25KHz 19.5-20.5KHz | 300-1000W | 100-600ml | |
| Φ20 | 4/5″ | 19.5-20.5KHz | 400-1100W | 100-1000ml | |
| Φ22 | 5/6″ | 19.5-20.5KHz | 400-1100W | 200-1000ml | |
| Φ25 | 1″ | 19.5-20.5KHz | 800-1500W | 500-1200ml | |
