Product Overview

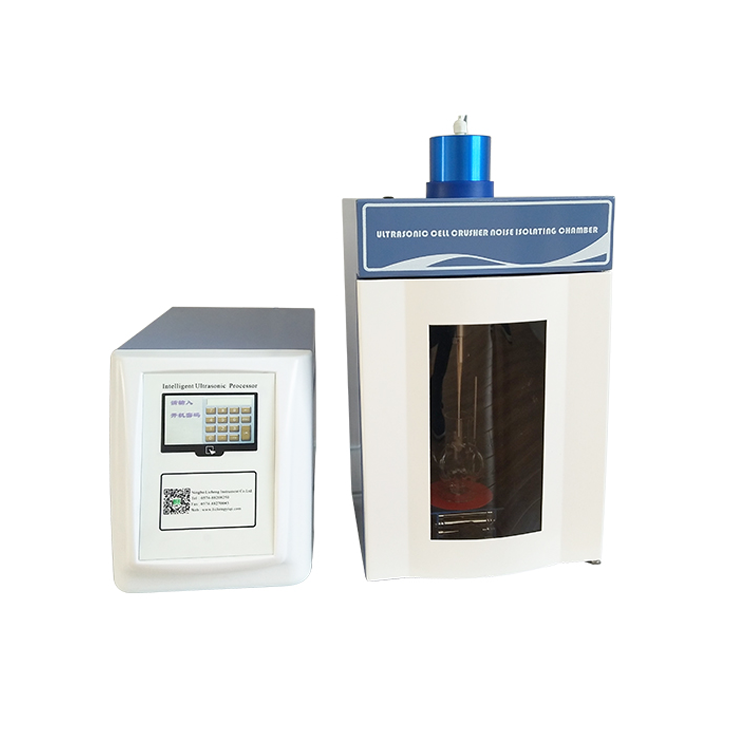

Ultrasonic Cell Disruption (Pulverizer) is a multifunctional and versatile instrument that utilizes intense ultrasound to generate cavitation effects in liquids, enabling ultrasonic processing of materials. It is capable of breaking down various animal and plant cells, as well as viral cells, and can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions. It is widely used in fields such as biochemical, microbiological, pharmaceutical, surface, physical, and zoological sciences.
2. Product Specifications
| Model | GH92-IIDN | GH92-IIN(LC-650Y) |
| Frequency KHz | 20-25K Automatic Tracking | 20-25K Auto-Tracking |
| Power W | 10-900W continuous adjustable | 10-650W Continuous Variable |
| Random variable rod mm | Φ6 | Φ6 |
| Optional adjustable reach rod mm | Φ2、3、8、10、12、15 | Φ2、3、8、10、12 |
| Crushed Capacity ml | 0.2-600 (with corresponding probe) | 0.2-500 (with corresponding probe) |
| Store Data | 50 sets | 50 sets |
| Temperature Alarm Range | 0-100 ℃ | 0-100 ℃ |
| Instrument protection feature | Over-temperature, over-effort, over-time | Over-temperature, Over-effort, Over-time |
3. Reference values for selection of various specifications of ultrasonic variable amplitude rods:
| Model: National Standard | British Standard | Frequency | Recommended Power Range Reference Value | Breakage Capacity Reference Value | |
| Φ2 | 1/12″ | 20-25KHz | min-150W | 0.2-5ml | |
| Φ3 | 1/8″ | 20-25KHz | min-250W | 3-10ml | |
| Φ6 | 1/4″ | 20-25KHz | 20-400W | 10-100ml | |
| Φ10 | 5/12″ | 20-25KHz | 100-600W | 30-300ml | |
| Φ12 | 1/2″ | 20-25KHz | 200-900W | 50-500ml | |
| Φ15 | 5/8″ | 20-25KHz 19.5-20.5KHz | 300-1000W | 100-600ml | |
| Φ20 | 4/5″ | 19.5-20.5KHz | 400-1100W | 100-1000ml | |
| Φ22 | 5/6″ | 19.5-20.5KHz | 400-1100W | 200-1000ml | |
| Φ25 | 1″ | 19.5-20.5KHz | 800-1500W | 500-1200ml | |
