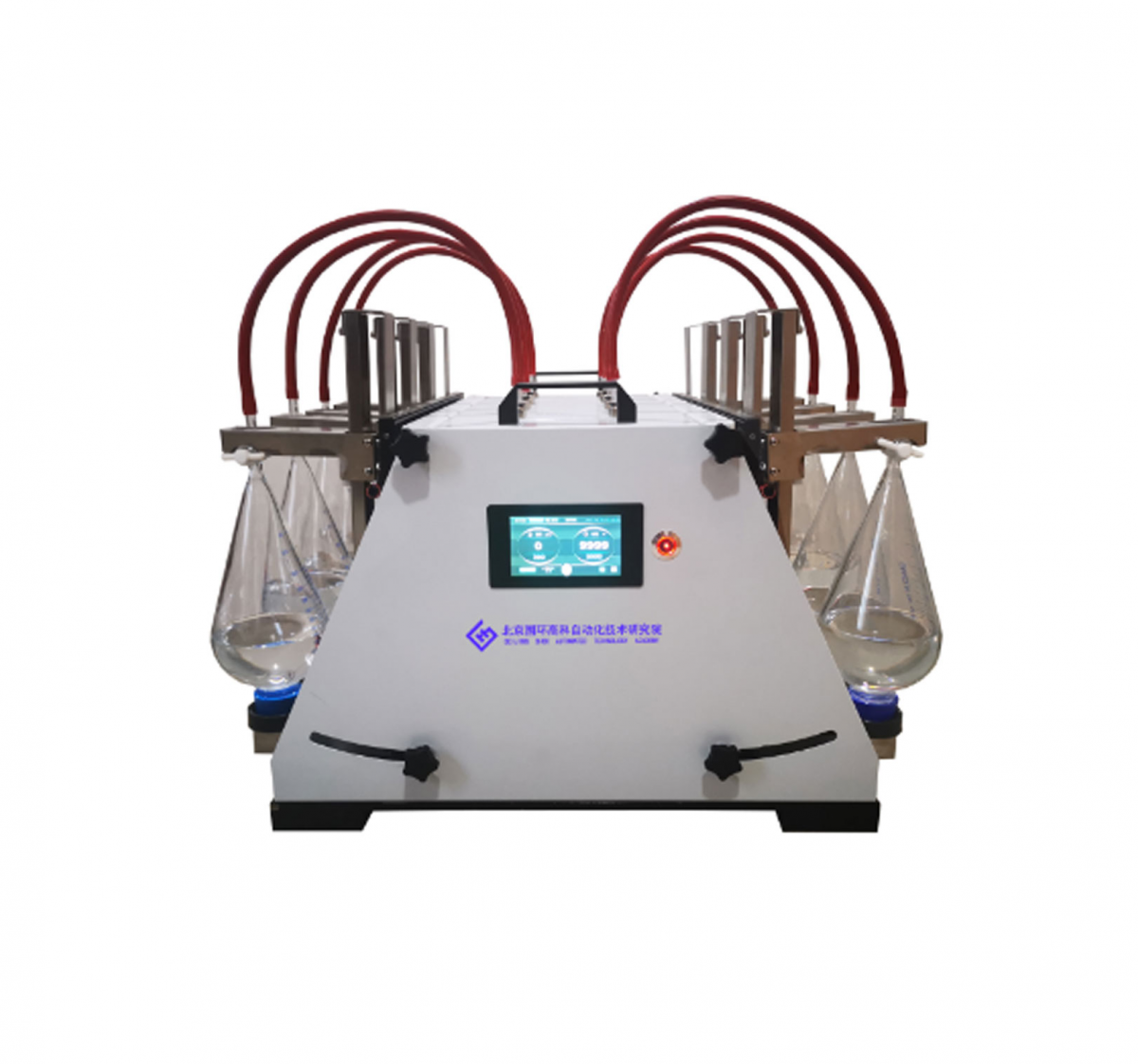

GGC-CQ Series Vertical Oscillating Separating Funnel Shaker

GGC-CQ Series Separating Funnel Vertical Oscillator automatically shakes the separating funnel, completing liquid-liquid extraction, sample mixing, and other experimental processes; all core components are original imported products, with a large amplitude, high speed, adjustable working time, and adjustable frequency; bulk sample processing, high efficiency, and high recovery rate; automatic degassing, greatly reducing operator contact with chemical reagents to ensure personal safety! Operation is stable and reliable with low noise!

Meets Standards:
Meets Standard: "HJ637-2018 Water Quality – Determination of Petroleum and Fats and Oils – Infrared Spectrophotometric Method"
Meets Standard: "GB/T16488-1996 Water Quality – Determination of Petroleum and Fats/Oils – Infrared Spectrophotometric Method"

Meets Standard: "HJ 1051-2019 Soil Determination of Petroleum Products by Infrared Spectrophotometry"

Meets Standard: "HJ 637-2018 Determination of Water Quality, Petroleum, and Vegetable Oils by Infrared Spectrophotometry"

Meets Standard: "HJ 970-2018 Determination of Water Quality Petroleum Class by Ultraviolet Spectrophotometry"

Instrument Features:
1. Oscillation Method: Vertical or inclined oscillation available, with an inclination angle of 0-20 degrees; graduated scale lines provided

2. Equipped with a servo motor, offering fast control speed

3. Operation Method: Touchscreen operation allows for simultaneous display of set speed, actual speed, set time, and remaining time on the same interface, eliminating the need to switch between screens for convenience and intuitive observation; the operating interface features an encrypted lock function to prevent repeated or accidental operations.

4. Variable speed, oscillation frequency range: 0-350 rpm, frequency accuracy ±1 rpm

Timer Duration: 0-99 hours

6. Elastic, infinitely adjustable, one-piece clamp, free sliding, suitable for separatory funnels, volumetric flasks, triangular flasks, stoppered graduated cylinders, colorimetric tubes, test tubes, centrifuge tubes, etc.

7. Sample Quantities: 6-digit, 8-digit, or 10-digit options available.

Sample Capacity: 0-1000ml or 0-2000ml available.

9. Vibration Amplitude: 0-40mm

10. Equipped with a protective shield, safe and worry-free to use.

11. Stainless steel design, acid and alkali resistant, corrosion proof.

12. Choose imported rod-type bearings for enhanced durability and reduced likelihood of damage.

13. Collect and discharge waste gas uniformly.

14. Optional separatory funnel for quick connection.

Applicable industries include:
Sample separation and extraction in environmental analysis experiments
2) Extraction of food and natural oils
3) Pesticide Residue Extraction
4) Extraction of harmful substances from soil
5) Extraction of Organic Pollutants from Water Quality
