Alcohol Recovery Distillation Tower
Product Series: Distillation Tower Equipment.
Application Range: Distilled Alcohol Recovery, Metallurgy, Light Industry, Textile, Pesticides.
Model and Specification: JH-3125
Product Material: Stainless Steel.
Product Features: Corrosion-resistant, high tensile strength, heat-resistant, and corrosion-resistant.

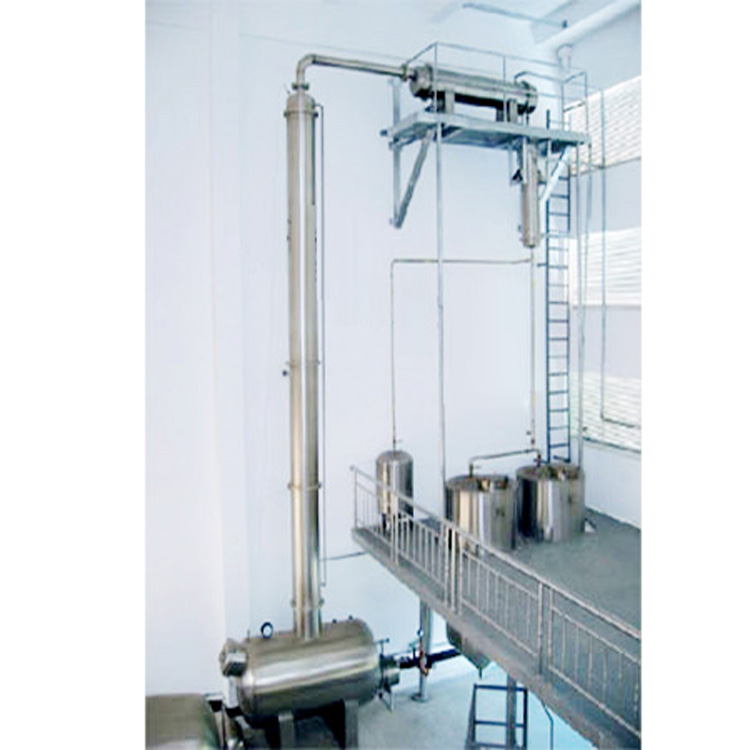

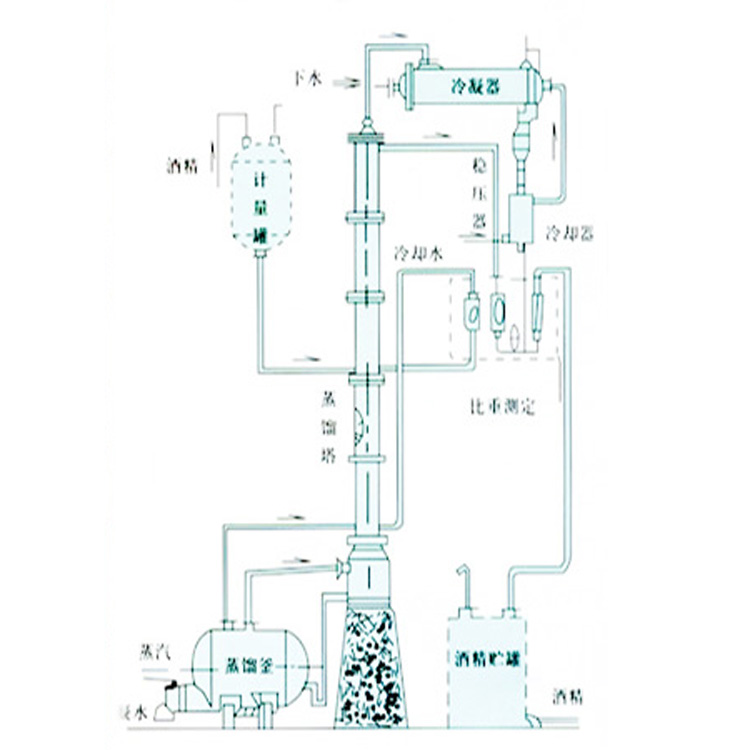

Product Description: An alcohol recovery distillation tower unit, consisting of six parts: tower kettle, tower body, condenser, cooler, buffer tank, and high-level storage tank. It is suitable for the recovery of dilute alcohol in the food and chemical industries. The equipment is made of stainless steel for the material section, offering excellent corrosion resistance and durability.
Distillation Standard Requirements
| Standard Requirements | JH200 | JH300 | JH400 | JH500 | JH600 | JH800 |
| Tower Capacity (L) | 640 | 1220 | 1450 | 2300 | 2500 | 3200 |
| Tower Height (mm) | 6000 | 7000 | 7000 | 7000 | 7500 | 7500 |
| High Position Tank Capacity (L) | 300 | 400 | 650 | 800 | 1000 | 1500 |
| Condensation Area (m²)2） | 5 | 9 | 11 | 18 | 25 | 45 |
| Cooling Area (m)2） | 1 | 1.5 | 2.2 | 4 | 6 | 8 |
| Heat Exchange Area (m²)2） | 3.0 | 6 | 6.5 | 10 | 15 | 26 |
| Recycling Capacity (kg/h) | 45-50 | 90-100 | 150-160 | 280-300 | 420-440 | 600-620 |
| Equipment Weight (kg) | 1100 | 1900 | 2300 | 3800 | 4500 | 6800 |
| Dimensions (Length x Width x Height) (mm) | 2300×700 ×7300 | 2600×800 ×7500 | 2500×1000 ×9000 | 3000×1200 ×9000 | 3500×1400 ×1000 | 4200×1800 ×14000 |
