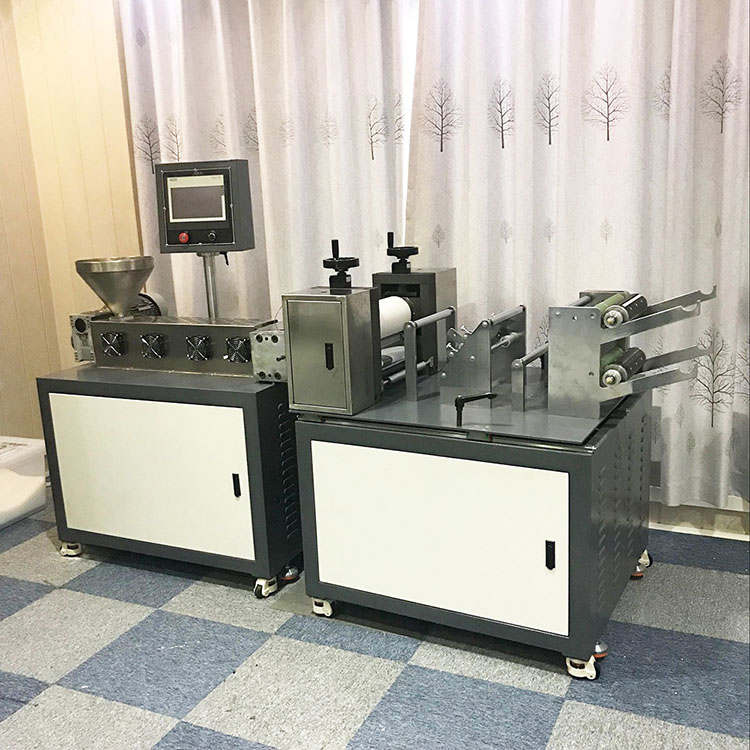

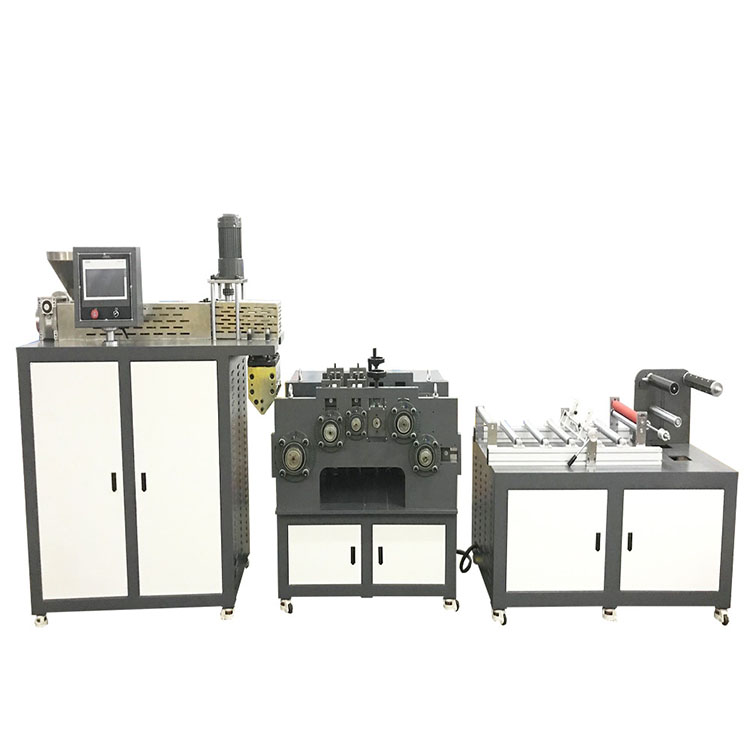

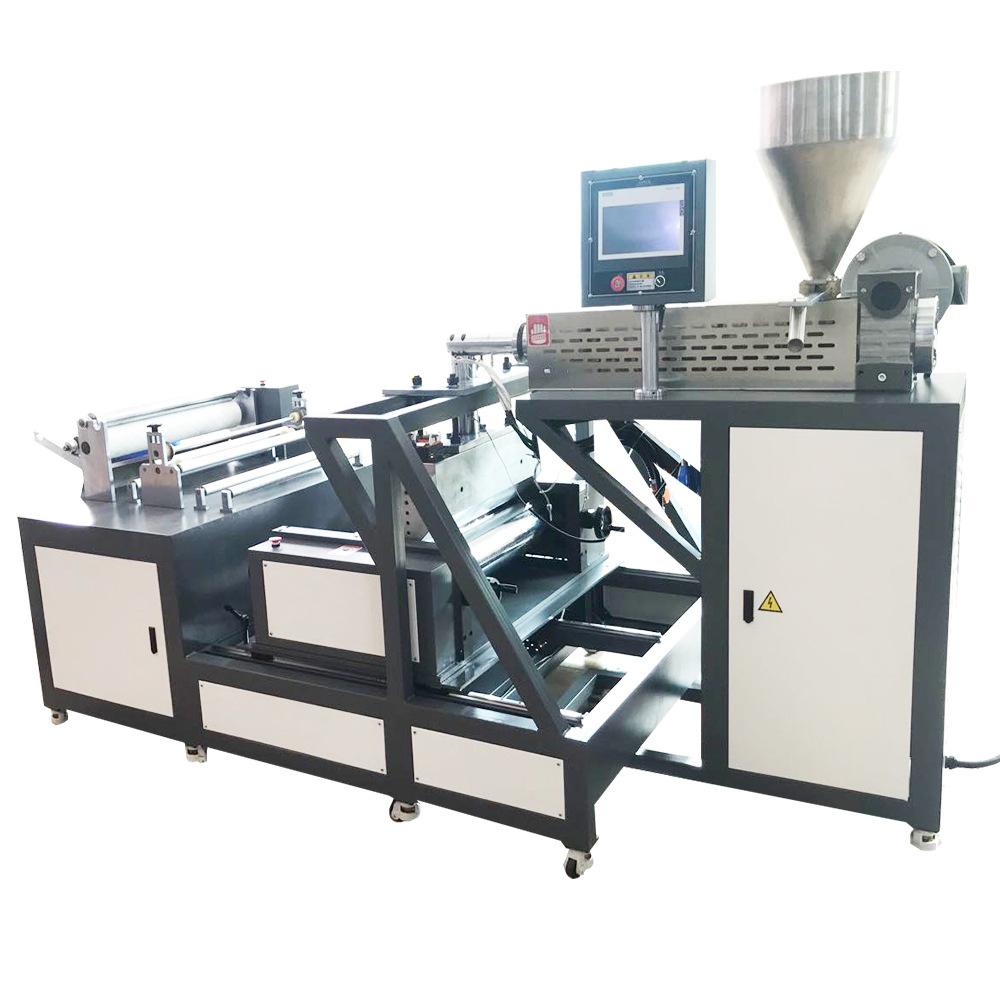

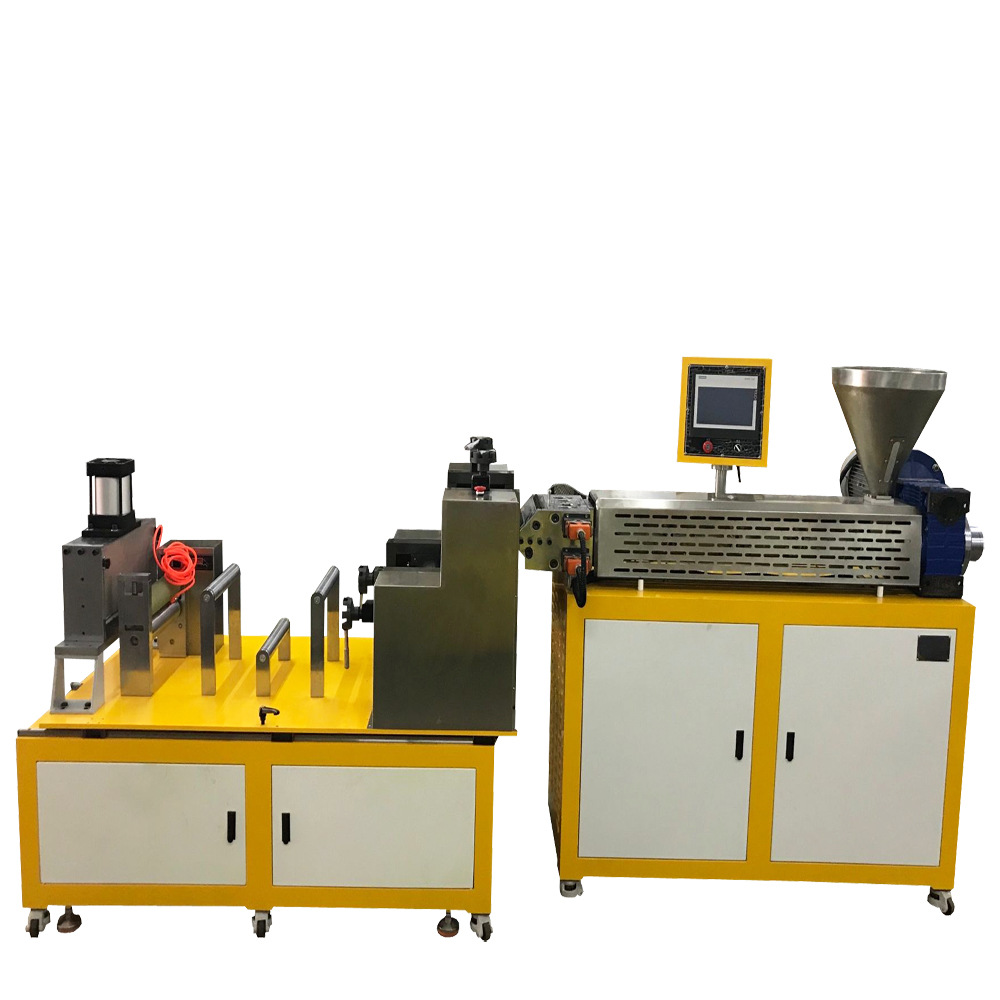

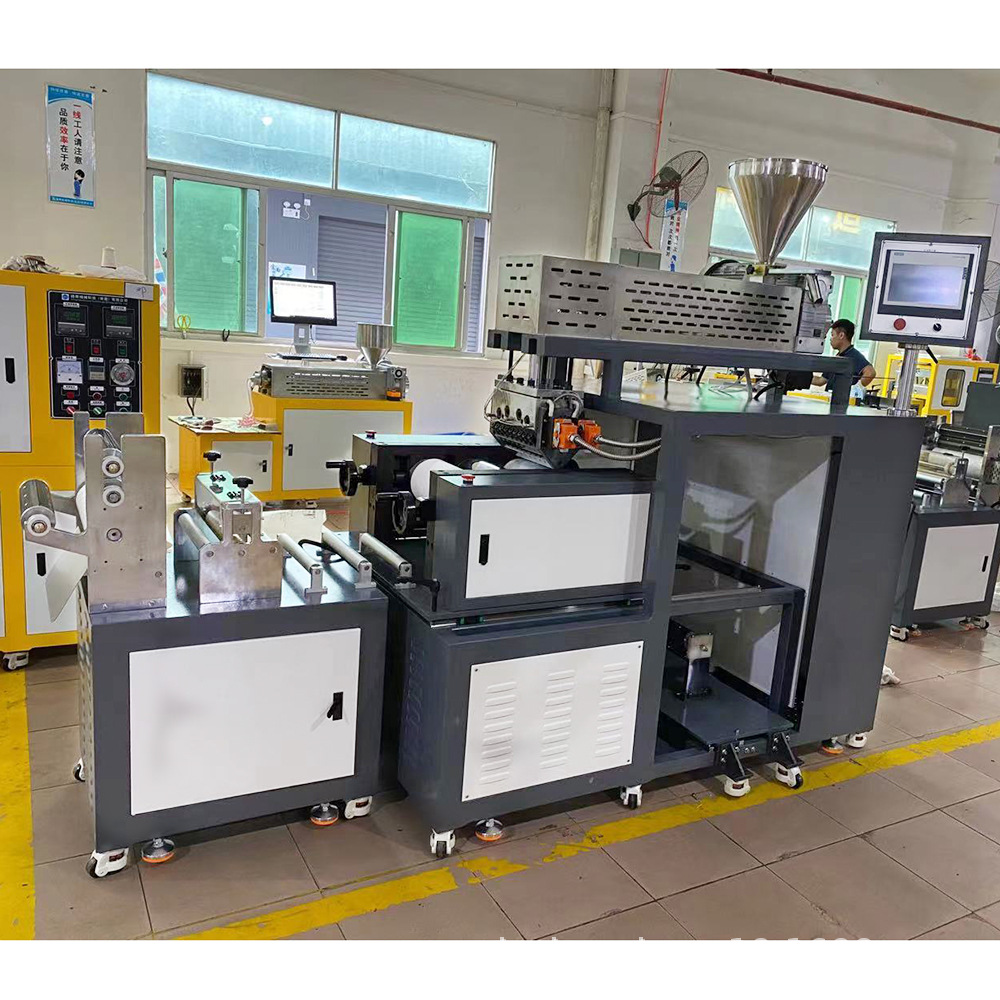

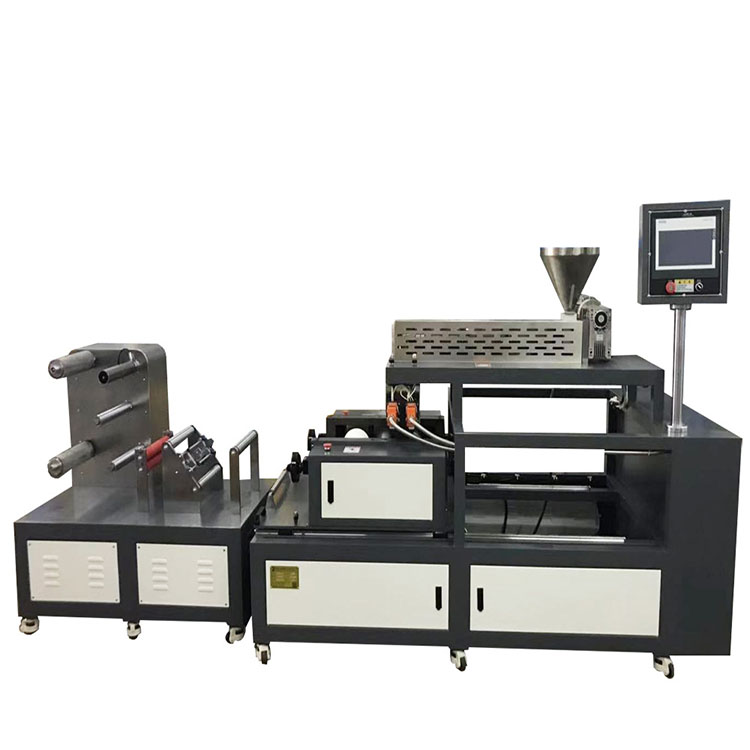

PETG Heat Shrink Film Cast Film Machine, EVA/POE/TPU/TPE Film Cast Film Machine

The working principle is: Logistics place the plasticized and extruded material into a die from the hopper, which then comes out through the main unit via a die head and is rolled into sheet form by a two-roll calender.

Bolt Diameter: 25mm

Length-to-diameter ratio: 33:1

Screw speed: 0-95rpm variable frequency speed control (Brand: Taiwan Delta variable frequency drive)

Heating Zone: Room temperature to 300 degrees Celsius, five zones of heating, including three zones with cast aluminum heaters and two zones with mold head heaters.

Cooling Zone: 3 sets of multi-blade fans for cooling

Electrical Control System: PLC programmable touch mode with a human-machine interface operation system, featuring dynamic display and monitoring capabilities including temperature control, speed, drive, pressure, flow rate. Offers seamless switching between control, automatic, and manual control functions, as well as interlock and联动 control features.

Volume (W×D×H): 1000×700×800mm

Power: 3φ, AC 380V

Weight: Approximately 175 kg
