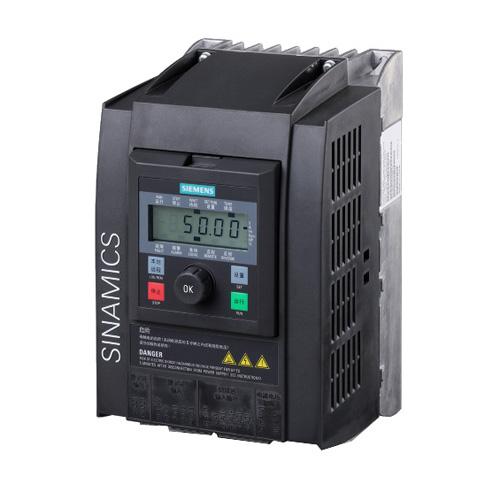

Siemens V10 Inverter Agent, Siemens V10 Inverter Price, The Siemens V10, SINAMICS V10, is a variable frequency device with a wide range of basic functions required by various industries. This inverter is cost-effective and easy to use; it features a high-reliability design, capable of handling harsh working conditions with ease. SINAMICS V10 is suitable for China's complex power network, particularly for applications involving electric pumps, fans, textile machinery, or other simple transmission systems. Siemens V10 Inverter Agent, Siemens V10 Inverter Price, Siemens V10

SINAMICS V10 Inverter Advantages Introduction

High Reliability:

- Operating Voltage Range: 400V ± 15% (three-phase AC)

- Protection Level IP21, circuit board design with protective coating;

- High-strength mechanical design, available for direct push-in installation.

- New cooling function design, fan-free, meeting the requirements for fault tolerance applications.

Easy to tune

- 10 settings cover a range of connection modes; 6 macro commands for easy adaptation to various applications.

- BOP panel supports Chinese and features powerful parameter cloning function.

Easy installation:

- Standard connector design (with marking)

-BOP supports cabinet door installation and features a robust parameter cloning function.

SINAMICS V10 Inverter Technical Data

Voltage Range

Power Range

0.55 kW ~22 kW

Work Environment

0°C to +60°C

Control Method

Linear V/f control (with programmable voltage start function), square V/f control; flux current control (FCC)

Output Frequency

0Hz ~ 300Hz

Carrier Frequency

2kHz ~ 16kHz

Digital Input/Output

3 Digital Inputs / 1 Digital Output

Analog Input/Output

1-point analog input / 1-point analog output (voltage or current type)

Overload capacity

Up to 150% rated current, duration of 60 seconds; repeat cycle time of 300 seconds.

Built-in features

Controllers, rapid current limiting (FCL), torque start, automatic restart, rapid start, etc.
