K-type compensating wire, 2*1.5mm², application
Thermocouple compensating wire and cable (high-temperature resistant) are insulated conductors with a nominal value of the matching electromotive force within a certain temperature range (including high and normal temperatures). They are used to connect thermocouples to measuring devices, compensating for the temperature variations at the connection point with the thermocouple to minimize errors. This product is suitable for electrical connections between various types of thermocouples (S, K, E, T, J, N) and temperature indicating instruments, enhancing measurement accuracy.
K-type compensating wire, 2*1.5, application conditions
Operating Temperature
Heat-resistant: 200℃ and 260℃ versions available.
Generally used: 70℃ and 105℃.
(2) Environmental Temperature: Fluoroplastic insulated and sheathed cables – Fixed installation: -60℃, Non-fixed installation: -20℃; PVC insulated and sheathed cables – Fixed installation: -40℃, Non-fixed installation: -15℃.
(3) Bend Radius: Non-armored cables with PVC insulation and sheath shall have a radius not less than 6 times the cable outer diameter, cables with fluoroplastic insulation and sheath shall have a radius not less than 10 times the cable outer diameter, and armored cables shall have a radius not less than 12 times the cable outer diameter.
K-type compensating wire, 2*1.5 variety, specifications, structural type
Product Name | Model | Thermocouple compatible | Thermocouple Type Number |
Copper-Nickel Compensating Wire (Cable) | SC | Platinum Rhodium 10-Platinum Thermocouple Platinum Rhodium 13 - Platinum Thermocouple | S |
Iron-Copper-Nickel Compensation Wire (Cable) Copper-Nickel Compensating Wires (Cables) | KCA KCB | Nickel-Chromium-Nickel-Silicon Thermocouple | K |
Nickel-Chromium-Nickel Silicide Extended Wire (Cable) | KX | Nickel-Chromium-Nickel-Silicon Thermocouple | K |
Iron-Copper-Nickel Compensating Wire (Cable) Nickel Chrome Silicon-Nickel Silicon Extended Wire (Cable) | NC NX | Nickel-Chromium-Silicon-Nickel-Silicon Thermocouple | N |
Nickel Chrome-Copper Nickel Extended Type Wire (Cable) | EX | Nickel-Chromium-Copper-Nickel Thermocouple | E |
Iron-Copper-Nickel Extended Type Wires (Cables) | JX | Iron-Copper-Nickel Thermocouple | J |
Copper-Nickel Extended Wire (Cable) | TX | Copper - Constantan Nickel Thermocouple | T |

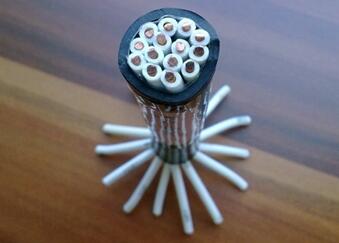

K-type compensating wire, model: 2*1.5
Model | Name |

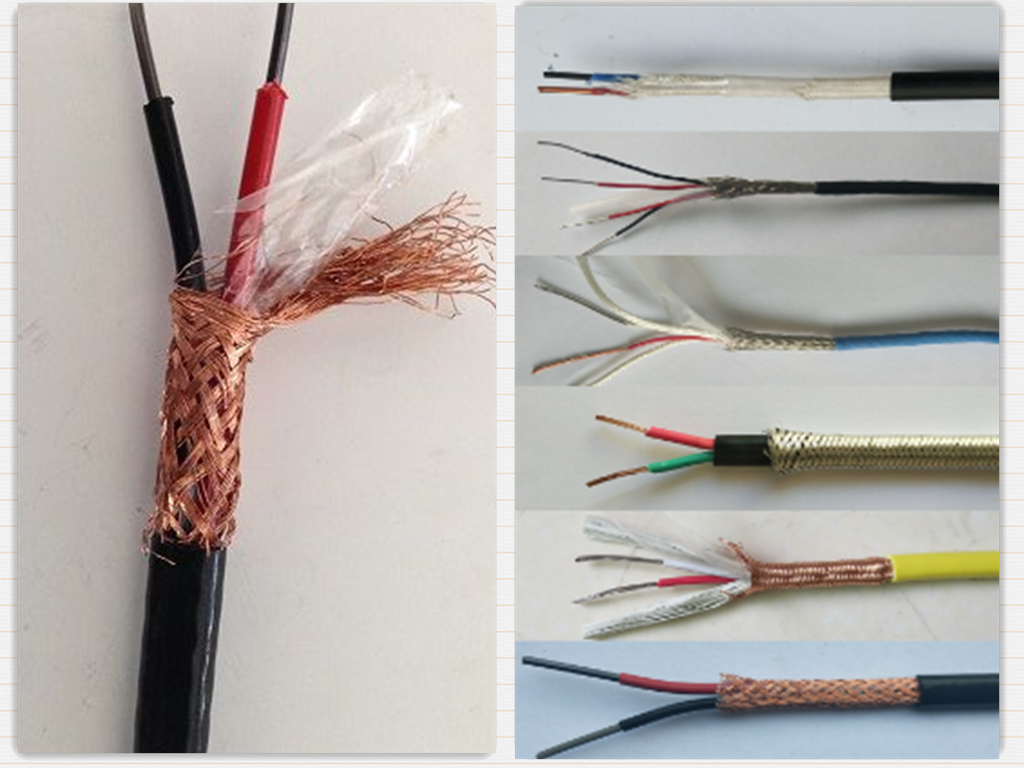

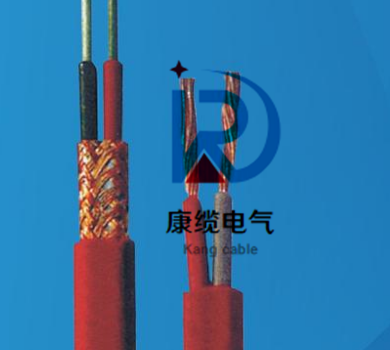

KX-VV | PVC insulated and sheathed K-type thermocouple compensating cables |
KX-VPV | PVC insulated and sheathed copper wire braided shielding K-type thermocouple compensating lead wire |
KX-FF | Fluoroplastic insulated and sheathed thermocouple compensation wires for K type thermocouples |
KX-FPF | Fluoroplastic insulated and sheathed copper wire braided shielded K type thermocouple compensating lead wire |
KX-FV-105 | Fluoroplastic insulated heat-resistant 105℃ PVC sheath K-type thermocouple compensating cable |
KX-FPV-105 | Fluoroplastic insulated copper wire braid shielding, heat-resistant up to 105°C, PVC sheathed, K-type thermocouple compensating wire |
KX-HF4B | PTFE insulated glass fiber braided sheath K-type thermocouple compensating cable |
KX-HF4PB | PTFE insulated copper wire braid shield, glass fiber braid sheath, K type thermocouple shielded compensation wire |
Note: ① Other models of compensation wires SC, KC, EX, JX, TX, NC, NX, etc., only need to modify the * item of the model, such as: EX-VVP.
② Shielding Types: P: Copper Wire Shielding, P1: Tin-Plated Wire Shielding
③ Fluoroplastic insulated and sheathed high-temperature compensation wires are made by a continuous extrusion of fluoroplastic, offering excellent electrical properties and resistance to acids, alkalis, oil, and water; ④ Generally, specify (G) standard grade and precision grade (S) compensation wires, as well as (H) standard grade and precision grade (S) heat-resistant compensation wires when placing an order.
