I. Overview of Steel Reinforced Truss Deck

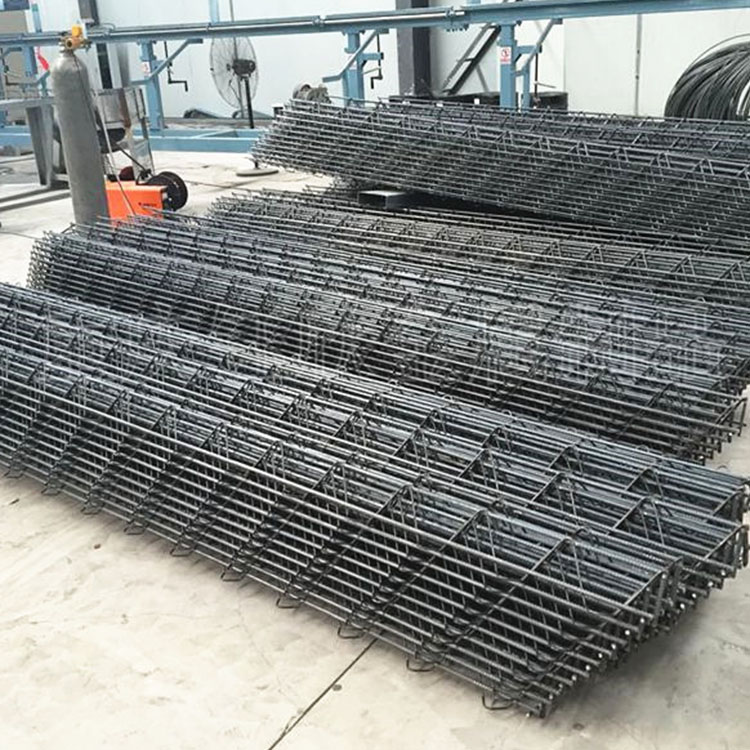

　　                 Reinforced truss floor decks are a composite template formed by processing the steel rebars in the factory into steel truss structures and welding them together with galvanized corrugated steel sheet molds. During the construction phase, the steel rebars...

                Joist deck girders can bear construction loads, be directly laid on beams, and simple steel reinforcement work is sufficient for concrete pouring. As they completely replace the formwork function, they reduce the need for formwork installation and dismantling labor.

                Process has significantly improved floor construction efficiency.A floor deck product that enhances customer value,We have eliminated factors that contribute to increased material costs.,Change the application of the pressed steel plate, to only be used as a floorboard

               Templates during the construction phase, reducing the amount of corrugated steel sheet used, and lowering the requirements for the stable plating performance of the corrugated steel sheet. We have altered the load-bearing pattern of the deck sheet during construction.,During the construction phase by corrugated

               Steel plate stiffness is now provided by reinforced trusses, offering enhanced floor deck stiffness to accommodate larger unsupported floor spans. We have reduced the costs for our customers' future maintenance.,Pressure

               Sheet steel is only used as a formwork during the construction phase; no treatment is required for its stability, and it does not need to meet the lifespan requirements for building use, thus there is no need to consider maintenance costs later on.

Section 2: Advantages of Steel Rebar Truss Floor Deck

　　(1)Economic

The steel truss has a reasonable load-bearing pattern, is cost-effective in material selection, and boasts a significant cost advantage in overall construction.

Adjustable truss height and steel bar diameter for suitabilityetUsed for wide spans of floor joists

Can be designed as a two-way board

　　 (2)Convenient

Field reinforcement binding work volume can be reduced60%-70%Further shortening of the project timeline is possible.

The truss loading pattern can provide greater floor deck stiffness, significantly reducing or eliminating the need for temporary supports.

　　(3)Safety

Mechanical properties are essentially the same as traditional cast-in-place floor slabs, with excellent crack resistance for the floor.

The fire resistance is comparable to traditional cast-in-place floor slabs and superior to composite steel deck floor slabs.

The bottom mold is not subjected to stress during the usage stage, so there is no need to consider fire resistance and corrosion prevention issues.

　　(4)Reliable

Rebar is evenly arranged, with reliable guarantees for the spacing between layers of rebar and the thickness of the protective layer.

Double discount edge lap design, effectively ensuring the construction quality of composite flooring.

　　Steel reinforcing truss deckSimilar bidirectional stiffness benefits seismic resistance in buildings.

Screw pin welding quality is easier to ensure.

Roof Decking Product Development History

     Section 3:TDV、TDMProduct Introduction: I-Beam Truss Floor Deck

                TDV、TDMA type steel truss floor deck involves fabricating the steel reinforcement into a truss at the factory and then welding it to the zinc-coated steel sheet bottom mold, creating a combined formwork.                    During the construction phase, steel truss deck can bear construction loads and be directly laid on beams, with only simple reinforcement work required to pour concrete. As it fully replaces the formwork function, it reduces the board...           Erecting and dismantling projects, with excellent improvements, have enhanced the efficiency of floor construction.

        IV. Product Composition

                TDV、TDMH-beam truss floor deck is composed of top chord steel bars, bottom chord steel bars, web steel bars, base form, and support steel bars.

        V. Material Parameters

                 Top and bottom rebars: Hot-rolled coil rebars with a good reputationHRB400Grade or Cold Rolled Ribbed Reinforcing BarCRB550Grade.

                 Hollow steel bar rebar: Cold-rolled smooth rebar used.

                 TDV、TDMType Bottom Molding Steel Sheet: Zinc-coated steel plate commonly used thickness0.4～0.5mmGauge of double-sided galvanized coating120g/m2。

         Section 6: Product Dimension Parameters:

       Section 7:TDMAdvantages of Type Steel I-Beam Truss Deck:

              Excellent weld joint bearing capacity

             "M"Type upright rib width reaches2-3mm, weld point bearing capacity for the steel rebar web members is approximately equal to that of ordinary"V"Lipped plate weld joint load-bearing capacity1.5 Multiple times.

              Effective and stable performance

              The distance from the steel truss to the welding point of the bottom form is approximately5mmThe bottom mold surface is free of weld points, preventing rust spots, and boasts superior corrosion resistance.TDV Type steel truss floor deck, eliminating the possibility of future maintenance.

              Prevent leakage of paste

              Since there are no welding points on the base mold, there are no holes that can be焊接through, preventing any leakage of the welding material.

              TDMApplications for Type Steel Truss Deck Plates

                     Can be used in high-purity factory buildings without suspended ceilings, in laboratories, computer rooms, information centers, etc. with higher requirements for indoor air quality, and in environments with specific humidity and salinity levels.                 High coastal city usage; buildings without suspended ceilings, exposed public structures; high-rise office buildings of superior quality sold directly before ceiling decoration.

               TDVSteel I-Beam Truss Deck Application Industry

                       For multi-story steel structures with little demand for ceiling effect, or for public buildings with suspended ceilings.

           8Application Solutions:

                      High-rise, high-rise structure

                              High-rise buildings and structures not only demand strict quality standards for their construction but also have specific requirements for project timelines and on-site safety. Reinforced truss floor decks offer the dual functionality of construction templates and load-bearing capabilities.                          Reinforcement bar"Dual Role"High-rise buildings utilize reinforced truss deck plates, which enable the creation of multiple relatively independent and safe working surfaces, maximizing advantages in high-rise and super-high-rise construction.                        Enhanced construction progress.

                      Bi-directional board structure

                               Compared to corrugated steel sheets, designing and constructing bidirectional panels is highly beneficial for reinforced steel truss floor decks. Without increasing the floor thickness, reinforced steel truss floor decks can be installed on-site                           Tie reinforcement in both directions, making it easy to meet the requirements of two-way slab design.

                     Large-span structure (with support solutions)

                             In large-span applications, to save costs, the steel truss floor deck can use smaller-sized steel rebars. During construction, a simple temporary setup is placed in the middle of the floor span prior to pouring concrete.                       Supports are provided to meet construction requirements while also ensuring the floor strength meets the usage stage requirements.

                     Large Span Structure (Without Support Scheme)

                              Steel truss floor deck, thanks to its technically rational mechanical design, by appropriately adjusting the steel bar specifications, can achieve5mUnsupported large panel cross design requirements. In practical application, it can accelerate implementation.                        Efficient work progress, cost savings in construction.

                      Thick plate design

 For300mmAbove-thickness floor slabs can be designed using reinforced truss floor decks to reduce or eliminate temporary supports, thereby accelerating the construction progress.

                       The use of steel truss floor slabs in multi-story reinforced concrete structures can reduce the workload for on-site formwork installation and removal, minimize labor costs, and significantly accelerate the project timeline.

                      Reinforced concrete or steel frame residential projects

                              Such structures generally have higher requirements for the decoration effect of the floor slab bottom surface, necessitating plastering work and employing multidimensionalTDDDetachable steel truss deck assembly can effectively address                          This challenge meets the requirement for construction speed in steel structure projects while also allowing for the removal of the bottom form after floor construction, achieving a satisfactory finishing effect.

                      Circular, Elliptical, Other Shapes

                                These types of structural floor slabs are typically designed as two-way slabs, which not only bear vertical loads but also horizontal tensile forces; in addition, due to the irregular shape of the structure, the support issues for floor construction often arise.                         Difficulties in construction can be effectively addressed by using steel truss floor deck.

                      Sloped roof structure

   For sloped roofs, reinforced truss deck panels can be used for roof covering. The deck panels can be laid either along the slope or parallel to it, both are feasible. The roof must undergo stable performance treatment.
