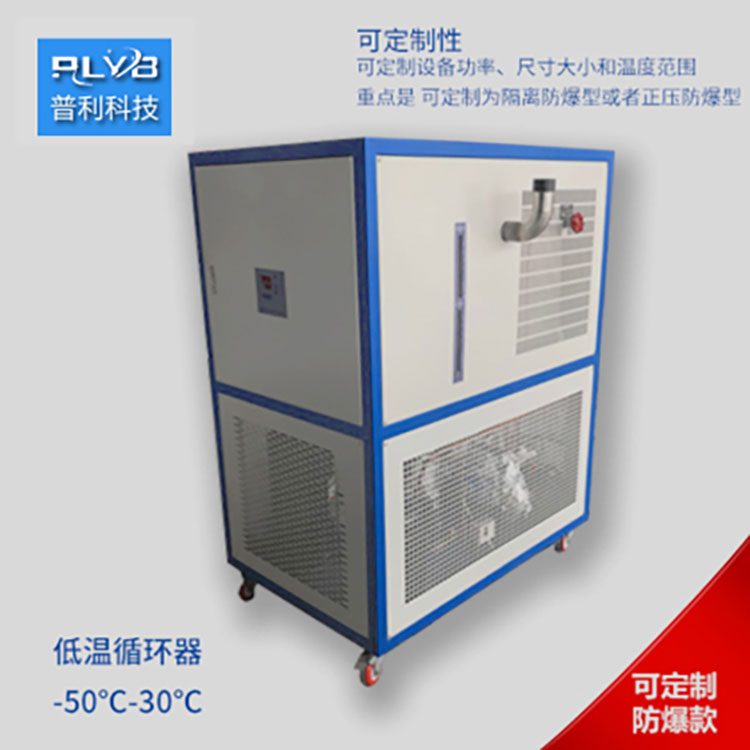

Low Temperature Circulator -50~30℃
主要用于需要超低温循环冷却液体的低温反应釜夹套，适用于维持低温工作条件的反应；can be paired with 20L, 50L, 100L double glass reaction vessels to cool the contents inside.
Applicable to environmental tests in aerospace and aviation, heat sink tests, low-temperature reactors in the chemical industry, purification of special gases, and equipment such as low-temperature distillation, rectification, and extraction in the chemical industry.
Features include self-diagnosis; overload protection for the refrigerator; high-pressure pressure switch, overload relay, thermal protection device, low liquid level protection, high-temperature protection, sensor failure protection, and a variety of safety functions.
The entire system is fully enclosed, with no oil mist at high temperatures and no absorption of air moisture at low temperatures. The system does not increase pressure due to high temperatures during operation, and automatically supplements the heat-conducting medium at low temperatures.
Product Specifications
Low Temperature Circulator (-50℃ to -30℃) | ||||||
Model | PLD-Ⅲ/10 | PLD-Ⅲ/30 | PLD-Ⅲ/50 | PLD-Ⅲ/100 | PLD-Ⅲ/150 | PLD-Ⅲ/200 |
Medium Temperature Range | -50℃-30℃ | |||||
Control Mode | PID Control | |||||
Communication Protocol | MOUBUS RTU Protocol RS-485 Interface | |||||
Physical Feedback | Thermal Conductive Medium Temperature Feedback PT100 | |||||
Material Temperature Control Accuracy | ||||||
Cooling Capacity -10℃ | 1.5KW | 3.2KW | 4.5KW | 6.2KW | 8.5KW | 12KW |
Cooling Capacity -20℃ | 1.2KW | 2.7KW | 3.8KW | 5.5KW | 7.2KW | 10KW |
Cooling Capacity -45℃ | 0.4KW | 0.75KW | 1.15KW | 1.5KW | 2.1KW | 3.2KW |
Recirculating pump flow and pressure | Max20L/min 1.5bar | Max20L/min 1.5bar | Max35L/min 1.5bar | Max35L/min 1.5bar | Max75L/min 1.5bar | Max75L/min 1.5bar |
Volume | 15L | 17L | 25L | 25L | 40L | 60L |
Compressor | Tai Kang | Tai康 | Tai Kang | Tai康 | Tai康 | Tai Kang |
Evaporator | Finned | |||||
Filter | Emerson | Emerson | Emerson | Emerson | Emerson | Emerson |
Expanding valve | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss |
Electromagnetic Valve | Emerson | Emerson | Emerson | Emerson | Emerson | Emerson |
Safety Protection | Features include self-tuning function; overload protection for the refrigerator; high-pressure pressure switch; overload relay; thermal protection device, and various other safety functions. | |||||
Sealed Recirculation System | The entire system is a fully enclosed system. It will not produce oil mist at high temperatures, will not absorb moisture from the air at low temperatures, and will not increase pressure due to high temperatures when not in operation. It automatically replenishes the heat-conducting medium at low temperatures. | |||||
Refrigerant | R-404A | |||||
Cooling Mode | Water-cooled or Air-cooled | |||||
Power Supply | 220V 50Hz or 380V 50Hz | |||||
Optional power supply | 220V 60Hz or 380V 60Hz | |||||
Shell Material | Cold rolled steel with powder coating (optional 304SS) | |||||
Dimensions | 600*350*880 | 720*620*920 | 720*620*920 | 750*650*980 | 750*650*1350 | 750*650*1400 |
Customization supported
