Certificate Template:
NCC Certification Mark Proportion Description
Label or cast in the appropriate size proportion on the equipment's body location; no specific size requirements for "z large" or "z small," clarity is the principle.
2. The NCC mark, along with the inspection number, should be affixed to the product as required, with a single color scheme, ensuring it is clear and easily recognizable.
Inspection Passed Label Sample
To accommodate the streamlined customs clearance needs in Taiwan, as of January 1, 1995, the revised model of the inspection and approval label for telecommunication radio frequency equipment and telecommunication terminal devices is as follows: For low-power radio frequency motors and wireless telecommunication terminal devices with inspection and approval numbers obtained before December 31, 1994, the approval number must be converted to the new coding format for the 1995 fiscal year (customs clearance code).
NCC Certification Process
1. The principal provides product information for the agency to assess and quote.
2. Client confirms receipt of the quoted price, fills out the application form, provides samples and materials, arranges for the payment (initial payment), and the agency initiates the case.
3. Schedule product forecasts and review documents.
4. In case there are issues with the test or documents, arrange for corrections and retesting until they meet the required standards.
5. Upon passing the testing and review of the documents, the certifying body conducts an on-site inspection.
6. Upon completion of the witnessing test, the certifying authority issues the test report and grants the certification.
7. Client pays the final payment, receives the certificate report, and the case is closed.
NCC Certification Preparation Materials
Product circuit diagram
2. Product block diagram
3. Product specifications document
4. Product manual;
5. Bill of Materials (BOM)
6. Service Application Form
7. Factory ISO9001 Certificate
8. Antenna Specifications Sheet.
NCC Certification Application Cycle
NCC certification application process takes 3-4 weeks, with fees determined based on product information.
NCC Factory Inspection and Certificate Validity
NCC certification has no factory inspection requirement, and the certificate has no expiration date. As long as the product remains unchanged and the testing standards are not updated, the certificate remains valid indefinitely.

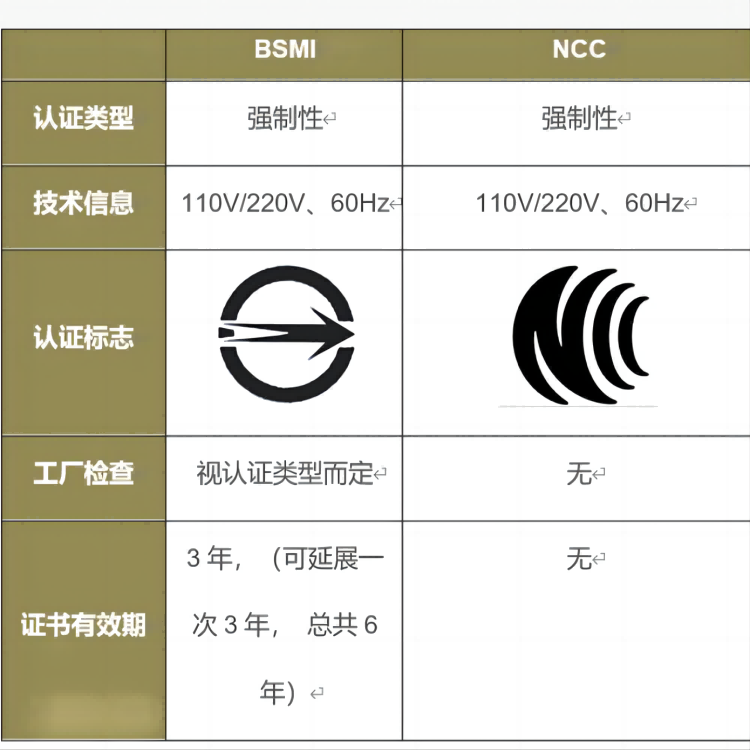

NCC Certification vs. BSMI Certification
NCC Certification Introduction
NCC is the Taiwan Communications Commission (The National Communications Commission).NCC (National Communications Commission) acronym, primarily governing communication equipment circulation and usage in the Taiwan market:
LPE: Low Power Equipment, referring to low power equipment (e.g., Bluetooth, WIFI devices)
2. TTE: Telecommunications Terminal Equipment, which stands for Telecommunications Terminal Equipment (e.g., mobile phones, tablet-like devices).
NCC Certification Product Range
Low-power radio frequency (RF) motors operating at frequencies between 9kHz and 300GHz, including products such as wireless network (WLAN) devices (including IEEE 802.11a/b/g), UNII, Bluetooth products, RFID, ZigBee, wireless keyboards, wireless mice, wireless headphones/microphones, two-way radios, wireless remote-controlled toys, various wireless remote controls, and various wireless anti-theft devices.
2. Public Switched Telephone Network (PSTN) equipment, including wired telephones (with VOIP network phones), automatic alarm systems, answering machines, fax machines, remote control devices, cordless main and sub-handsets for wired telephones, push-button telephone systems, data equipment (including ADSL equipment), incoming call display terminals, and 2.4GHz radio frequency telecommunications terminals.
3. Land Mobile Network (PLMN) equipment, including Wireless Fidelity Broadband (WiMAX) terminal equipment, GSM 900/DCS 1800 mobile phones and terminal equipment (2G phones), and third-generation mobile communication terminal equipment (3G phones).
