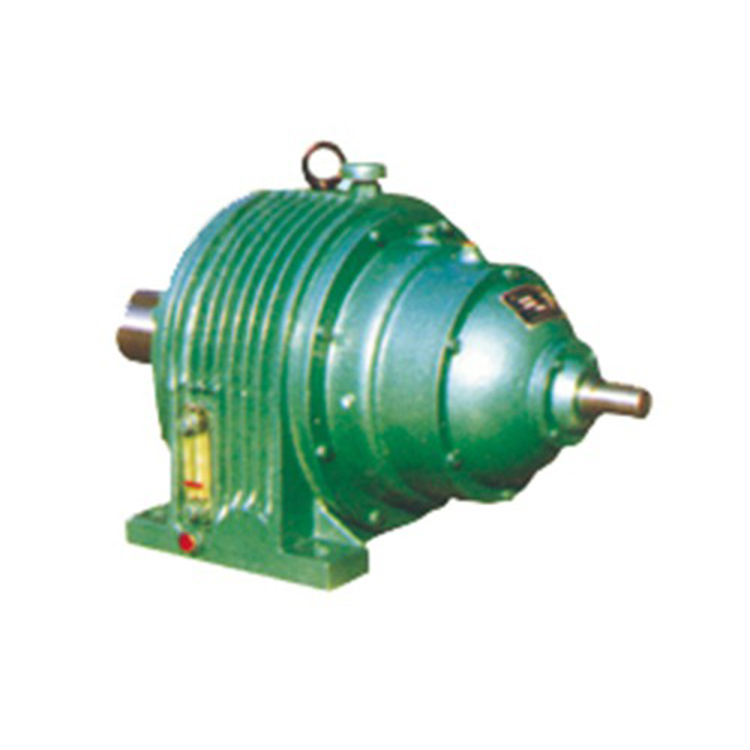

The NGW series planetary gear reducer is suitable for industries such as mining, metallurgy, lifting and transportation, textile, chemical, and light industry.
Features:
(1) Lightweight and compact, it can reduce the weight by over 1/2 and the volume by 1/2 to 1/3 compared to a standard cylindrical gear reducer under the same conditions.
(2) High transmission efficiency: single-stage transmission reaches 0.97~0.98, two-stage 0.94~0.96, and three-stage 0.91~0.94.
(3) Wide power transmission range, from less than 1 kilowatt to 1300 watts.
(4) Smooth operation, low noise, durable, and long-lasting.
Applicable Conditions:
(1) The maximum rotational speed of shaft Z should not exceed 1500 RPM.
(2) The circumferential speed of the gears must not exceed 10 meters per second.
(3) Operating temperature is -40℃ to +45℃.
(4) Can operate in both clockwise and counterclockwise directions.
