PCB recycling and processing equipment can handle waste circuit boards, computer boards, TV boards, aluminum-plastic boards, copper-clad boards, and printed circuit boards, among other electronic waste. It separates metals and plastic fibers from the waste, facilitating the effective recycling of metals.

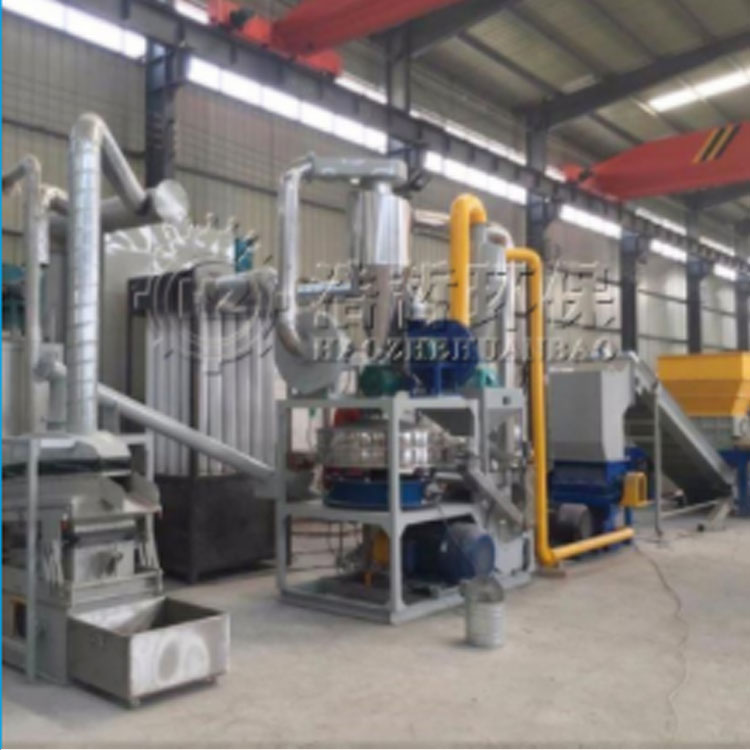

The PCB recycling and processing production line adopts a two-stage crushing method for waste PCBs, converting them into a mixture of metal and resin fiber powder; followed by a process route that separates the metal from the resin through wind and static separation. To prevent dust pollution during the processing, a pulse dust removal unit is added after the air flow separation stage, effectively resolving the dust pollution issue.
Operating Principle

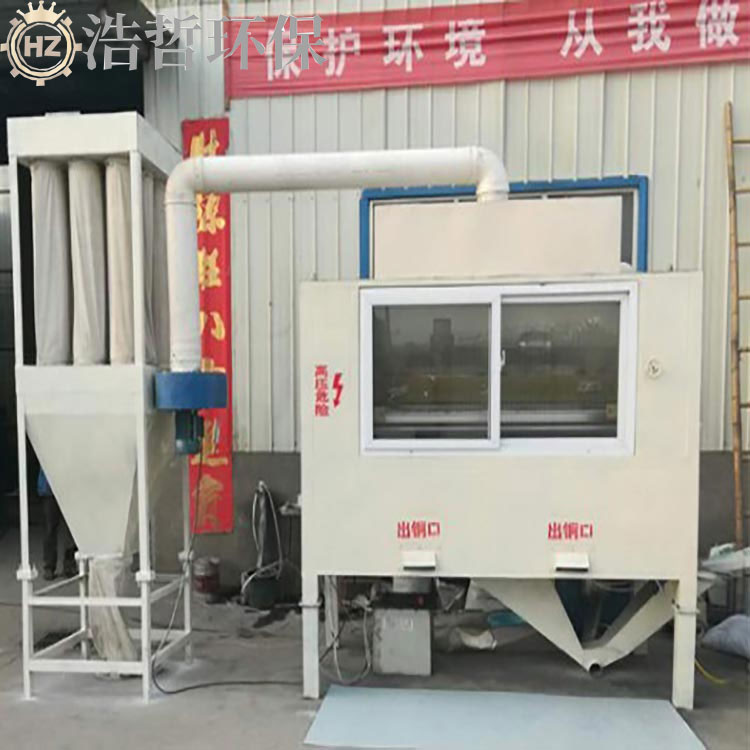

The circuit board separation equipment utilizes electrostatic separation technology for metal sorting. The principle is to take advantage of the differences in material's conductivity. In a composite electric field combining a high-voltage corona discharge field and a high-voltage static electric field, under the influence of electrical and mechanical forces, it achieves the separation of materials. It enhances the attraction of the static electrode for conductors and the repulsion for non-conductors. A high-frequency alternating strong magnetic field is generated on the surface of the sorting magnetic roller. When conductive non-ferrous metals pass through the magnetic field, eddy currents are induced within them. These eddy currents produce a magnetic field opposite to the original field. Non-ferrous metals (such as copper, aluminum, etc.) are then repelled by the magnetic field's force and leap forward along their conveying direction, achieving separation from other non-metallic materials, thereby accomplishing the sorting goal. The main criterion for differentiation is the ratio of the material's conductivity and density; materials with a higher ratio are easier to separate.
Equipment Features
1. Added an automatic control unit, ensuring the entire process flows smoothly, reducing manual operations, lowering energy consumption, achieving pollution-free emissions, and enhancing work efficiency.
2. Excellent overall performance, with unique effects on computer boards, computer boards, TV boards, and other circuit control boards. Also exhibits compatibility in recycling various circuit boards containing capacitor components.
3. This production line is an upgraded and replaced model of wind selection products, featuring a smaller footprint, and is currently the ideal production line for recycling and utilizing waste electrical (wire) circuit boards.
4. The complete set of equipment utilizes a modern dust collector with a three-in-one dust removal system (cyclone dust removal + electrostatic dust removal + static dust removal), ensuring no air pollution and zero waste gas emissions.
5. The equipment features a clean appearance, flexible installation, and easy operation.
Equipment Advantages
1. Excellent comprehensive performance with unique effectiveness for recycling computer boards, computer circuit boards, TV boards, and other line control boards. Also offers compatibility for recycling various circuit boards containing capacitor components.
2. This production line is an upgraded version of the A-type product, featuring reduced energy consumption, no noise, minimal labor, high automation, increased efficiency, and a smaller footprint. It is currently the ideal production line for recycling and utilizing waste printed circuit boards (PCBs).
3. The complete set of equipment features a new-style dust collector, a three-in-one dust removal system (cyclone dust removal + electrostatic dust removal + static dust removal), ensuring no air pollution and zero waste gas emissions.
4. The equipment boasts a clean appearance, free of dust bags, overcoming the traditional dust collectors' inability to solve dust and odor issues.
