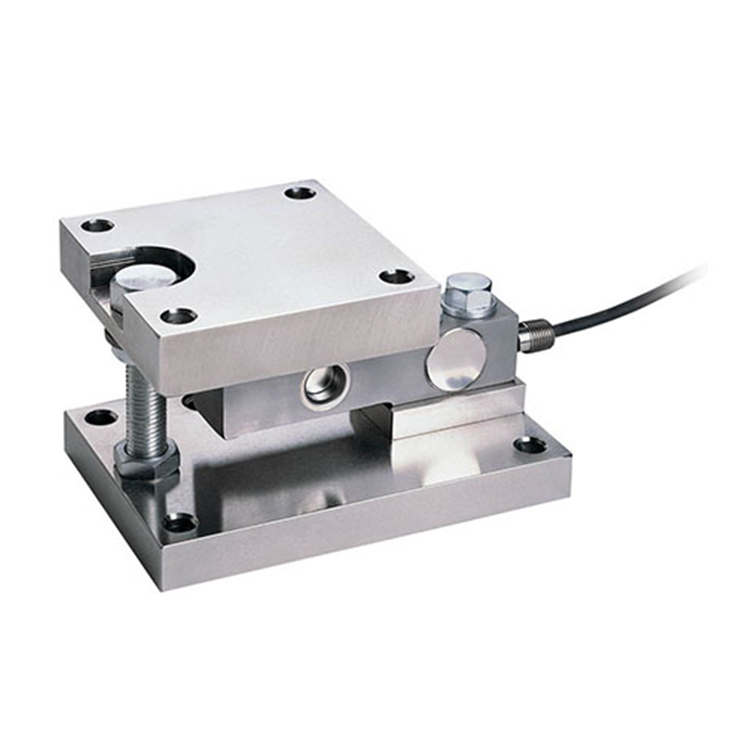

Static Load Weighing Module is suitable for situations where vertical force is predominant with minimal horizontal force. The module can be easily installed on containers of various shapes, thereby becoming a weighing system.

Module Capacity: 0.5t, 1t, 2t

Application: Various containers, tanks, reactors with minimal vibration, mixing, batching control, and process control

Three structures available: fixed, floating, and semi-floating, allowing the container to undergo minor changes.

Compact structure, no additional accessories required

Sensor welding and sealing, strong environmental adaptability

Support bolts, prevent equipment from toppling and facilitate maintenance

Grounding device, protecting sensors from power surge impacts

Overload protection device, effectively protecting the sensor

Carbon Steel Type: Equipped with alloy steel sensors, zinc or nickel-plated module surface; suitable for batching and weighing control of large-tonnage tanks.

Stainless Steel Type: Equipped with imported stainless steel welded sealed sensors, IP68 protection rating, suitable for ingredient weighing control of heavy-duty tanks in various harsh environments.

Material Options: Alloy Steel, Stainless Steel

Application Options: Corrosion-Resistant, Explosion-Proof Applications
