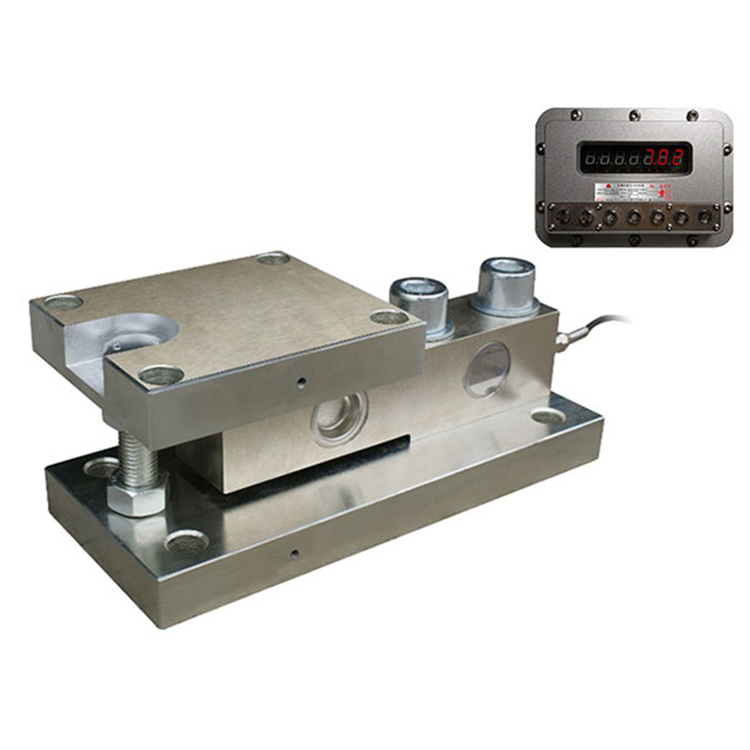

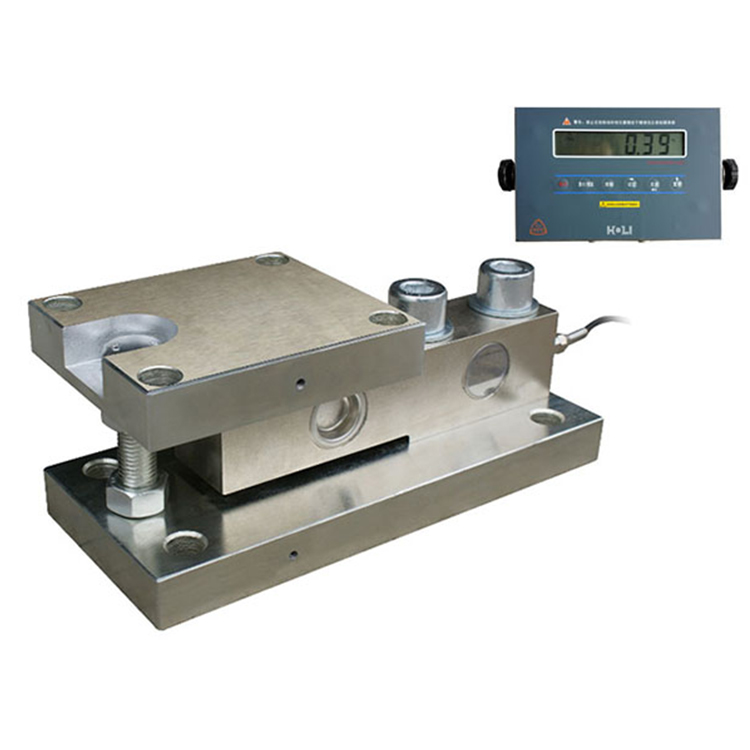

The static load weighing module is suitable for applications where only vertical forces are present with minimal horizontal forces. The static load weighing module can be conveniently installed on containers of various shapes, becoming a weighing system.

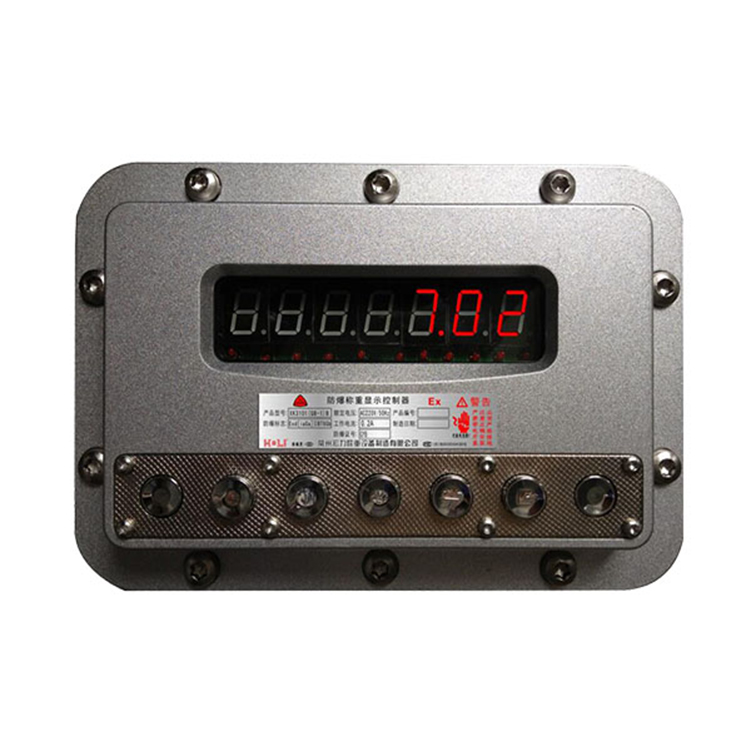

Explosion-proof rating: Ex d ia II B T4 Gb or Ex ia II C T4 Ga
Module Capacity: 0.5t, 1t, 2t, 3t, 5t, 7.5t, 10t, 15t, 20t
Application: Various containers, tanks, reactors with minimal vibration, mixing, batching control, and process control
Three structures: fixed, floating, and semi-floating, allowing the container to undergo slight variations.
Compact structure, no additional accessories required
Sensor welding sealing, strong environmental adaptability
Support bolts, prevent equipment from toppling and facilitate maintenance
Grounding device, protecting sensors from power surge impacts
Overload protection device, effectively protects the sensor
Carbon Steel Type: Equipped with alloy steel sensors, module surface galvanized or nickel-plated, suitable for batching and weighing control of large-tonnage tankers.
Stainless Steel Type: Equipped with imported stainless steel welded sealed sensors, with IP68 protection grade, suitable for material weighing control of large-tonnage tanks in various harsh environments.
Material Options: Alloy Steel, Stainless Steel
Application Occasions: Corrosion and Explosion-Proof Applications
Technical Specifications
