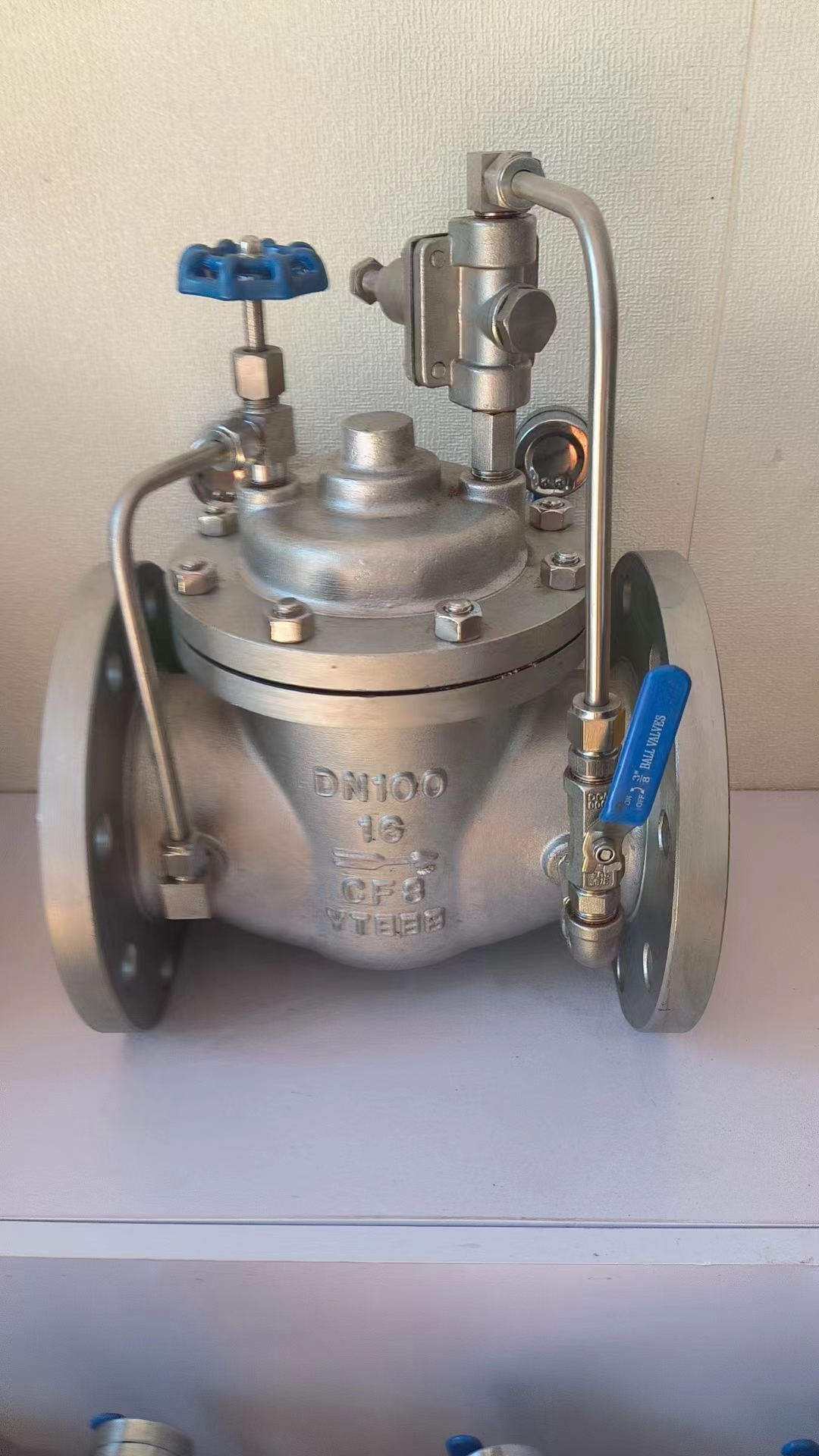

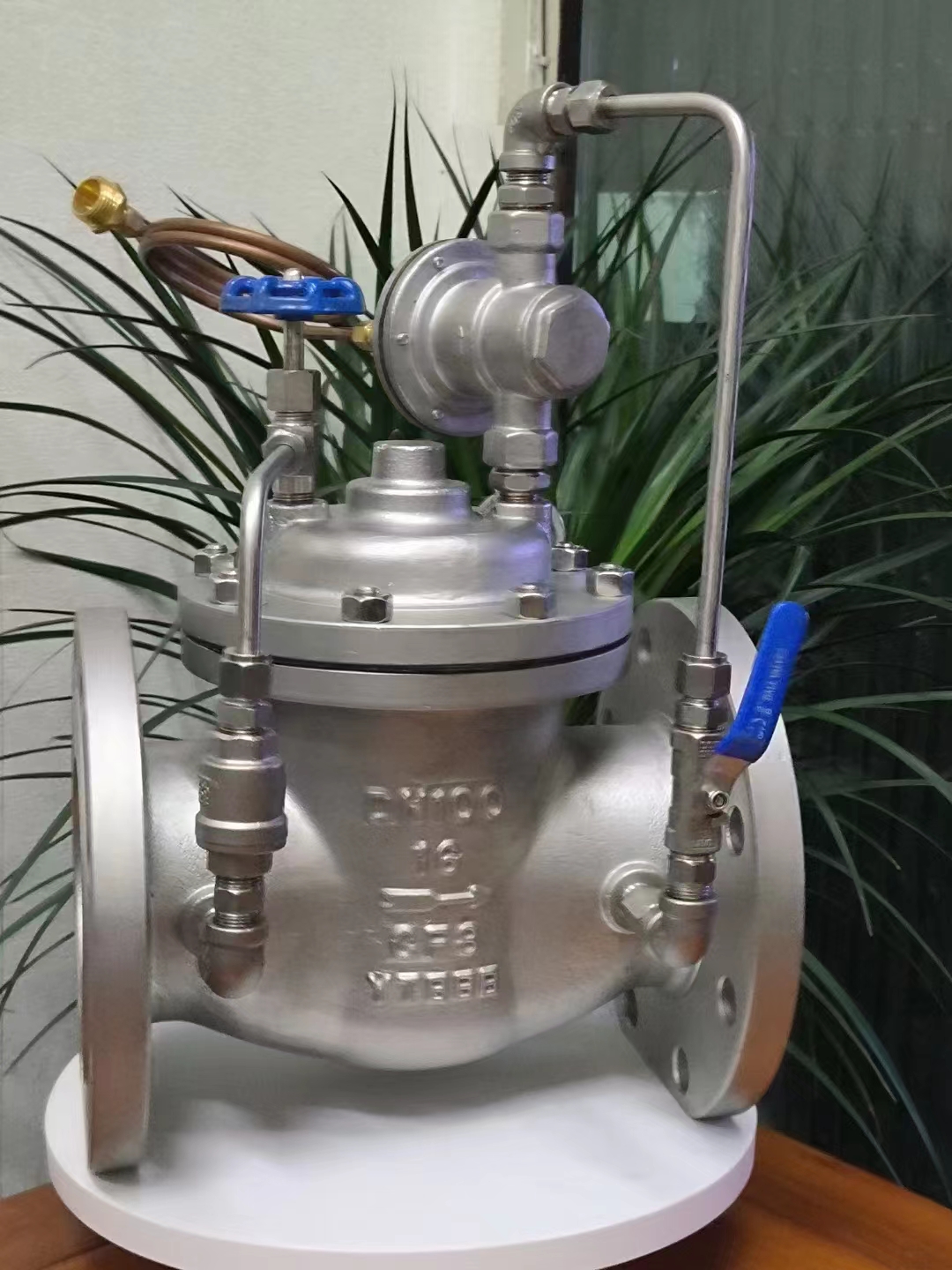

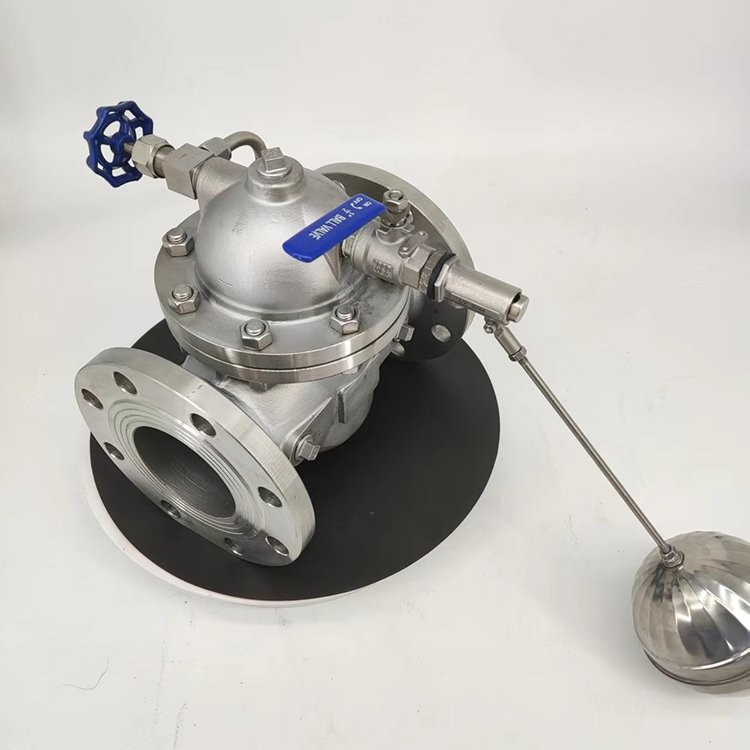

100X Remote Control Float Valve Product Description:
The remote control float ball valve body features a full-channel streamlined design. It offers low fluid resistance, high flow rate, and excellent sealing. With a guide control system installed on the main valve, it operates hydraulically to automatically control the liquid level in water towers or reservoirs. It's easy to maintain, flexible, durable, and provides high accuracy in level control. The water level is unaffected by water pressure and the closure is tight with no leakage.

100X Remote Control Float Valve Working Principle:
When the pipeline supplies water to the inlet of the remote-controlled float ball valve, since the needle valve 15, ball valve 14, and float ball valve 10 are normally open, the medium passes through needle valve 15 into the valve cover control chamber, then flows into the water tank through ball valve 14 and float ball valve 10. As the control chamber cannot form pressure, the entry pressure beneath the main valve disk lifts it, opening the main valve to supply a large volume of water to the tank. As the water level in the tank rises and the float ball rises, closing float ball valve 10, the water pressure in the valve cover control chamber gradually increases to close the main valve disk, thereby activating the automatic remote control function.

Application of 100X Remote Control Float Valve:
The 100X Remote Control Float Valve is primarily used at the water intake of pools or water towers. When the water level reaches the set height, the float guide valve controls the main valve to close, stopping water supply. As the water level drops, the float guide valve controls the main valve to open, automatically refilling water without human intervention. The liquid level control is accurate and不受water pressure interference. The float guide valve can be installed, maintained, and adjusted at any height or usable space in the pool or water tower, offering convenient operation, reliable sealing, and a long service life.
