Metal槽盘Distributor, Condensate Collector

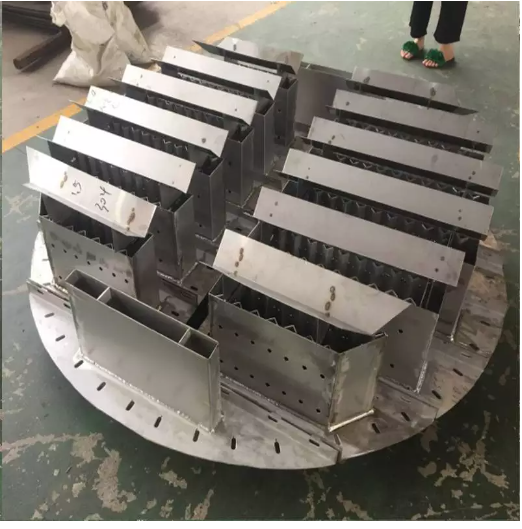

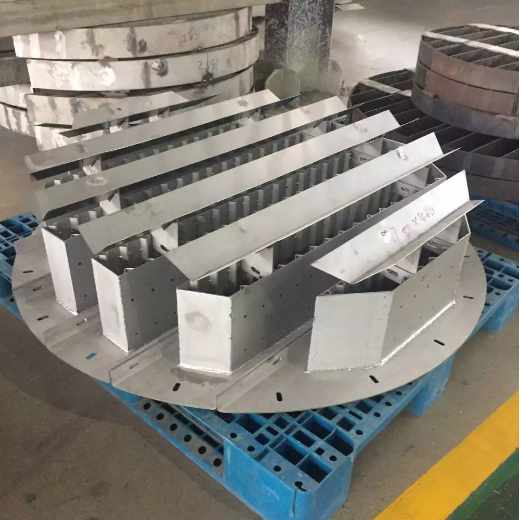

Metal槽盘distributorIt consists of a rectangular riser pipe, angle and channel steel guide fluid pipes, dovetail or channel steel liquid stoppers, spreader plates, support rings, and support beams. The main difference from the disk-type liquid distributor is that two rows of small holes, one larger at the top and one smaller at the bottom, are respectively located at the top, middle, or lower middle of the rectangular riser pipe, with the different diameter holes along the same vertical line covered by angle or channel steel guide fluid pipes.

Metal槽盘 distributorTo minimize the amplification effect caused by poor liquid distribution and to fully utilize the efficiency of the packing material, it is essential to install a liquid distributor in the packing tower to evenly distribute the liquid across the top of the packing layer. The quality of the initial liquid distribution not only affects the mass transfer efficiency of the packing but also impacts its operational flexibility. Therefore, the liquid distributor is an extremely critical internal component within the packing tower. There are many types of distributors, with the main selection criteria including distribution quality, operational flexibility, throughput, gas resistance, and levelness, among other factors.
Distributor differentiation: 1.Distributed by shape: Tubular, Double-layer Tubing, Groove, Disc, Impulse, Nozzle, Pagoda, Lily, Composite, etc. 2. Distributed by the liquid's departure form from the distributor: Hole flow, Overflow. 3. Distributed by the number of liquid distribution: Single stage, Multi-stage. 4. Distributed by the combination method of the distributor: Tubular groove, Hole groove, Groove disc. 5. Distributed by the fluid dynamics of the distributor: Gravity-type liquid distributor (hole type, weir type, pressure type liquid distributor, spray type, porous pipe type).
Tower internals: vapor-liquid separator demister, mist collector, liquid collector, PTFE distributor, weir plate demister, spray nozzle, packing support grid, liquid redistributor, trough distributor, ammonia water filter, hump support, packing support, support, tubular liquid distributor, wire mesh demister, tower internals connectors, PVC distributor, plastic weir plate mist collector, bubble cap tray, inlet pipe, float valve tray, Johnson mesh pipe, round bubble cap, ceramic distributor, removable trough plate gas-liquid distributor, packing grids, and other tower internals.
Note: Non-standard tower internals can be manufactured according to customer-provided drawings, and design, fabrication, and installation services can be offered based on customer-provided parameters. We have hired several doctoral graduates from major universities as technical consultants to establish a technical department, providing you with professional technical services.
