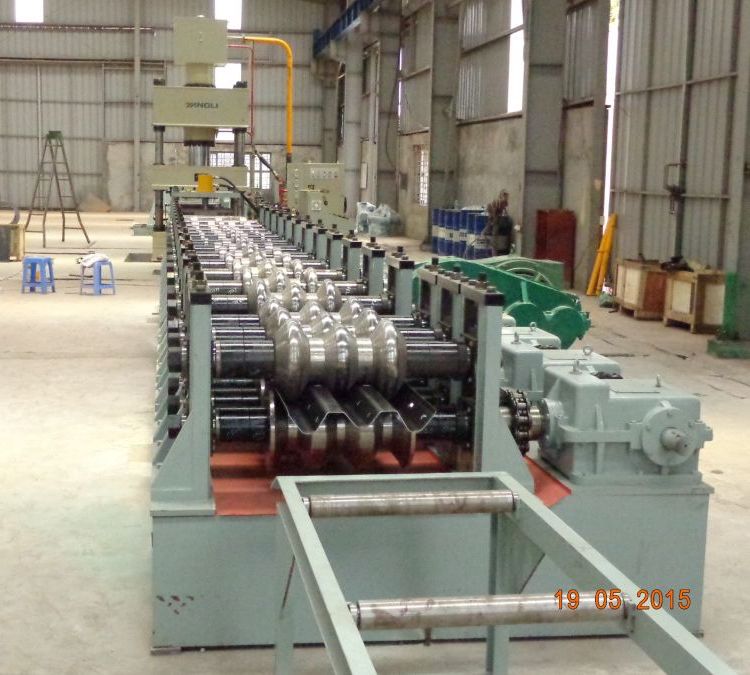

Three-Wave Highway Guardrail Production Line

　　Equipment Composition

Coil Unwinding & Straightening Feeding Machine ---- Hydraulic Punching & Cutting ---- Reinforced Hole Punching --- Quick Feeding --- Molding Main Machine --- Manual Collection (optional Automatic Collection System) --- Electric Control with PLC Programmable Logic Control

　　Raw Material Mechanical Properties and Specifications:

Material: Q235

Steel Strip Thickness: 2.5～4.5mm

Steel Strip Width: 750mm

Steel coil inner diameter: φ508～φ600

Steel coil outer diameter: ≤ φ1800

Steel coil weight: ≤15T

　　Product Specifications:

Product Width: 506mm

Product Height: 85mm

Product Length: 4320mm

Length Tolerance: ±2mm on 4320mm

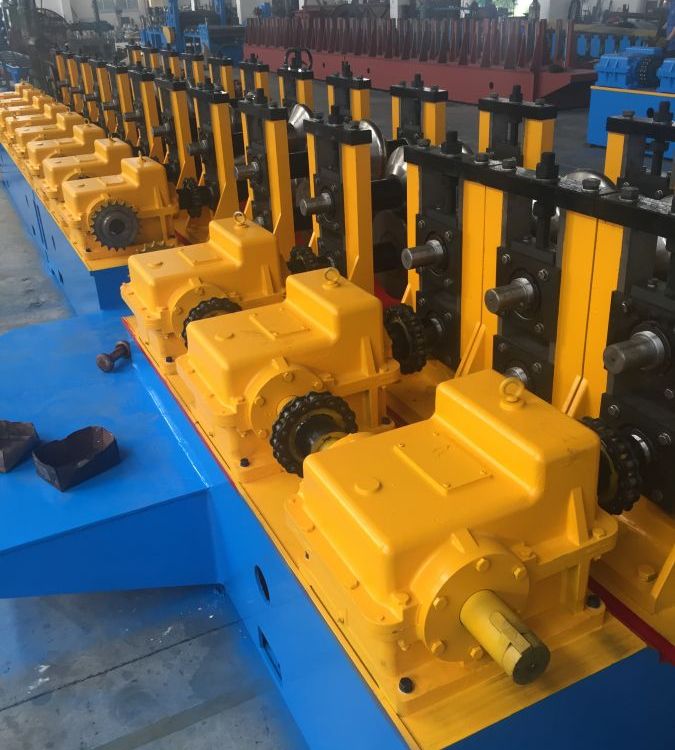

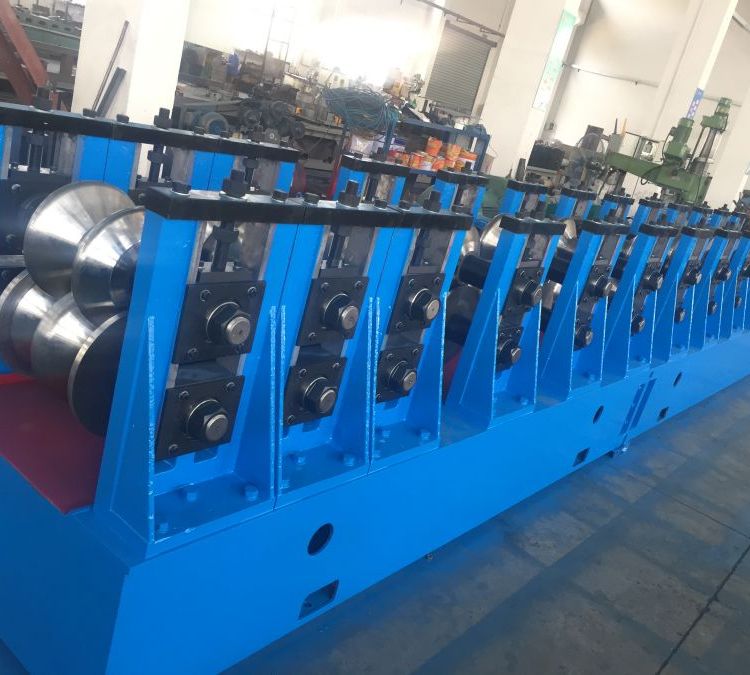

　　Engineered technical specifications:

Forming Method: Roller Cold Bending

Production Speed: Approximately 2-3 guardrail panels per minute

Material Direction: Left Feed

Main Voltage: 380V, 50Hz

Total Engine Power: Approximately 100KW
