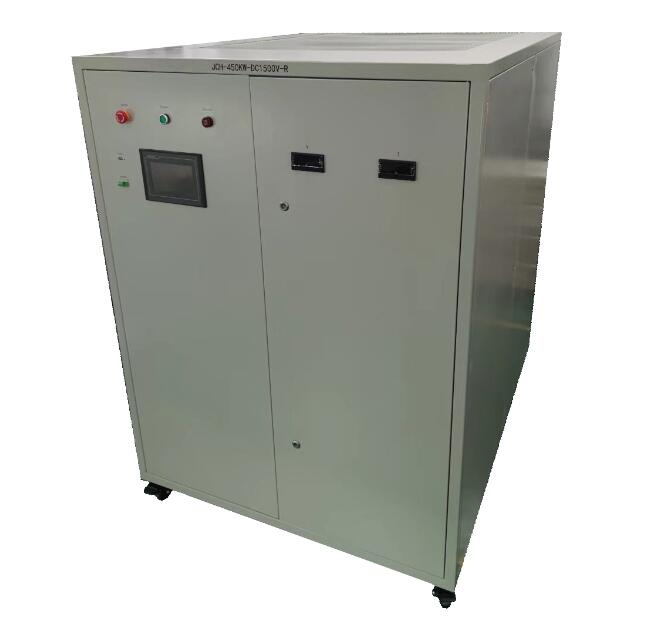

JCH-450KW-DC1500V-RA 450KW programmable load
Product Overview
King Chan DC R Load is designed for HVDC Electric Accessory, it is composed of resistance、HVDC relay and control component.
Reference standard
QC/T 895-2011 On-board conductive charger for electric vehicles
YD/T1095-2008 Uninterruptible Power Systems for Communications(UPS)；
GB 19212.1-2008 Safety of power transformers, power supplies,reactors and similar products.Part 1: General requirements and tests；
GB/T 14048.1-2000 Low-voltage switchgear and controlgear--General rules；
GB/T 13032-2010 Marine diesel generator set；
GB 5226.1-2002 Safety of machinery--Electrical equipment of machines--Part 1: General requirements；
GJB 235-87 General technical condition for 50Hz and 400Hz mobile electric power plant
Technical Parameters
Equipment Technical Specifications | ||
Name of Product | DC LOAD | |
Model | JCH-450KW-DC1500V-R/JCH-450KW-DC1500V-RA | |
Rated Voltage | DC1500V | |
Power Rating | 450KW | |
Rated Current | 233A | |
Resolution Ratio | 1KW | |
Load Step | 1KW/2KW/2KW/5KW/10KW/10KW/20KW/50KW/50KW/100KW/100KW/100KW | |
Load Accuracy | ±5% | |
Power Supply | Single phase AC220V/50HZ | |
Connect Method | Connect to Copper Busbar | |
Control Mode | JCH-450KW-DC1500V-R | High voltage relay + button switch |
JCH-450KW-DC1500V-RA | HMI + remote | |
Display Mode | JCH-450KW-DC1500V-R | LCD: voltage, current, power
|
JCH-450KW-DC1500V-RA | 7inch + HMI | |
IP code | IP20 | |
Fan Noise | 70dB~80dB | |
Heat Dissipation | FAN: Upper air inlet、lower air outlet | |
Product Mode | Over Temperature | |
Dimensions(Width* depth*height) | about：750mm*1600mm*1700mm | |
Applicable Ambient Temperature | -10℃～+50℃ | |
Move Method | Casters * 4 | |
relative humidity (RH) | ≤95% | |
