I. Overview:

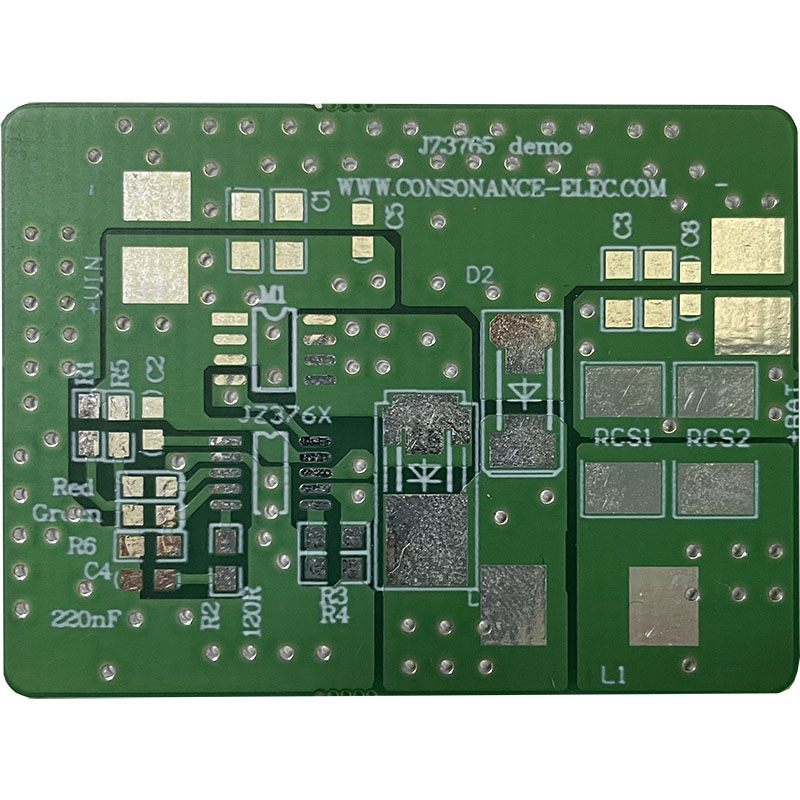

  JZ3765 IsPWM Multi-type battery charging management with voltage reduction modeIntegrated circuit, independently manages charging for multiple batteries, with sealingCompact in size, with minimal peripheral components, and easy to use.

  JZ3765 Features涓流，恒流，and恒压 charging modes, highly suitableIntegrated charging management for lithium-ion, lithium iron phosphate, and lithium titanate batteries.In constant voltage charging mode,JZ3765 Adjust the battery voltage externallyVoltage set by the feedback resistance; Charging in constant current modeCurrent flows through an external resistor setup.

For deeply discharged lithium-ion batteries, when the battery voltage drops below the constant voltage charging threshold,Voltage66.5%(Typical Value)At that time,JZ3765Use the set constantFlowing current17.5%Trickle charge the battery. At a constant...During the pressure charging phase, the charging current gradually decreases, when the charging current dropsAs low as the constant current charging current16%When, charging is complete. At chargingCompletion state, if the charging current rises again to the constant current charging currentThe58.8%Above, the automatic start of a new charging cycle. When inputPower failure or when the input voltage is lower than the battery voltage,JZ3765Automatically enter sleep mode.

Other features include low voltage lockout and battery terminal overvoltage protection.And charging status indicators.

  JZ3765 Adopted10 Lead FootSSOP Packaging.

Section II: Applications:

Handheld Device

Backup Battery Applications

Portable Industrial

Electric Tools

Lithium-ion batteries, iron phosphate lithium batteries, and titanate lithium batteries charging

Section 3: Features:

Single-cell, multi-cell lithium batteries, lithium iron phosphate batteriesOr complete charging management for lithium titanate batteries

Wide input voltage range:6.6V To30V

Battery can be used as a constant voltage source when not connected.

Charge Current Up to4A

PWM Switching Frequency:310KHz

Constant voltage charging voltage is set by an external resistor.

The constant current charging current is set by an external resistor.

Battery trickle charging for deep discharge

Automatic Recharging Function

Charge status and charge completion indicator

Soft Start Function

Battery over-voltage protection

Operating Environment Temperature: -40°C to +85℃

Adopted10 Lead FootSSOP Packaging

Lead-free product, meetsRohsHalogen-free
