One, Features

Low consumption with BCD process

● Two different small packages: HSOP8, SOP8

Wide voltage range for power supply:

Control (VCC): 2.7V ~ 5.5V

—Motor (VM): 2.0V~24V: High DC output current: 2.8A

● Extra-Low RDSON (TOP + BOT):

0.51Ω TYP at 25°C, 1A for HSOP8

0.64Ω TYP at 25°C, 1A for SOP8

Low power consumption during power outage

< 0.05μ@25°C

PWM control input frequency: 200KHz.

• Operating Temperature Range: -40~+85℃

“Less charging pumps”

Direct Current Protection

Built-in protection circuit

Low Voltage Lockout

Hot Close

Two, Description

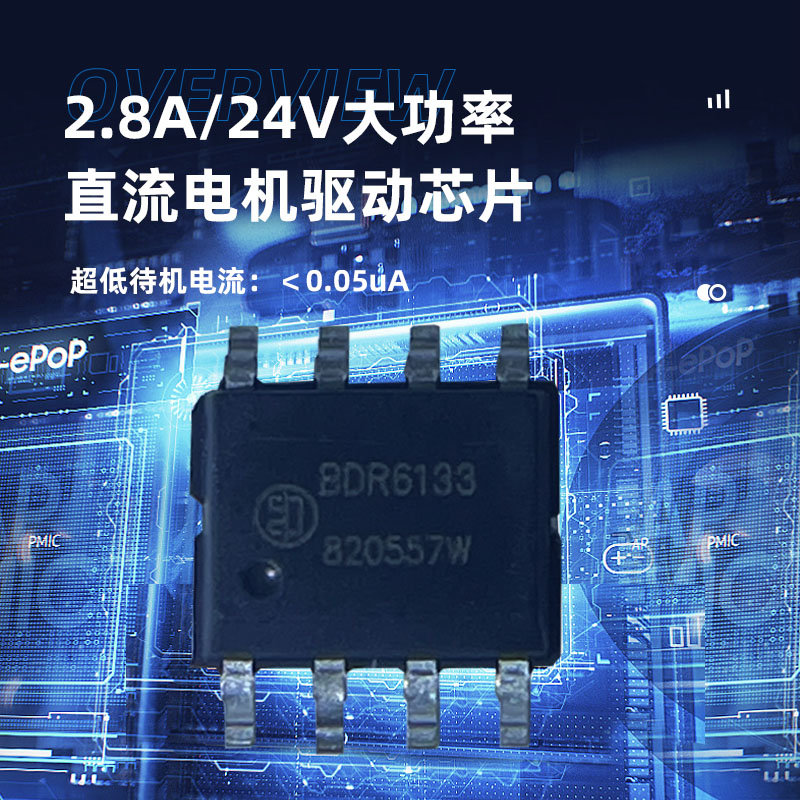

The BDR6133 is a full-bridge driver channel, available in two different packages. This driver features a wide operating voltage range from 2V to 24V, reducing power consumption through fast switching speeds.

3. Application

Toys

Digital SLR lens

Automatic ice maker or defroster motor for refrigerators

High-voltage bidirectional DC motor

Smart Electronic Lock · Translation result from Youdao Neural Machine Translation (YNMT) · General Scenario
