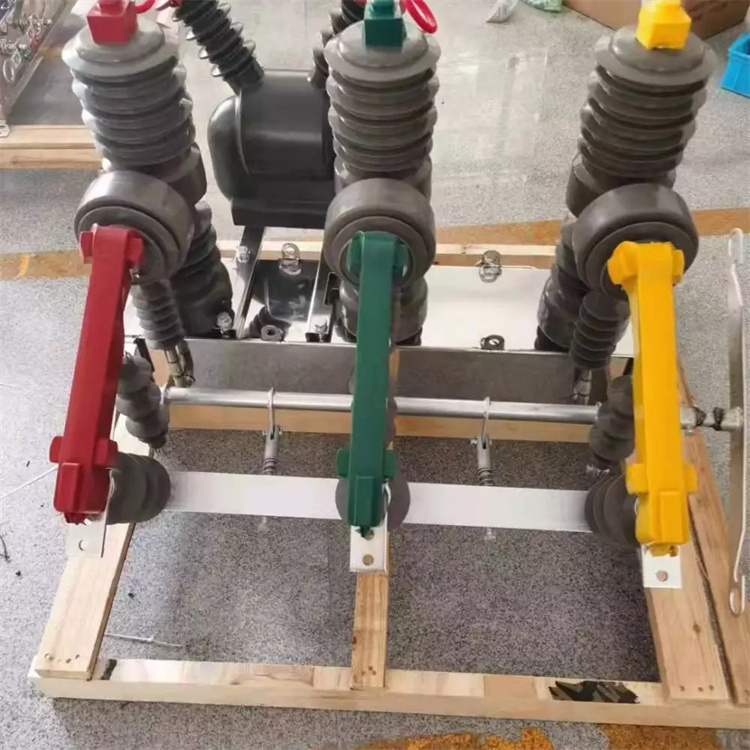

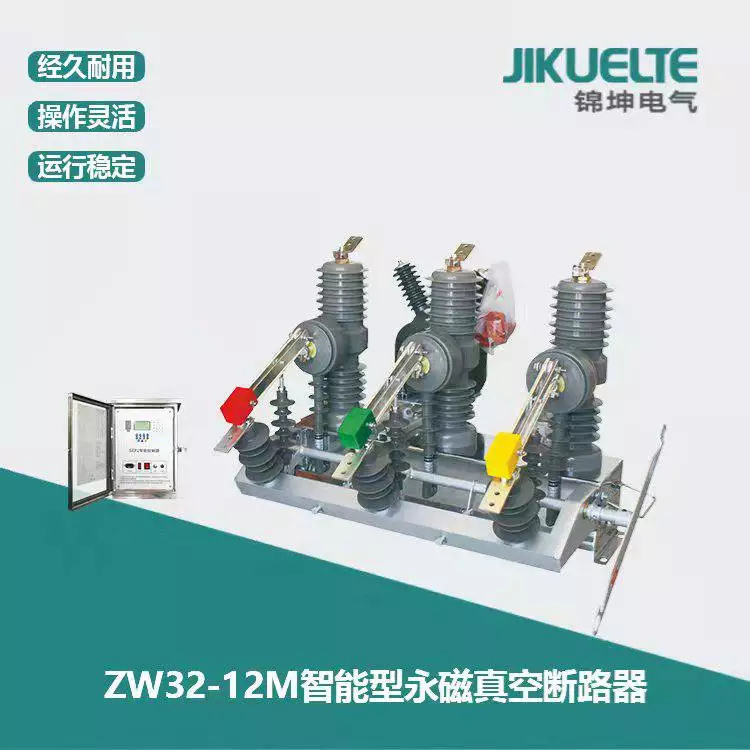

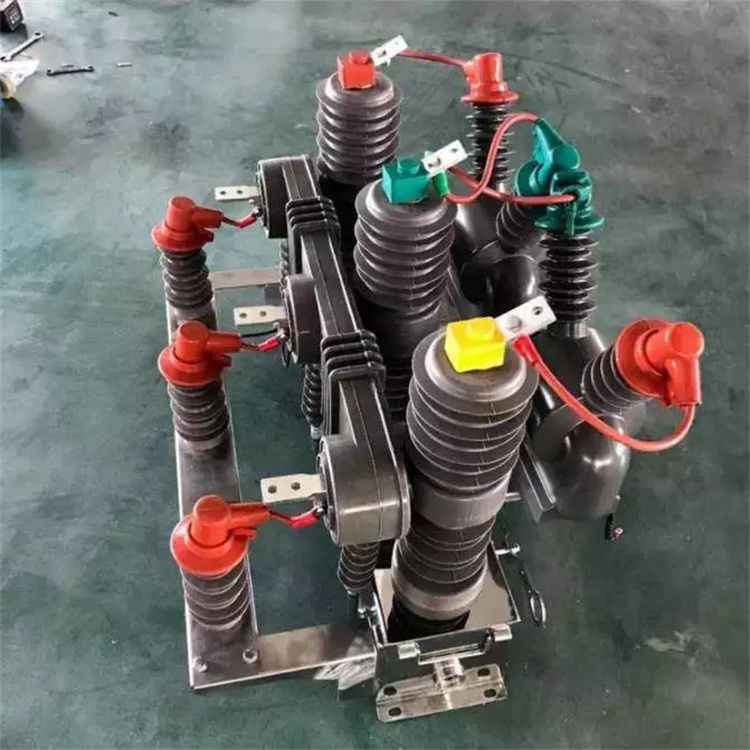

Smart Isolation 12KV -ZW32 High Voltage Outdoor Vacuum Circuit Breaker, Tax-inclusive

1. Overview:

ZW20-12F Outdoor AC Intelligent Isolation Vacuum Circuit Breaker (Watchdog) is an outdoor high-voltage switchgear designed for a rated voltage of 12kV, three-phase AC 50Hz. It is mainly used for opening and closing load currents, overload currents, and short-circuit currents in power systems. Suitable for protection and control in substation, industrial and mining enterprises, and urban and rural networks. Particularly suitable for frequently operated sites and urban automated distribution networks. Passed the type test by national institutions and conforms to the following standards: GB1984 High-voltage AC Circuit Breaker.

GB/T11022 Common technical requirements for high-voltage switchgear and control equipment; D11402 Technical specifications for ordering AC high-voltage circuit breakers.

2. Terms of Use:

2.1 Altitude: Not exceeding 1000m.

2.2 Surrounding Air Temperature: -40℃ to +40℃; daily temperature difference: does not exceed 25℃.

2.3 Wind Speed: Not exceeding 34 m/s

2.4 No places with flammable, explosive hazards, strong chemical corrosives (such as various acids, alkalis, or dense smoke), and severe vibrations.

4.1 Ideal equipment for urban and rural network transformation: Can be matched with controllers to achieve remote control, remote measurement, remote signaling, and remote adjustment, realizing the "four remote" functions.

4.2 Flexible and Convenient Operation: This product features electric energy storage and switching, as well as manual energy storage and switching, allowing for operation from both close and distant distances.

4.3 Break: The circuit breaking of short-circuit current 25kA is achieved 30 times.

4.4 Low operating power, high reliability: The operating power of the designed small electric spring mechanism (approximately 30W) is reduced to level.

4.5 Flexible Installation Methods: Either overhead mounting on a pole or base-mounted installation is available.

4.6 Sealing: SF6 pressure is at zero gauge pressure and utilizes mature sealing structure technology; sealed, not prone to leakage.

4.7 Line Entry and Exit Method: Utilizing silicone rubber tubes to ensure ample insulation distance between wiring terminals, and excellent external insulation characteristics.

4.8 Safety in Use: Equipped with explosion-proof devices on the top of the housing, there will be no leakage of high-temperature gases or splashes even in the event of internal failure.
