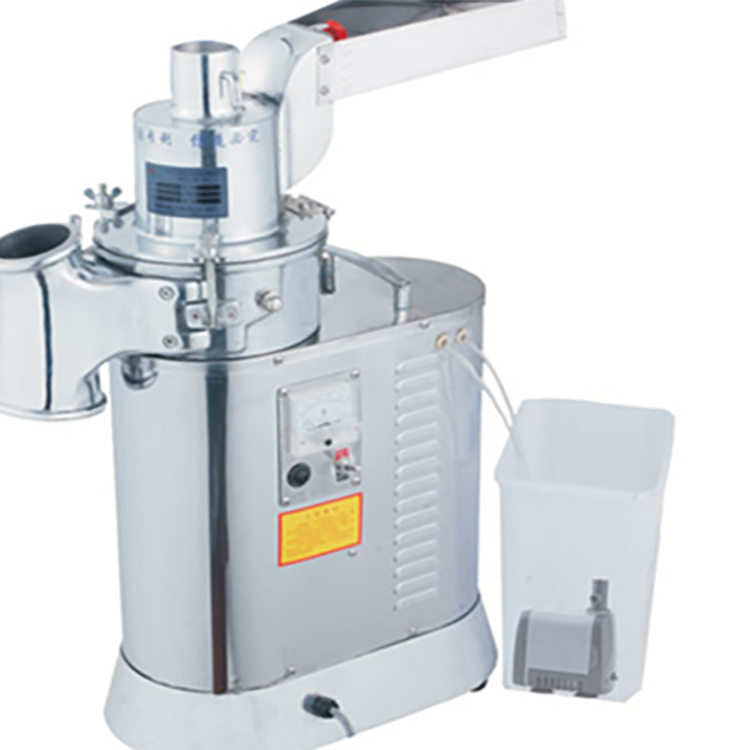

Detailed Introduction: Continuous Feeding Crushing Machine
1The Continuous Feeding Crushing Machine, also known as a High-performance Crushing Machine, is compact, aesthetically pleasing, easy to move, and simple to operate.
2Continuous feeding, hammer mill crushing, with hard alloy steel hammers for high wear resistance. Equipped with a screen, fineness is accurately adjustable. Different finenesses can be achieved by replacing screens of various sizes. Fine powder exits through a cloth bag.
3The continuous feed crushing machine features a special structure with vibration-free operation, low noise, high safety, stable performance, cleanliness, low loss, and high efficiency. The contacting parts are made of stainless steel, meeting hygiene standards.
4The continuous-feeding crusher achieves ideal crushing effects on pearls, chemical raw materials, food ingredients, minerals, soil, grains, coal, and laboratory materials. It is a crucial model for crushing friable materials, capable of producing not only fine powder but also coarse granule slices for decocting (using coarse granule slices for decoction can enhance the dissolution rate of effective components in the slices). However, it is not suitable for materials with certain oiliness or粘性.
5Continuous Feeding Mill is suitable for clinics, outpatient departments, research institutions, laboratories, reagent rooms, colleges and universities, scientific research units, shopping malls, and homes for粉碎various materials.
6The continuous feeding granulator is equipped with an overload and overheat automatic protection device, which will automatically shut down the machine if the motor load is too heavy or the motor overheats.
Application Range: Food
AModel:DSW-LH8A
Features: Continuous operation capability10Over 1 hour
Production:5-15（kg/hFineness of Grinding:60-180Voltage:220（V/Hz）
Motor Power:1200（WRPM:20000（r/minWeight:10（kgVolume:30*17*40（cm）
B、Model:DSW-LH8B
Motor Power:1500WVoltage:220VSpindle Speed:2850r/minFinished Product Fineness:60-200mm
Production Capacity:10-30kg/hWeight:25kgDimensions:500*170*550
Attachments: instruction manual, warranty card, three different sizes of stainless steel sieve, thermal protection switch, two cloth bags, one brush
Fault Generation and Exclusion：
1. All products from our factory are covered by a three-year warranty.
2. Our factory provides customers with spare parts for capsule filling machines, tablet presses, crushers, and other equipment at any time.
3. The hollow capsules provided by our factory are guaranteed in quality; if found to be substandard, we offer a full refund and exchange.
4. The following situations are not covered under after-sales service:
（1Due to human error and improper use, maintenance, or care as per product instructions, resulting in damage and inability to operate normally.
（2Damage and failure to operate normally caused by the use of accessories not sold by our factory.
After-sales Service:
One-year full machine warranty, lifetime repair!
User Instructions:
1.Check for any foreign objects inside the crushing chamber (must be empty before turning on), then connect the power supply.
2.Tighten the butterfly nut on the top cover and the crushing chamber
3.Start motor, no-load rotation1—2Minutes later, gradually feed the material from the feeding dish, ensuring not to overfeed too quickly or excessively.
4.If material gets stuck and the motor does not turn, please shut it down immediately to prevent motor burnout; continue use after clearing the stuck material.
5.During operation, it is strictly prohibited to open the cover or to insert hands into the crushing chamber.
6.This unit is a dry crushing machine; it is not suitable for crushing moist or greasy materials.
Cautionary Notes:
1Please users replace with different screens as needed.
2The machine is equipped with an overheat protector. If the motor load is too high, it will automatically shut down. If you wish to continue operation, please reset the protector.
3During the work process,DSW-LH8ACurrent must not exceed6MultipleDSW-LH8BNot to exceed15Ampere.
