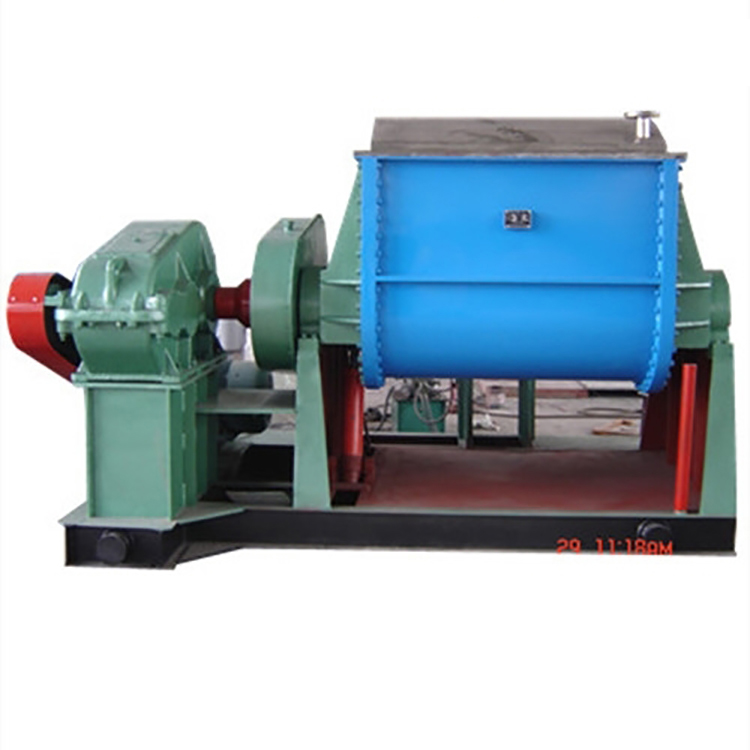

The stainless steel kneading machine is widely used in industries such as high-viscosity sealant, silicone rubber, neutral and acidic glass glue, chewing gum, bubble gum, pulp, cellulose, as well as batteries, inks, pigments, dyes, resins, plastics, rubber, and cosmetics.
Shandong Longxing Stainless Steel Molding Machines are available in four types: standard, pressure, vacuum, and high-temperature models. They can be categorized into carbon steel, stainless steel, and special material molding machines based on material. Furthermore, they can be further divided into Guangdong molding machines based on origin and quality. Temperature control is achieved through jacketed heating, steam, thermal oil heating, and water cooling methods. They feature hydraulic tilting and lid opening mechanisms. Discharging methods include hydraulic, tilting drum, ball valve, screw extrusion, and hydraulic flip plate. The cylinder and blade contacting parts are made of stainless steel, alloy steel, manganese steel, etc., ensuring product quality.
Performance Features: An ideal equipment for kneading, blending, crushing, dispersing, and re-aggregating high viscosity paste or elastoplastic materials that cannot be processed by general split-type mixers and liquid agitators, featuring uniform mixing, high kneading efficiency, and other advantages.
The main structure of the extrusion kneader consists of the kneading section, base section, hydraulic system, transmission system, and electrical control system. The kneading section is composed of the cylinder body, paddle shaft, wall plate, cylinder cover, etc. The hydraulic system is operated by a hydraulic station to control the hydraulic cylinder, completing the opening and closing of the large cover and the flipping and stirring of the kneading cylinder. The electrical control system includes manual and automatic options, allowing users to choose as needed for easy and reliable operation. The transmission system is made up of a motor, reducer, and gears, and is matched with a motor according to the kneader model. During the transmission process, the motor's synchronous speed can be transmitted through an elastic coupling to the reducer, where the output device drives the fast paddle to reach the specified speed. Alternatively, the speed can be adjusted using a variable frequency drive.
