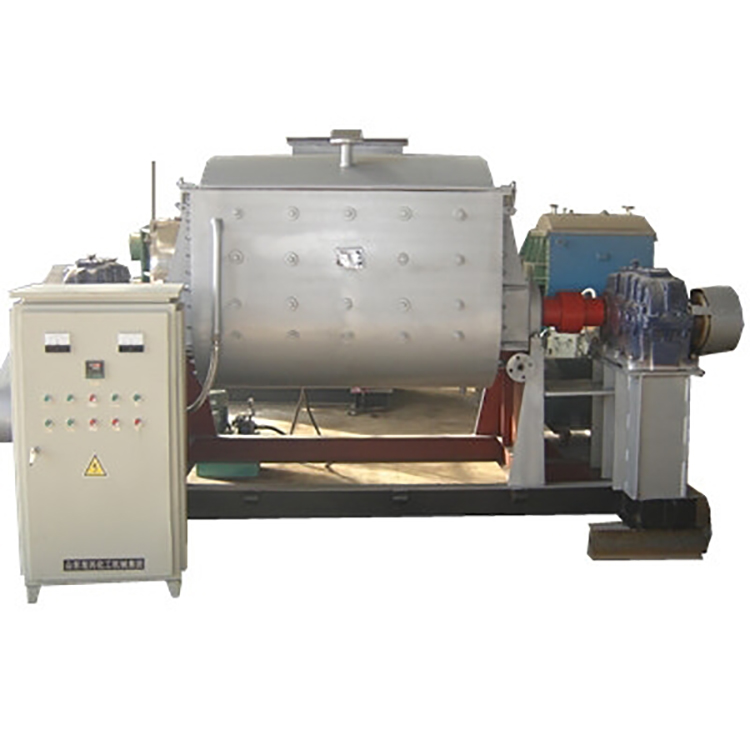

Carbon捏合机A pair of blades that interact and rotate (usually inThe Z-shaped blade generates a strong shearing action, allowing semi-dry or rubbery, thick plastic materials to react quickly, achieving uniform mixing and blending. This machine is designed for mixing, kneading, crushing, dispersing, and re-aggregating various high-viscosity elastoplastic materials, and features uniform mixing, high kneading efficiency, and more.

Carbon kneading machinePrimary Structure:
The kneader is mainly composed of six major parts: the kneading section, base section, hydraulic system, transmission system, vacuum system, and electrical control system.
The blending section is composed of the cylinder body, screw shaft, wall plates, cylinder cover, etc.
The hydraulic system is operated by a hydraulic station to control two small oil cylinders and two large oil cylinders, enabling the opening and closing of the large cover and the flipping and stirring of the mixing drum. The system is designed with a pressure of 7.0 MPa.
The electrical control system includes both manual and automatic options, allowing users to choose as per their requirements. It is user-friendly and reliable.
The transmission system consists of a motor, a reducer, and gears, and is matched with a motor according to the type of the kneading machine. During the transmission process, the motor's synchronous speed can be transmitted through an elastic coupling to the reducer, where the output device drives the fast paste to reach the specified speed. Alternatively, the speed can be adjusted using a variable-frequency drive.
