Flame Retardant: Suitable for public buildings and areas with high human density Fireproof: Used for emergency power lines, fire protection systems, and other environments with stringent fire safety requirements

Flame Retardant: Inhibits and delays the spread of flame along cables

Fire-resistant: Capable of maintaining operation for a certain period under flame combustion conditions, i.e., maintaining the integrity of the circuit.

Oxygen-Free Copper Wire Conductor

Product Features:

Flame Retardant: Inhibits or delays the spread of flame along electrical wires and cables.

Fire-resistant: Can maintain operation for a certain period under flame combustion conditions, i.e., maintain the integrity of the circuit

Product Model:

NH-KVV Non-flammable Control Solid Conductor Cable

NH-KVVR Fire-resistant Control Conductive Cable

NH-KVVP Fire-resistant Copper Wire Mesh Shielded Solid Conductor Cable

NH-KVVPR Fire-resistant Copper Mesh Shielded Control Conductor Cable

NH-KVV22 Fire-resistant armored control solid conductor cable

NH-KVVR22 Fire-Resistant Sheathed Control Conductors Cable

NH-KVVP22 Fire-resistant armored copper wire mesh shielded control solid conductor cable

NH-KVVPR22 Fire-resistant armored copper wire shielded control conductor cable

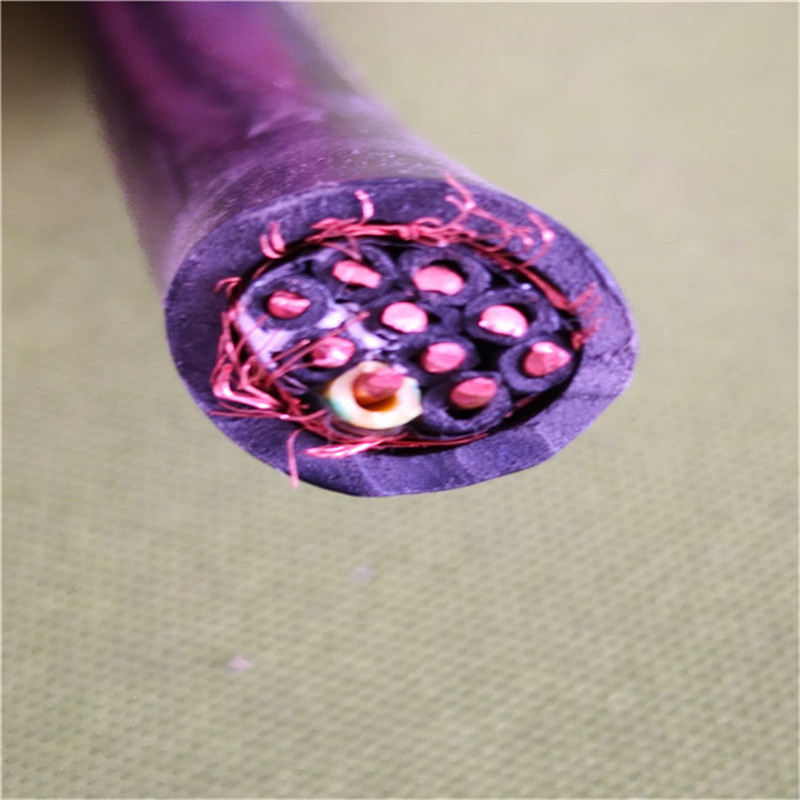

Cable Structure:

Conductor: Oxygen-Free Copper Wire

Insulation: Flame-retardant PVC Insulation / Fire-resistant PVC Insulation

Filling Material: Buffered with PP tape or non-woven fabric wrapping

Sheath: Flame-retardant PVC Sheath / Fire-resistant PVC Sheath

Color: Black (RAL 9005) Grey (RAL 7001)

Rated Voltage: 450/750V

Test Voltage: 3000V

Operating Temperature Range:

Mobile Installation: -10℃ to +70℃          Fixed Installation: -30℃ to +70℃
