Flame Retardant: Suitable for public buildings and areas with high human density Fireproof: Used for emergency power lines, fire protection systems, and other environments with strict fire safety requirements

Flame Retardant: Inhibits and delays the spread of flame along the cable

Fire-resistant: Can maintain operation for a certain period of time under flame combustion conditions, i.e., maintain the integrity of the circuit.

Oxygen-Free Copper Wire Conductor

Product Features:

Flame Retardant: Inhibits and delays the spread of flame along wires and cables

Fire-resistant: Can maintain operation for a certain duration under flame combustion conditions, i.e., maintaining the integrity of the circuit.

Product Model:

ZR-KVV Flame Retardant Control Conductor Cable

ZR-KVVR Flame-retardant Control Flexible Conductor Cable

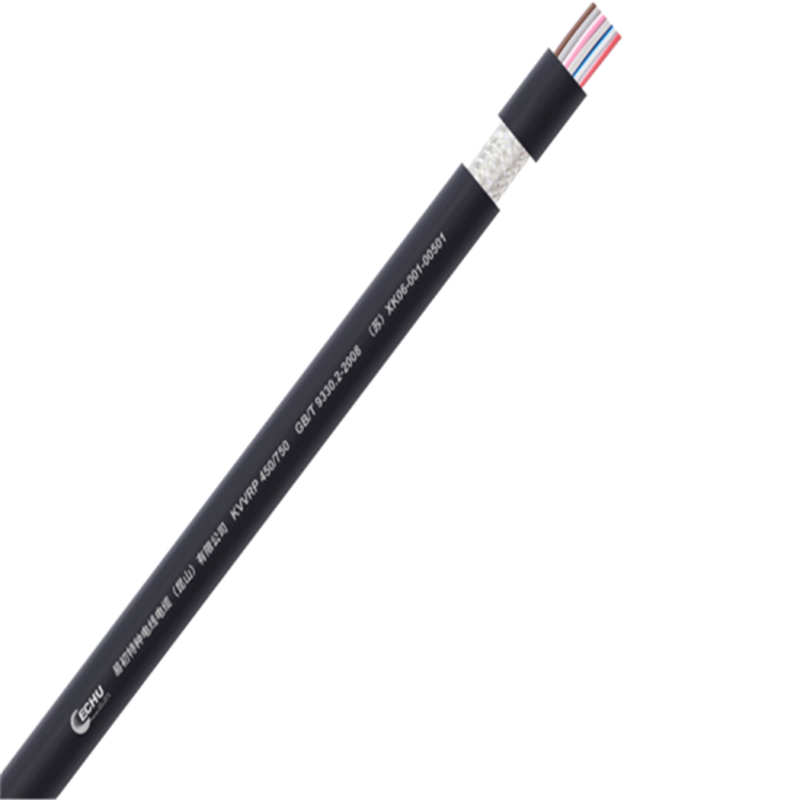

ZR-KVVP Flame-retardant Copper Wire Screen Shielded Solid Conductor Cable

ZR-KVVPR Flame-retardant Copper Wire Screen Sheathed Control Conductor Cable

ZR-KVV22 Flame Retardant Armored Control Solid Conductor Cable

ZR-KVVR22 Flame-retardant Armored Control Cable Conductors

ZR-KVVP22 Flame-retardant Armored Copper Wire Screen Sheathed Control Solid Conductor Cable

ZR-KVVPR22 Flame Retardant Sheathed Copper Wire Screened Control Cable

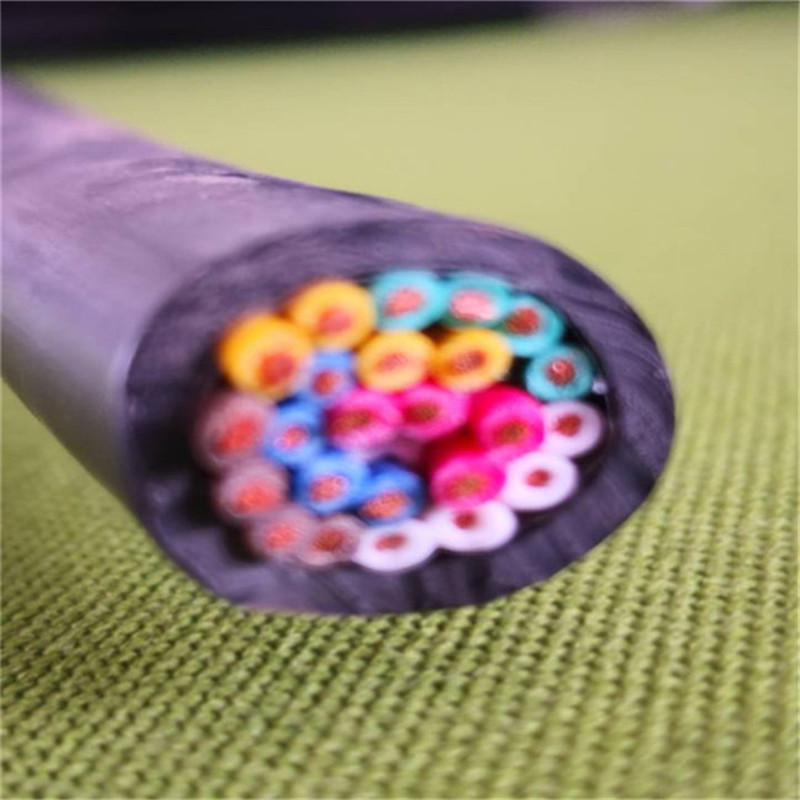

Cable Structure:

Conductor: Oxygen-Free Copper Wire

Insulation: Flame-retardant PVC insulation/Fire-resistant PVC insulation

Filling Material: Buffered with PP tape or non-woven fabric wrapping

Sheath: Flame-retardant PVC sheath/Fire-resistant PVC sheath

Color: Black (RAL9005) Grey (RAL7001)

Rated Voltage: 450/750V

Test Voltage: 3000V

Operating Temperature Range:

Mobile Installation: -10℃ to +70℃          Fixed Installation: -30℃ to +70℃
