Automated control or monitoring systems, electrical instruments wiring, etc., for use in special environments requiring flame-retardant or fire-resistant properties.

Flame Retardant Properties: Inhibits and delays the spread of flame along cables

Fire-resistant characteristics: Can maintain operation for a certain period under flame combustion, i.e., maintain the integrity of the circuit.

Steel installation in indoor environments, cable trenches, pipelines, etc.

Typical Applications:

Installed indoors, in cable trenches, pipelines, or in public buildings and crowded areas. Used for controlling, monitoring circuits, and protective lines, as well as for signal transmission, control, and measurement of electrical instruments and distribution equipment (such as meter testing, signal display, self-testing and remote testing, computer networking, and alarms).

Product Model:

Application Standard: GB9330

ZR-KVV Flame-retardant PVC Insulated PVC Sheathed Control Rigid Cable

ZR-KVVR Flame-retardant PVC Insulated PVC Sheathed Control Flexible Cable

ZR-KVVP Flame Retardant PVC Insulated PVC Sheathed Shielded Control Rigid Cable

ZR-KVVPR Flame-retardant PVC Insulated PVC Sheathed Shielded Control Flexible Cable

ZR-KVV22 Flame-retardant PVC Insulated PVC Sheathed Armored Control Solid Core Cable

ZR-KVVR 22 Flame-retardant PVC Insulated PVC Sheathed Armored Control Flexible Core Cable

ZR-KVVP22 Flame-retardant PVC Insulated PVC Sheathed Armored Shielded Control Rigid Core Cable

ZR-KVVPR 22 Flame-retardant PVC Insulated PVC Sheathed Armored Shielded Control Cable Core

NH-KVV Flame-retardant PVC Insulated PVC Sheathed Control Rigid Cable

NH-KVVR Flame Retardant PVC Insulated PVC Sheathed Control Flexible Cable

NH-KVVP Flame Retardant PVC Insulated PVC Sheathed Shielded Control Hard Cable

NH-KVVPR Flame Retardant PVC Insulated PVC Sheathed Shielded Control Flexible Cable

NH-KVV22 Flame-retardant PVC Insulated PVC Sheathed Armored Control Solid Core Cable

NH-KVVP22 Fire-Resistant PVC Insulated PolyPVC Sheathed Armored Shielded Control Solid Core Cable

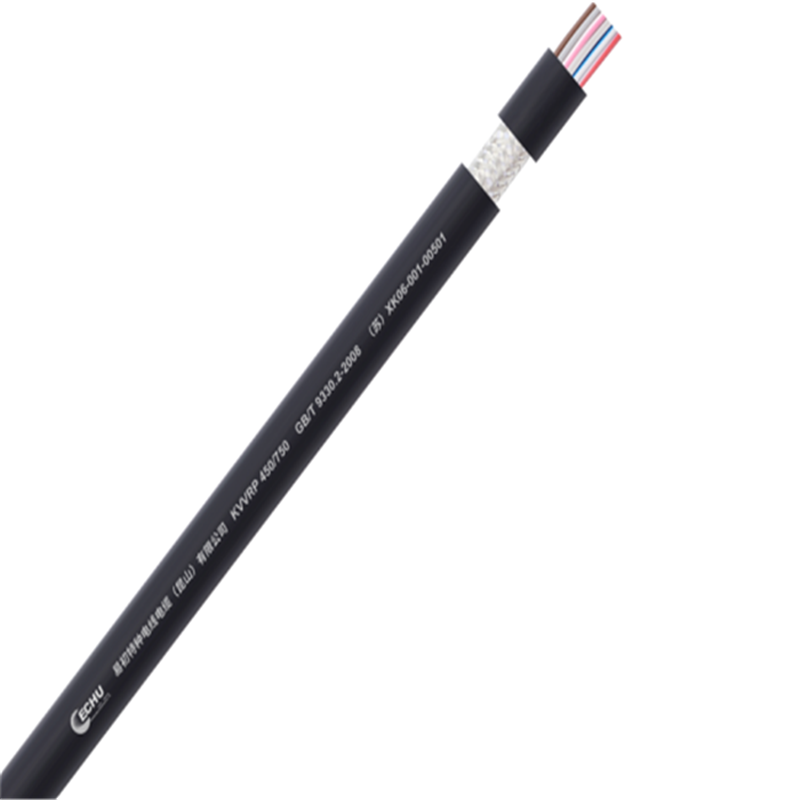

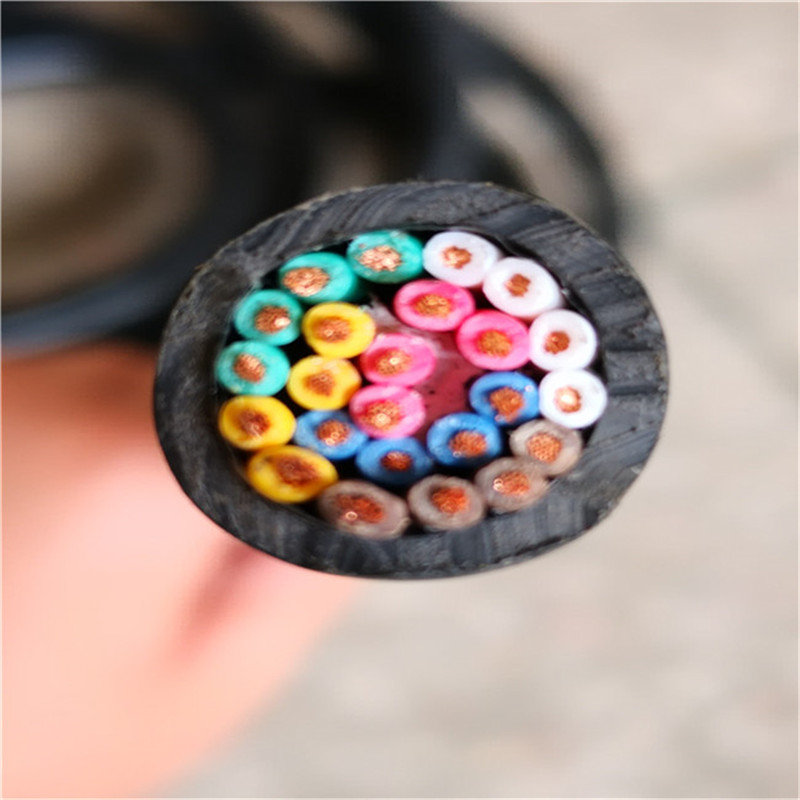

Cable Structure:

Conductor: Single thick copper wire or multiple copper wires

Insulation: PVC/A Type PVC Insulation

Filling Material: Buffered with PP tape or non-woven fabric

Oxygen-Free Copper Wire Braid Shield

Steel Strip Armoring

Sheath: ST1 PVC Sheath

Color: Black (RAL 9005) Grey (RAL 7001)

Rated Voltage: 450/750V

Test Voltage: Insulation Thickness ≤ 0.6mm: 2000V, Insulation Thickness > 0.6mm: 2500V; External Insulation Tested: 3000V

Bend Radius: Fixed Laying: 12xD (Cable Outer Diameter)

Temperature Range:

Mobile installation: -10℃ to +70℃; Fixed installation: -30℃ to +70℃
